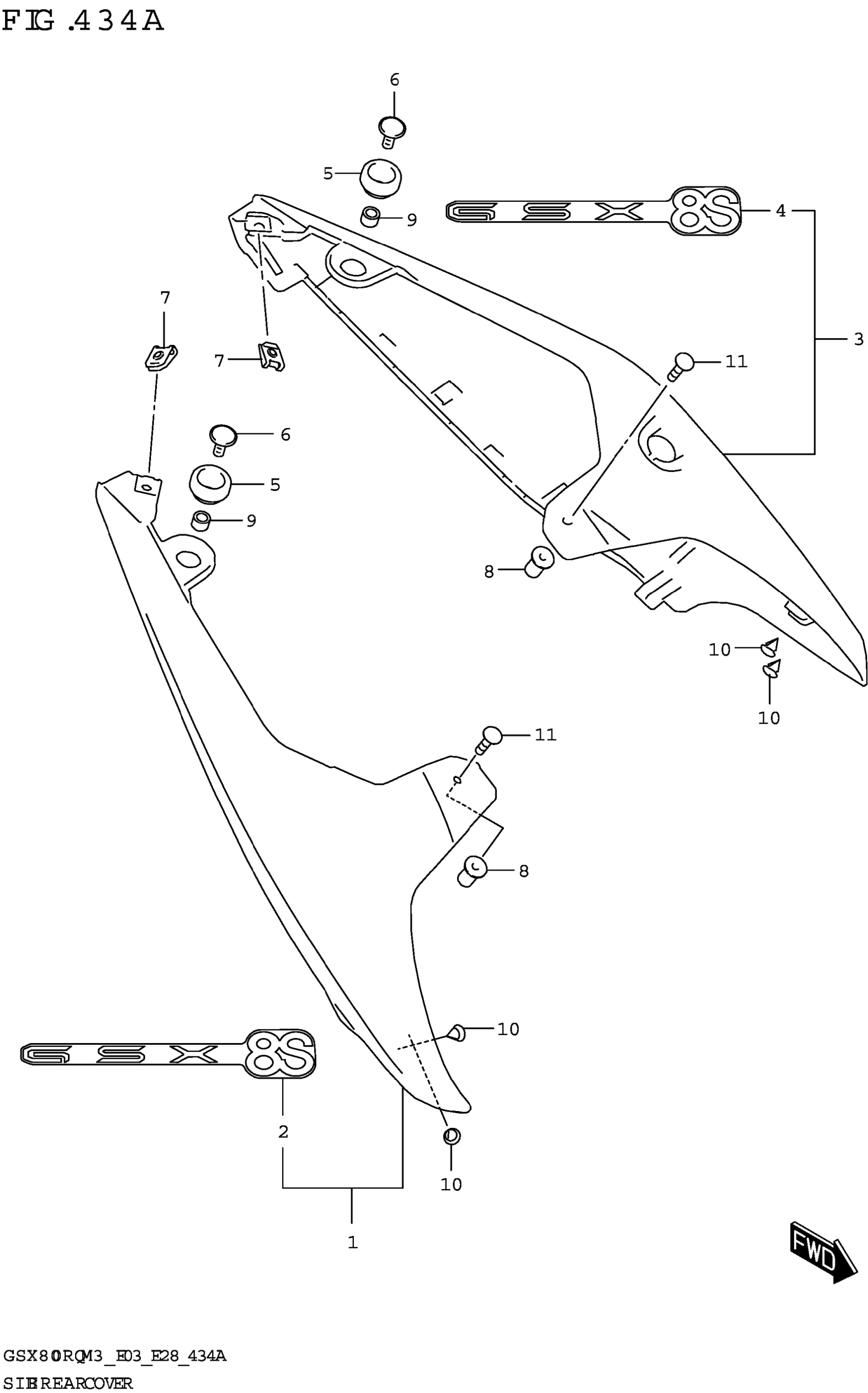

Suzuki GSX800RQM3 (2023) SIDE REAR COVER Diagram

#

Description
Price

1-1

COVER,FRAME,R (BLUE) | BODY COLOR:QU1

47110-25L00-QU1

$105.92

1-2

COVER,FRAME,R | BODY COLOR:QU2

47110-25L00-QU2

$105.92

1-3

COVER,FRAME,R (BLACK) | BODY COLOR:KGL

47110-25L00-YKV

$105.92

2-1

.EMBLEM,FRAME COVER,R | BODY COLOR:QU1

68131-25L00-CK6

$16.65

2-2

.EMBLEM,FRAME COVER,R | BODY COLOR:QU2

68131-25L00-CK7

$16.65

2-3

.EMBLEM,FRAME COVER,R | BODY COLOR:KGL

68131-25L00-CK8

$16.65

3-1

COVER,FRAME UPPER,L (BLUE) | BODY COLOR:QU1

47210-25L00-QU1

$82.98

3-2

COVER,FRAME UPPER,L | BODY COLOR:QU2

47210-25L00-QU2

$82.98

3-3

COVER,FRAME UPPER,L (BLACK) | BODY COLOR:KGL

47210-25L00-YKV

$82.98

4-1

.EMBLEM,FRAME COVER,L | BODY COLOR:QU1

68141-25L00-CK6

$16.65

4-2

.EMBLEM,FRAME COVER,L | BODY COLOR:QU2

68141-25L00-CK7

$16.65

4-3

.EMBLEM,FRAME COVER,L | BODY COLOR:KGL

68141-25L00-CK8

$16.65

5

CUSHION,FRAME COVER CTR

47312-37H20

$2.45

6

SCREW (6X16)

09136-06056

$2.19

7

NUT (M5)

09148-05038

$1.97

8

NUT (M5)

09159-05019

$7.14

9

SPACER (6.5X10X7)

09180-06283

$1.91

10

PLUG (OD:10)

09250-06017

$2.71

11

SCREW

02142-1520A

Unavailable
