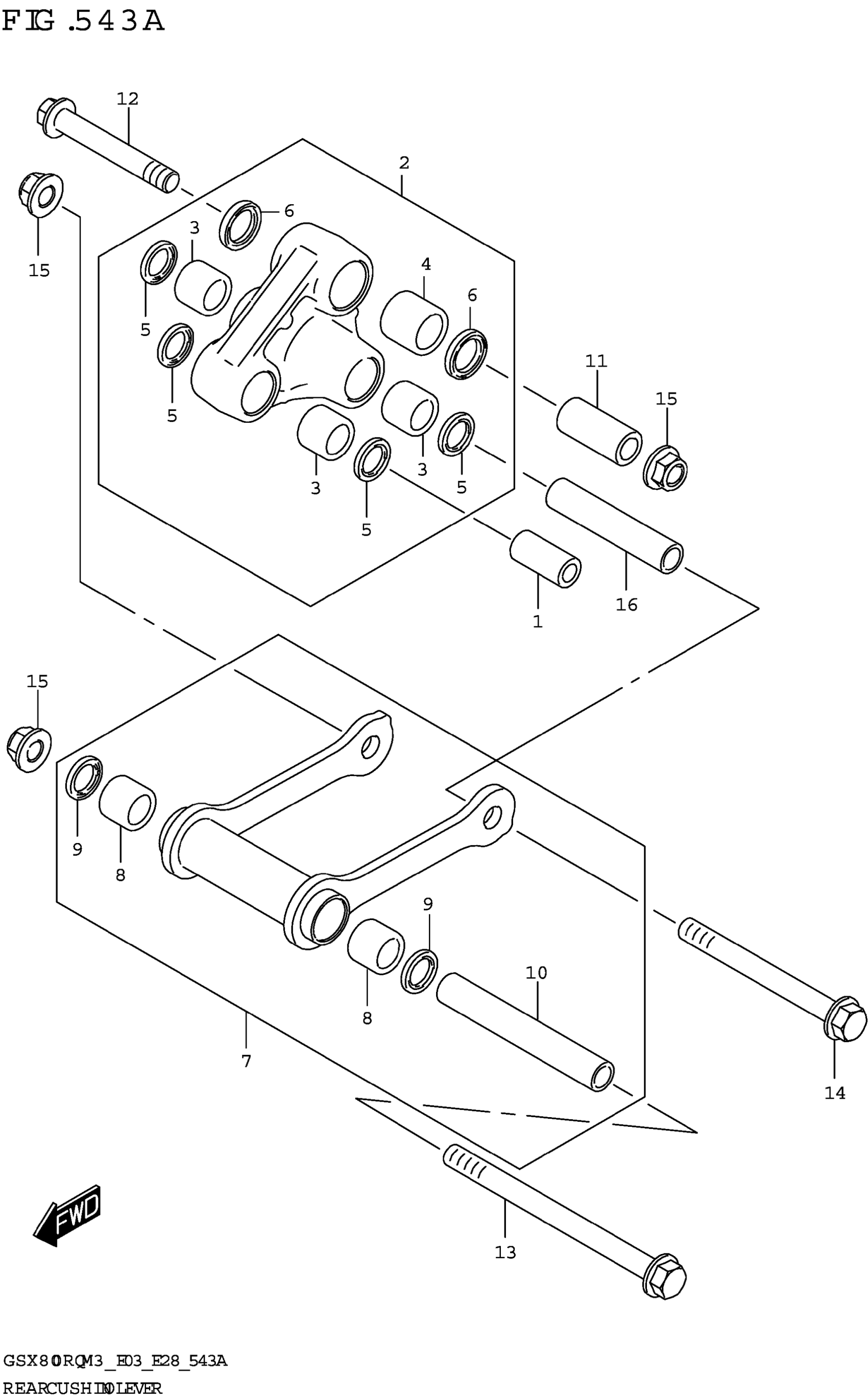

Suzuki GSX800RQM3 (2023) REAR CUSHION LEVER Diagram

#

Description
Price

1

SPACER,RR SHOCK ABS LWR

62317-47H00

$20.45

2

LEVER SET,REAR CUSHION

62600-25830

$219.67

3

.BEARING

09263-17059

$18.07

4

.BEARING (20X27X25)

09263-20053

$27.58

5

.SEAL,OIL (17X24X3)

09285-17007

$3.76

6

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

7

ROD SET,RR CUSHION

62600-25840

$179.00

8

.BEARING

09263-17059

$18.07

9

.SEAL,OIL (17X24X3)

09285-17007

$3.76

10

.SPACER

09180-12163

$20.77

11

SPACER,RR CUSHION LEVER LWR

62646-37F10

$26.93

12

BOLT,RR CUSHION LEVER UPR

62658-37F10

$10.37

13

BOLT (L:155)

09103-12031

Unavailable

14

BOLT (12X115)

09103-12037

$13.53

15

NUT

09159-12056

$7.37

16

SPACER (12X17X85)

09180-12122

$23.05
