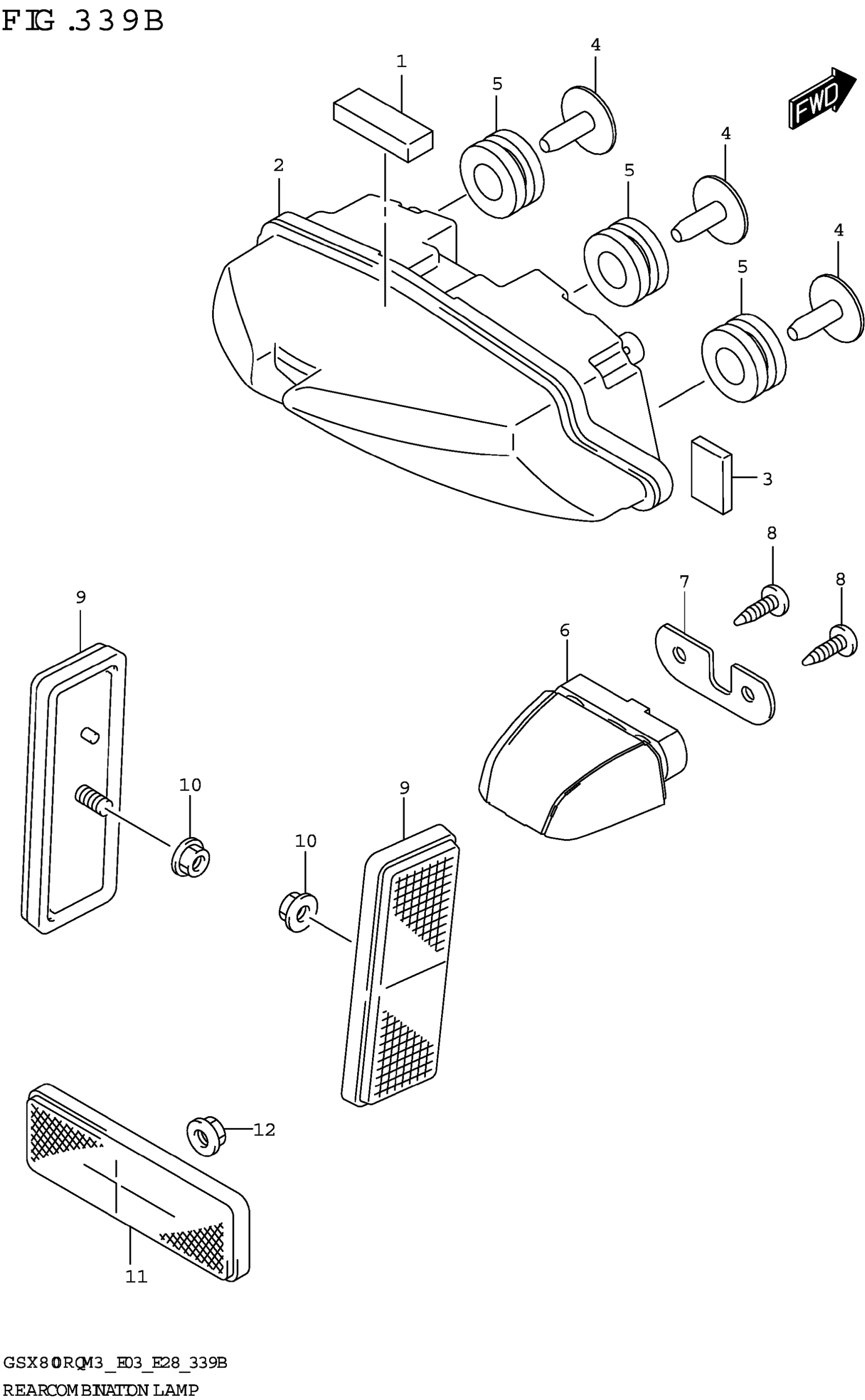

Suzuki GSX800RQM3 (2023) REAR COMBINATION LAMP Diagram

#

Description

Price

1

CUSHION (10X30X6)

33652-47F00

$3.70

2

LAMP ASSY,REAR COMB This part replaces 35710-14JA1.

35710-14JC0

$125.93

3

CUSHION (15X23X4)

47163-10FA0

$4.55

4

SCREW (5X15)

09136-05062

$2.19

5

CUSHION

09320-10073

$2.27

6

LAMP ASSY,LICENSE

35910-48K10

$76.23

7

PLATE,LICENSE LAMP

35926-48K00

$11.48

8

SCREW

03541-0516A

$1.49

9

REFLECTOR ASSY,RR

35970-07F01

$20.88

10

NUT

08319-3105A

$2.27

11

REFLECTOR ASSY,RR

35970-07F01

$20.88

12

NUT

08319-3105A

$2.27
