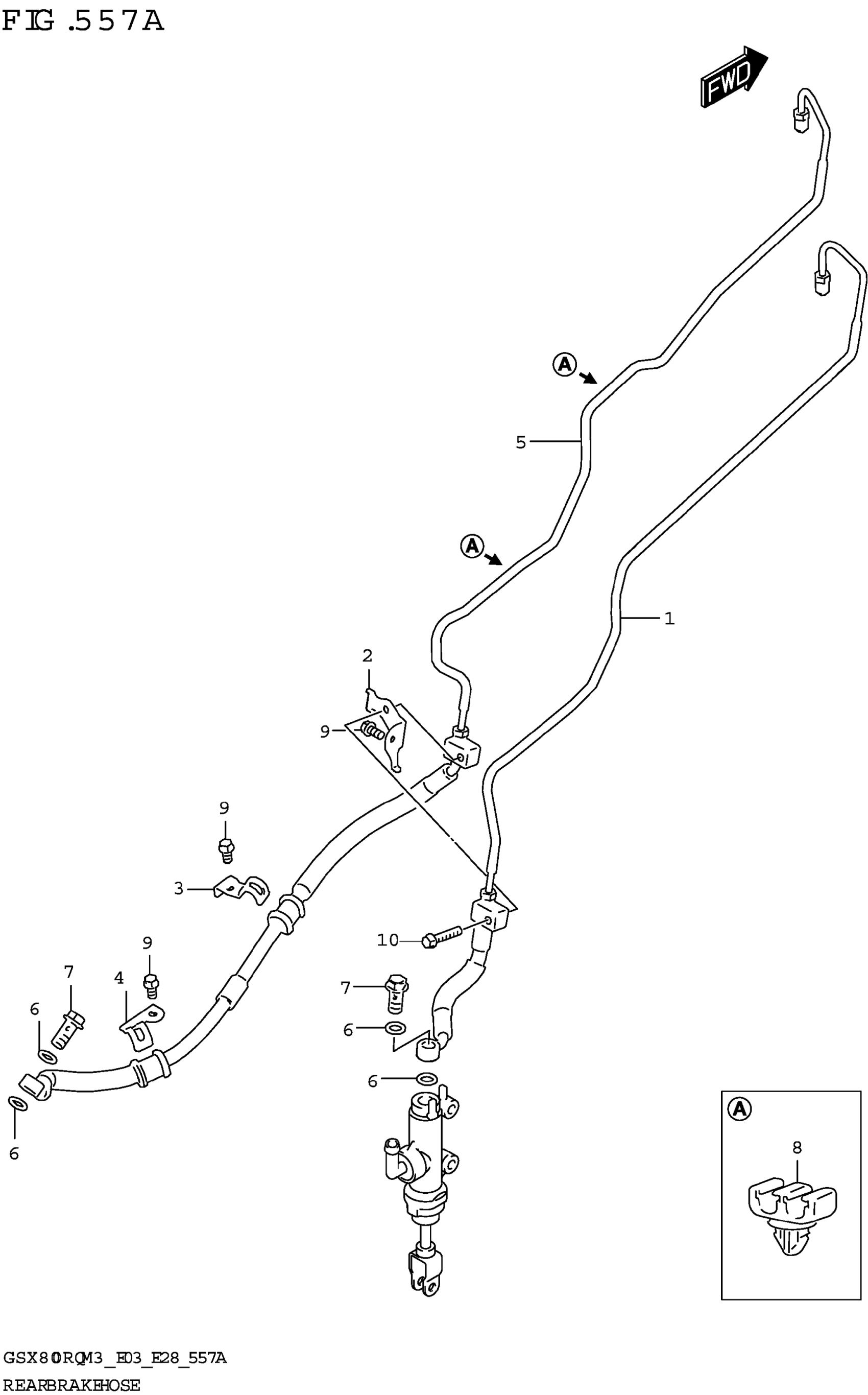

Suzuki GSX800RQM3 (2023) REAR BRAKE HOSE Diagram

#

Description
Price

1

HOSE ASSY,RR BK MASTER TO UNI

69200-25L10

$105.25

2

CLAMP,RR BRAKE HOSE

69261-25L00

$15.25

3

CLAMP,RR BRAKE HOSE NO.1

69271-25L00

$12.02

4

CLAMP,RR BRAKE HOSE NO.2

69275-25L00

$12.18

5

HOSE ASSY,UNIT TO RR BK CLPR

69400-25L00

$130.50

6

WASHER (10X15X1.5)

09161-10009

$1.83

7

UNION (10X1.25X22)

09360-10062

$5.81

8

CLAMP

09403-07344

$2.72

9

BOLT

01547-0612A

$2.01

10

BOLT

01547-0630A

$2.31
