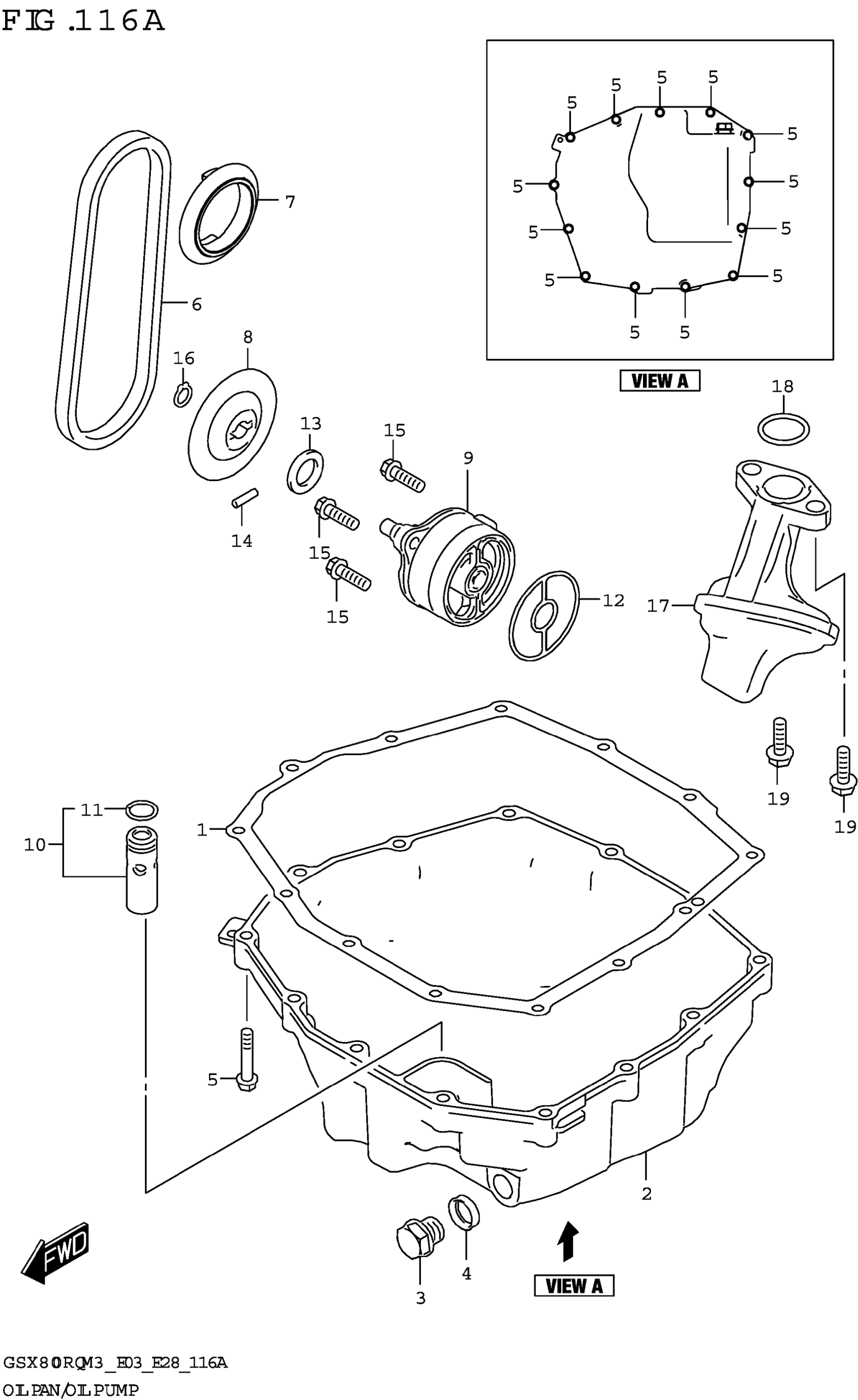

Suzuki GSX800RQM3 (2023) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

.GASKET,OIL PAN

11489-25L00

$18.03

2

PAN,OIL

11511-25L00

$112.65

3

PLUG (14X20) | OIL DRAIN

09247-14036

$5.58

4

GASKET (13.8X18.8X4.8) | OIL DRAIN

09168-14002

$2.83

5

BOLT

01547-0630A

$2.31

6

CHAIN ASSY,OIL PUMP DRIVE

16310-25L00

$18.65

7

SPROCKET,OIL PUMP DRIVE (NT:2 | )

16321-01H00

$86.77

8

SPROCKET,OIL PUMP DRIVEN

16331-25L00

$53.55

9

PUMP ASSY,ENG OIL

16400-25L00

$136.47

10

VALVE ASSY,OIL RELIEF (7K)

16440-24F00

$45.80

11

.O-RING (D:1.9,ID:13)

09280-13004

$2.19

12

O-RING

16491-33E00

$7.57

13

SHIM (10X18X0.5)

09181-10158

$1.97

14

PIN (4X15.8)

09261-04009

$1.50

15

BOLT

01547-0620A

$2.01

16

CIRCLIP

08331-31109

$1.77

17

STRAINER,ENG OIL

16520-25L00

$39.75

18

O-RING

09280-22024

$3.17

19

BOLT (6X20)

01550-0620A

$1.97
