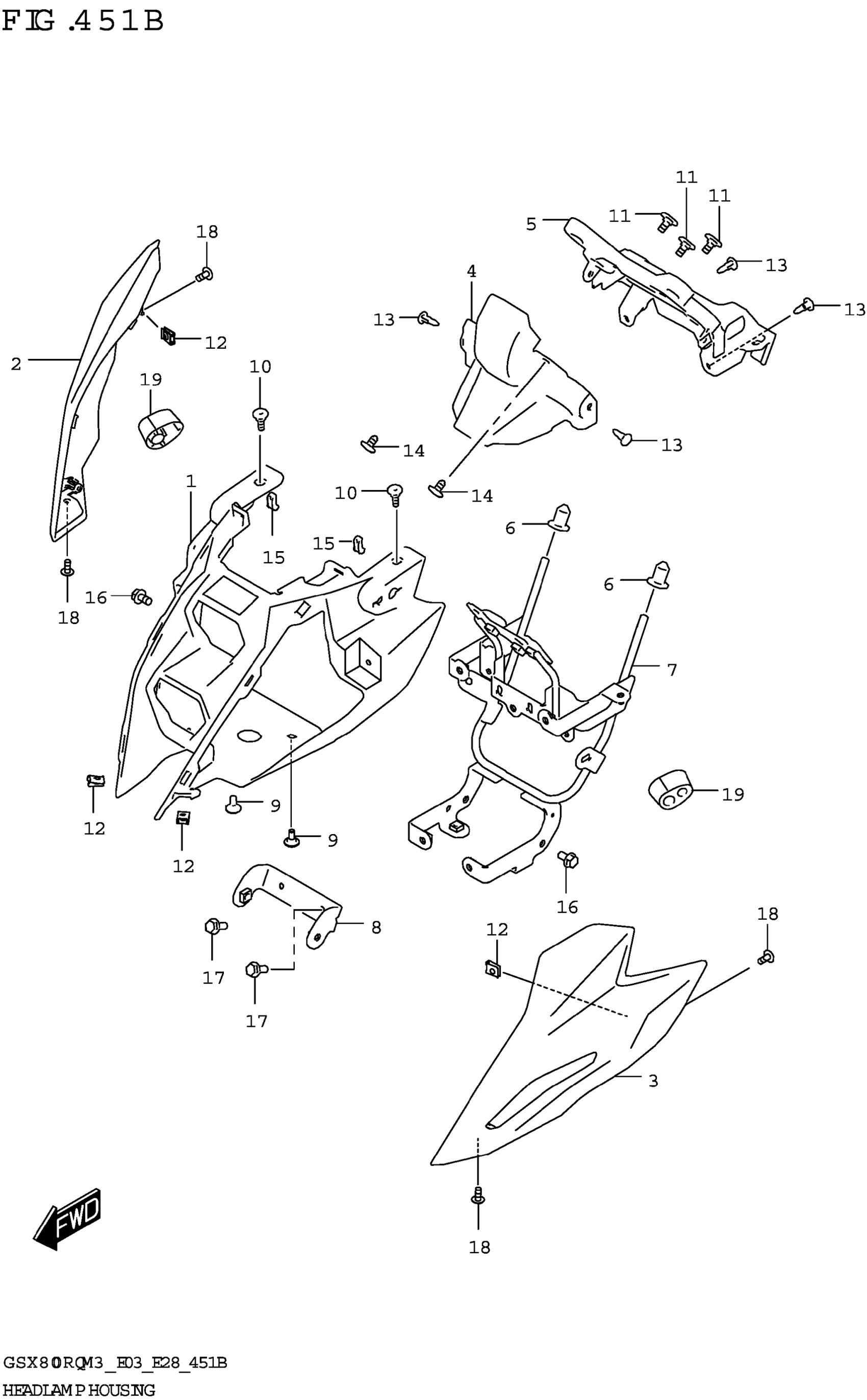

Suzuki GSX800RQM3 (2023) HEADLAMP HOUSING Diagram

#

Description
Price

1

COVER, HEADLAMP

51811-25L00

$65.50

2-1

COVER,HEADLAMP,R (BLUE) | BODY COLOR:QU1

51812-25L00-QU1

$59.08

2-2

COVER,HEADLAMP,R | BODY COLOR:QU2

51812-25L00-QU2

$59.08

2-3

COVER, HEADLAMP RH (BLACK) | BODY COLOR:KGL

51812-25L00-YKV

$59.08

3-1

COVER,HEADLAMP,L (BLUE) | BODY COLOR:QU1

51813-25L00-QU1

$59.08

3-2

COVER,HEADLAMP,L | BODY COLOR:QU2

51813-25L00-QU2

$59.08

3-3

COVER, HEADLAMP LH (BLACK) | BODY COLOR:KGL

51813-25L00-YKV

$59.08

4

COVER, METER FRONT

51823-25L00

$23.42

5

COVER, METER REAR

51825-25L00

$16.53

6

CUSHION, METER BRACE

51831-30H10

$2.94

7

BRACE, HEADLAMP COVER

51850-25L00

$138.58

8

BRACKET, HEADLAMP COVER

51860-25L00

$10.75

9

SCREW (5X13)

09139-05091

$2.03

10

SCREW (5X18)

09139-05094

$4.32

11

SCREW (6X13)

09139-06220

$3.78

12

NUT (M5)

09148-05038

$1.97

13

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

14

CLIP

09409-06328

$3.23

15

CLIP

09409-08012

$2.82

16

BOLT

01550-0612B

$2.39

17

BOLT

01550-0616A

$1.97

18

SCREW

03541-0512A

$1.49

19

EXTENSION, TURNSIGNAL

51814-25L00

$11.20
