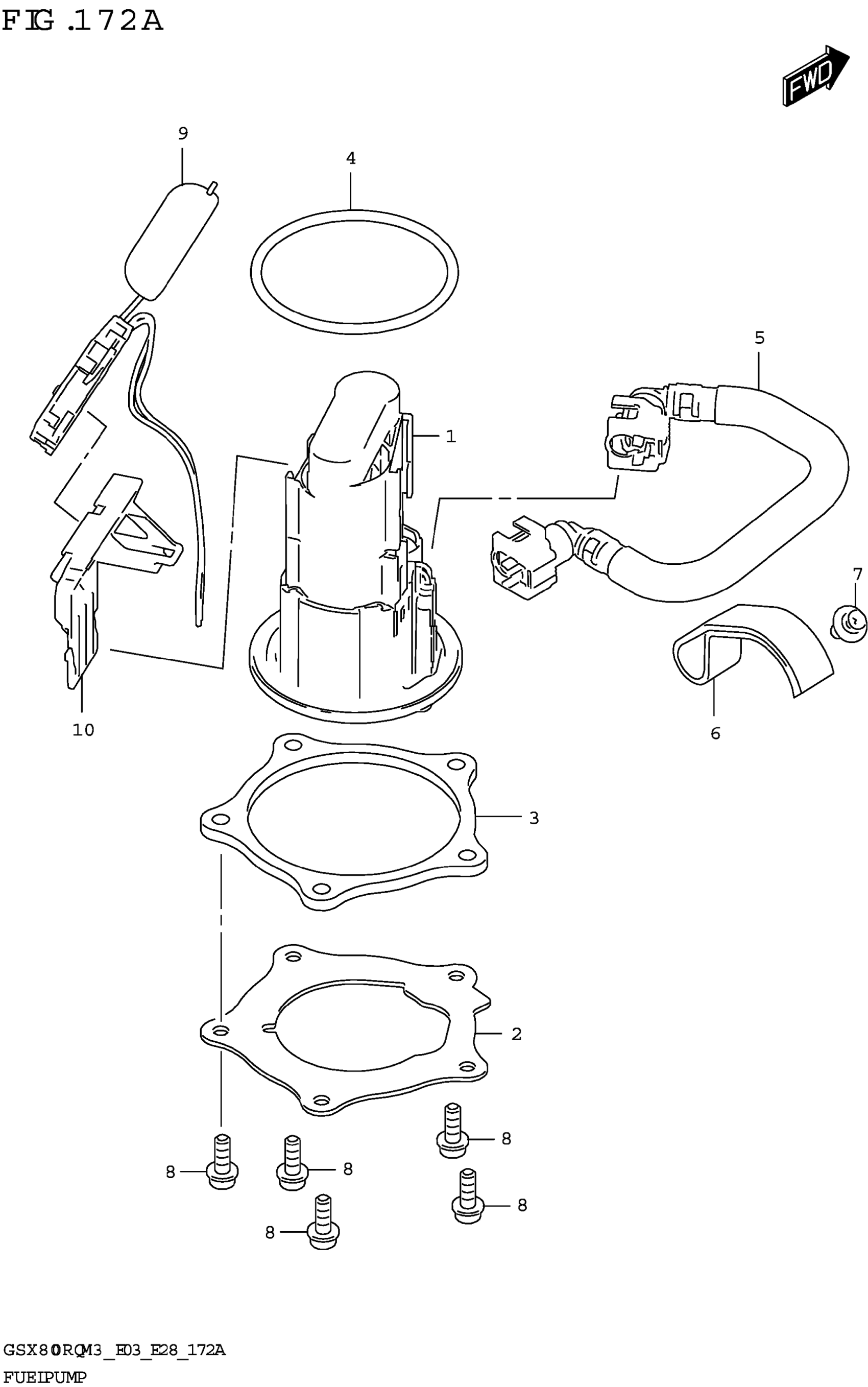

Suzuki GSX800RQM3 (2023) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-25L00

$381.92

2

PLATE,FUEL PUMP OUTER

15121-25L00

$10.33

3

PLATE,FUEL PUMP INNER

15122-17K00

$43.73

4

O-RING,FUEL PUMP

15201-07L00

$21.00

5

HOSE,FUEL

15810-25L00

$150.07

6

CLAMP,FUEL HOSE

15821-25L00

$3.95

7

CLIP

09409-06347

$2.03

8

BOLT

07120-0616A

$2.53

9

GAUGE ASSY,FUEL LEVEL SENDER

34810-25L00

$47.68

10

ATTACHMENT,FUEL LEVEL SENDER

34815-25L00

$3.30
