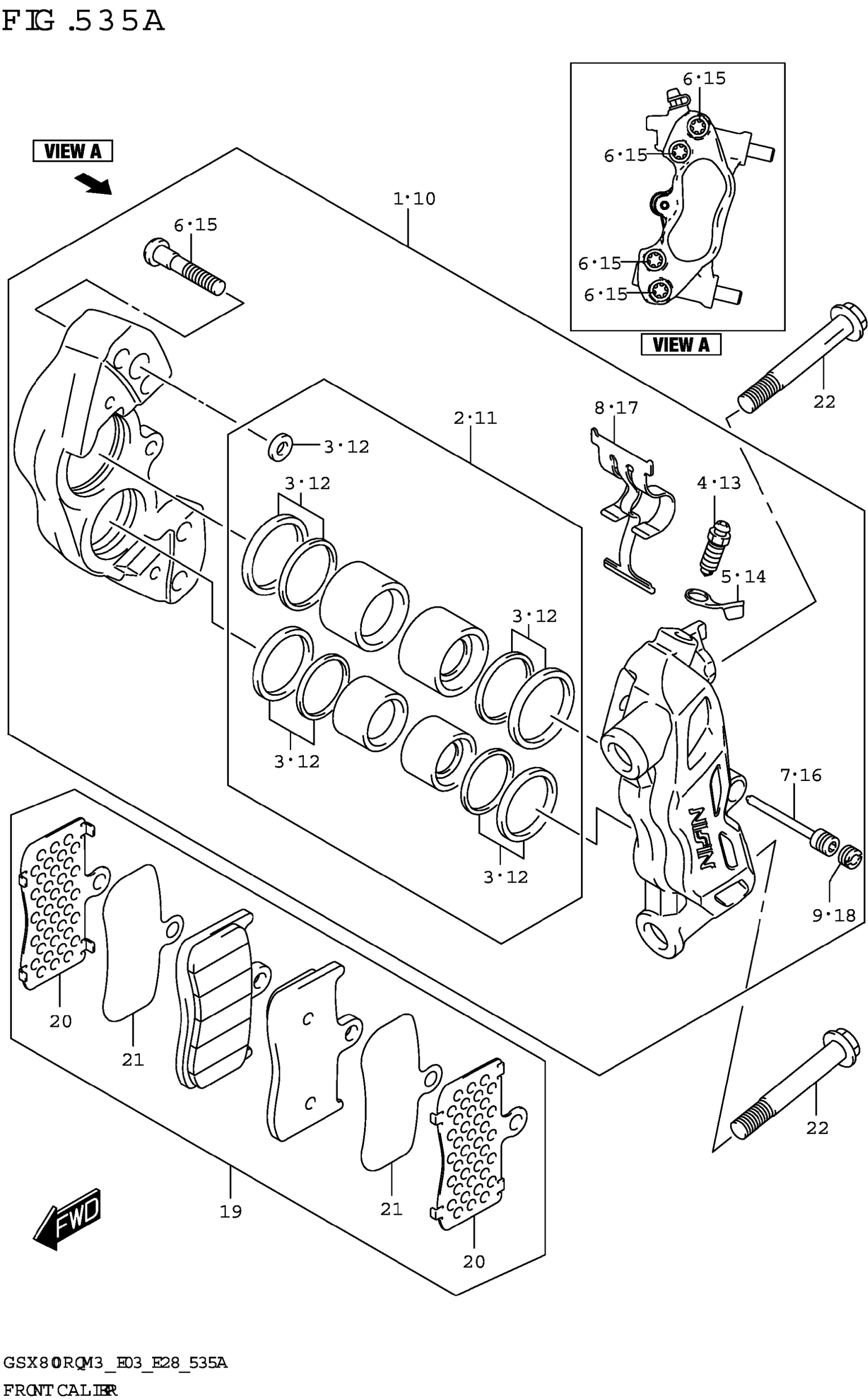

Suzuki GSX800RQM3 (2023) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT,R

59100-23H40-999

$378.02

2

.PISTON SET

59100-23860

$59.35

3

..SEAL SET,PISTON

59100-23810

$79.70

4

.BLEEDER

59121-01A00

$8.73

5

.CAP,BLEEDER

59122-01A00

$4.34

6

.BOLT

59145-23H00

Unavailable

7

.PIN

59345-00B20

$14.20

8

.SPRING,PAD

59151-23H00

Unavailable

9

.PLUG,PIN

59146-21E10

$6.15

10

CALIPER ASSY,FRONT,L

59300-23H40-999

$378.02

11

.PISTON SET

59100-23860

$59.35

12

..SEAL SET,PISTON

59100-23810

$79.70

13

.BLEEDER

59121-01A00

$8.73

14

.CAP,BLEEDER

59122-01A00

$4.34

15

.BOLT

59145-23H00

Unavailable

16

.PIN

59345-00B20

$14.20

17

.SPRING,PAD

59151-23H00

Unavailable

18

.PLUG,PIN

59146-21E10

$6.15

19

PAD SET

59100-23852

$58.27

20

.SHIM

59133-23H00

Unavailable

21

.INSULATOR

69132-23H00

Unavailable

22

BOLT

09106-10096

$4.25
