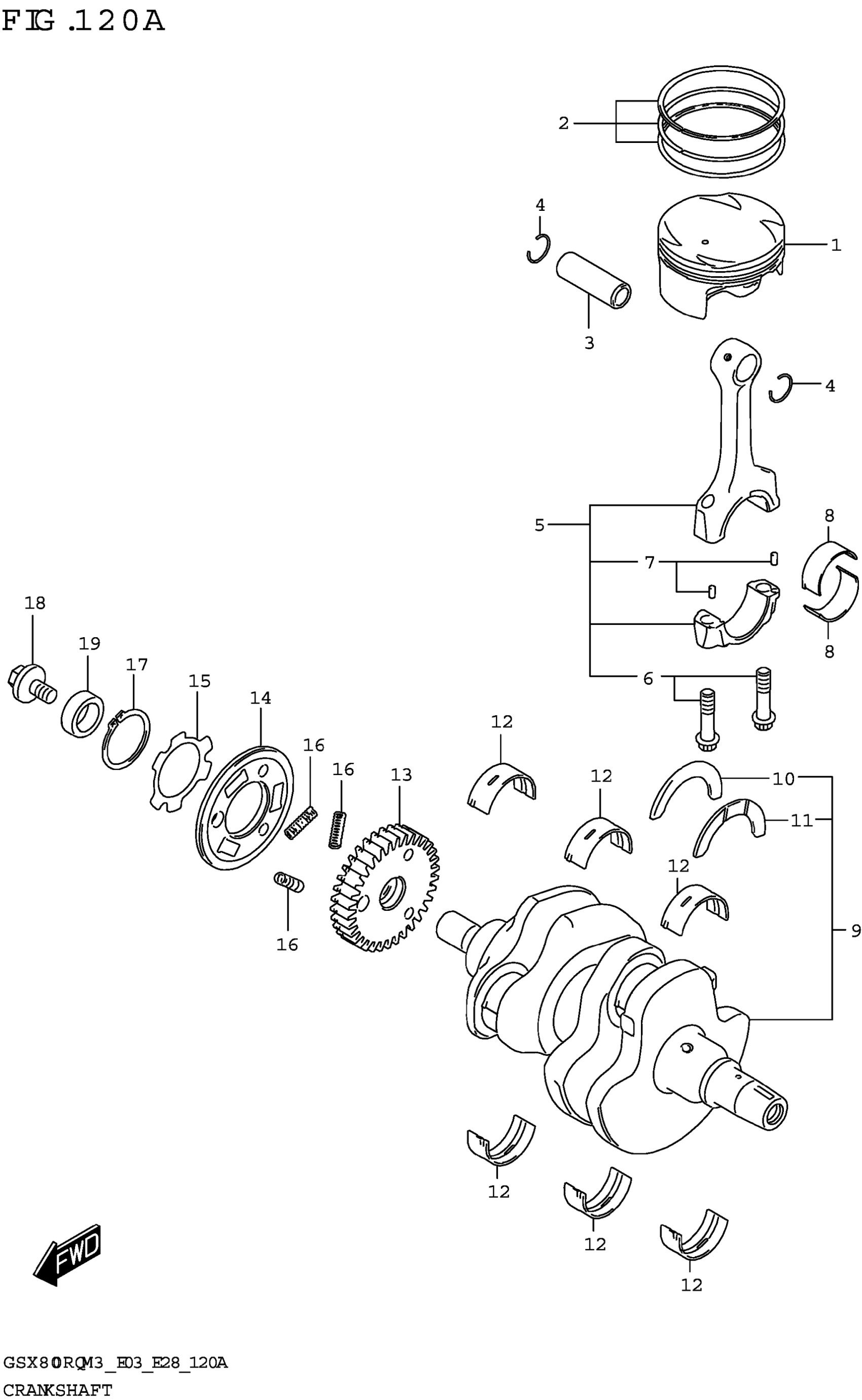

Suzuki GSX800RQM3 (2023) CRANKSHAFT Diagram

#

Description
Price

1

PISTON

12111-25L00-0F0

$152.70

2

RING SET,PISTON

12140-25L00

$60.77

3

PIN,PISTON

12151-07D10

$7.83

4

CIRCLIP (OD:20.5)

09381-18002

$1.67

5

CONNROD ASSY

12160-25L00

$105.52

6

.BOLT,CONNECTING ROD

12163-24F10

$16.45

7

PIN (4X13.8)

04221-04089

$1.49

8-1

BEARING,CRANK PIN (GREEN)

12164-46E10-0A0

$15.26

8-2

BEARING,CRANK PIN (BLACK)

12164-46E10-0B0

$15.55

8-3

BEARING,CRANK PIN (BROWN)

12164-46E10-0C0

$18.28

8-4

BEARING,CRANK PIN (YELLOW)

12164-46E10-0D0

$18.28

9

CRANKSHAFT SET

12000-25810

$973.02

10

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

$10.81

11-1

.BEARING,CRANK THRUST,L (RED)

12228-24F00-0A0

$12.80

11-2

.BEARING,CRANK THRUST,L (BLAC | )

12228-24F00-0B0

$12.72

11-3

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$12.72

11-4

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

$10.81

11-5

.BEARING,CRANK THRUST,L (YELL | W)

12228-24F00-0E0

$13.28

11-6

.BEARING,CRANK THRUST,L (WHIT | )

12228-24F00-0F0

$13.28

12-1

BEARING,CRANKSHAFT (GREEN)

12229-25L00-0A0

$14.35

12-2

BEARING,CRANKSHAFT (BLACK)

12229-25L00-0B0

$14.35

12-3

BEARING,CRANKSHAFT (BROWN)

12229-25L00-0C0

$14.35

12-4

BEARING,CRANKSHAFT (YELLOW)

12229-25L00-0D0

$14.35

12-5

BEARING,CRANKSHAFT (BLUE)

12229-25L00-0E0

$14.35

13

GEAR,PRIMARY DRIVE

21111-25L00

$146.22

14

GEAR,PRIMARY DRIVE SCISSORS

21112-25L00

$67.78

15

WASHER,PRI DRIVE SCISSORS WAV

21114-25L00

$7.65

16

SPRING

09440-07081

$1.93

17

CIRCLIP

08331-31409

$3.58

18

BOLT (10X19)

09103-10338

$8.12

19

SPACER,PRIMARY DRIVE GEAR

21121-25L00

$10.68
