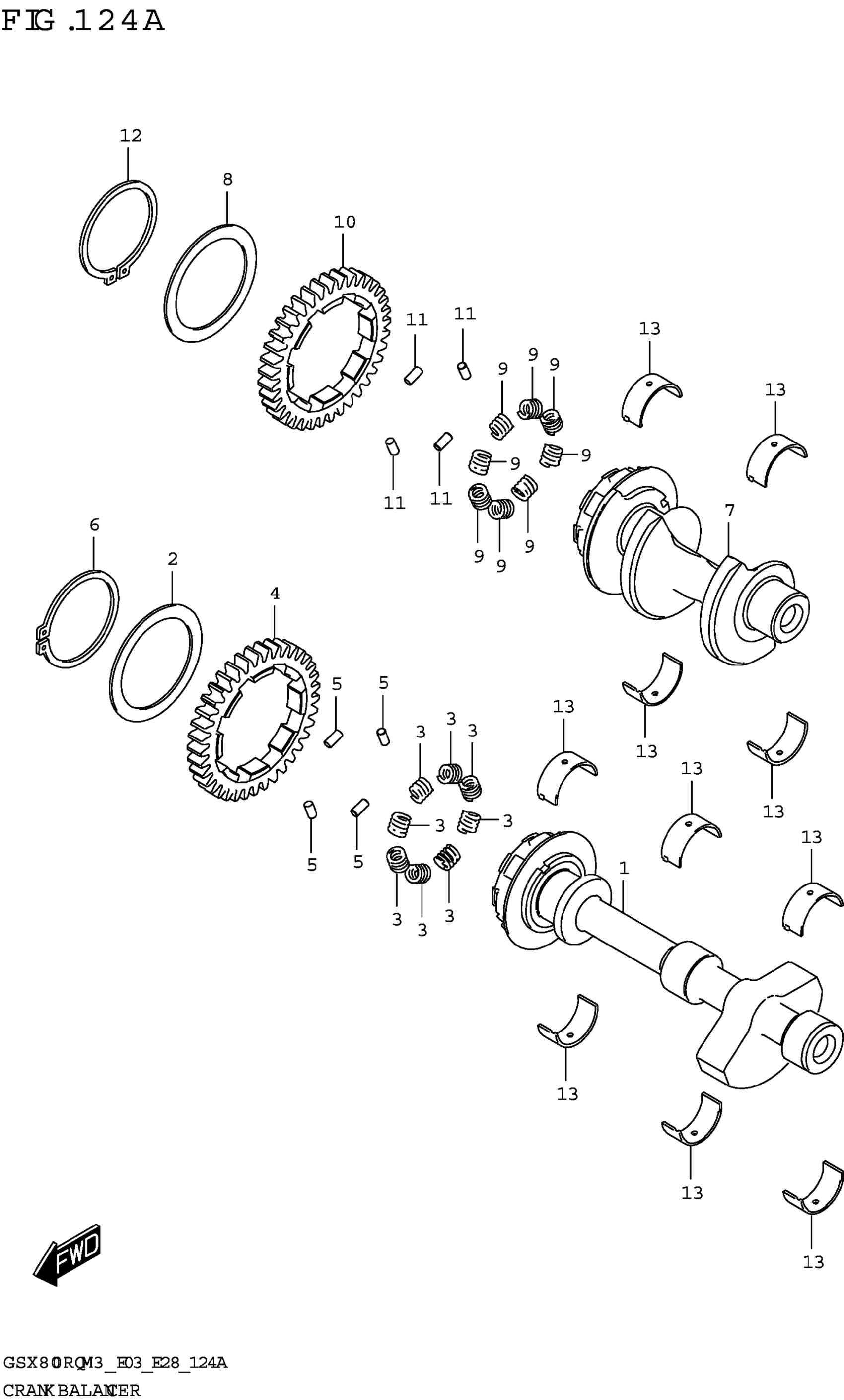

Suzuki GSX800RQM3 (2023) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER,CRANK NO.1

12601-25L00

$326.45

2

WASHER,CRK BAL DRIVEN GR NO.2

12662-25L10

$3.88

3

SPRING,CRANK BAL DRIVEN GEAR

12663-25L00

$1.60

4

GEAR,CRANK BALANCER DRIVEN (N

12666-25L00

$94.03

5

PIN (4.5X9.5)

09202-04017

$3.78

6

CIRCLIP

08331-31529

Unavailable

7

BALANCER,CRANK NO.2

12602-25L00

$265.47

8

WASHER,CRK BAL DRIVEN GR NO.2

12662-25L10

$3.88

9

SPRING,CRANK BAL DRIVEN GEAR

12663-25L00

$1.60

10

GEAR,CRANK BALANCER DRIVEN (N

12666-25L00

$94.03

11

PIN (4.5X9.5)

09202-04017

$3.78

12

CIRCLIP

08331-31529

Unavailable

13-1

BEARING,CRANK BALANCER

12229-25L10-0A0

$12.77

13-2

BEARING,CRANK BALANCER

12229-25L10-0B0

$12.77

13-3

BEARING,CRANK BALANCER

12229-25L10-0C0

$12.77

13-4

BEARING,CRANK BALANCER

12229-25L10-0D0

$12.77
