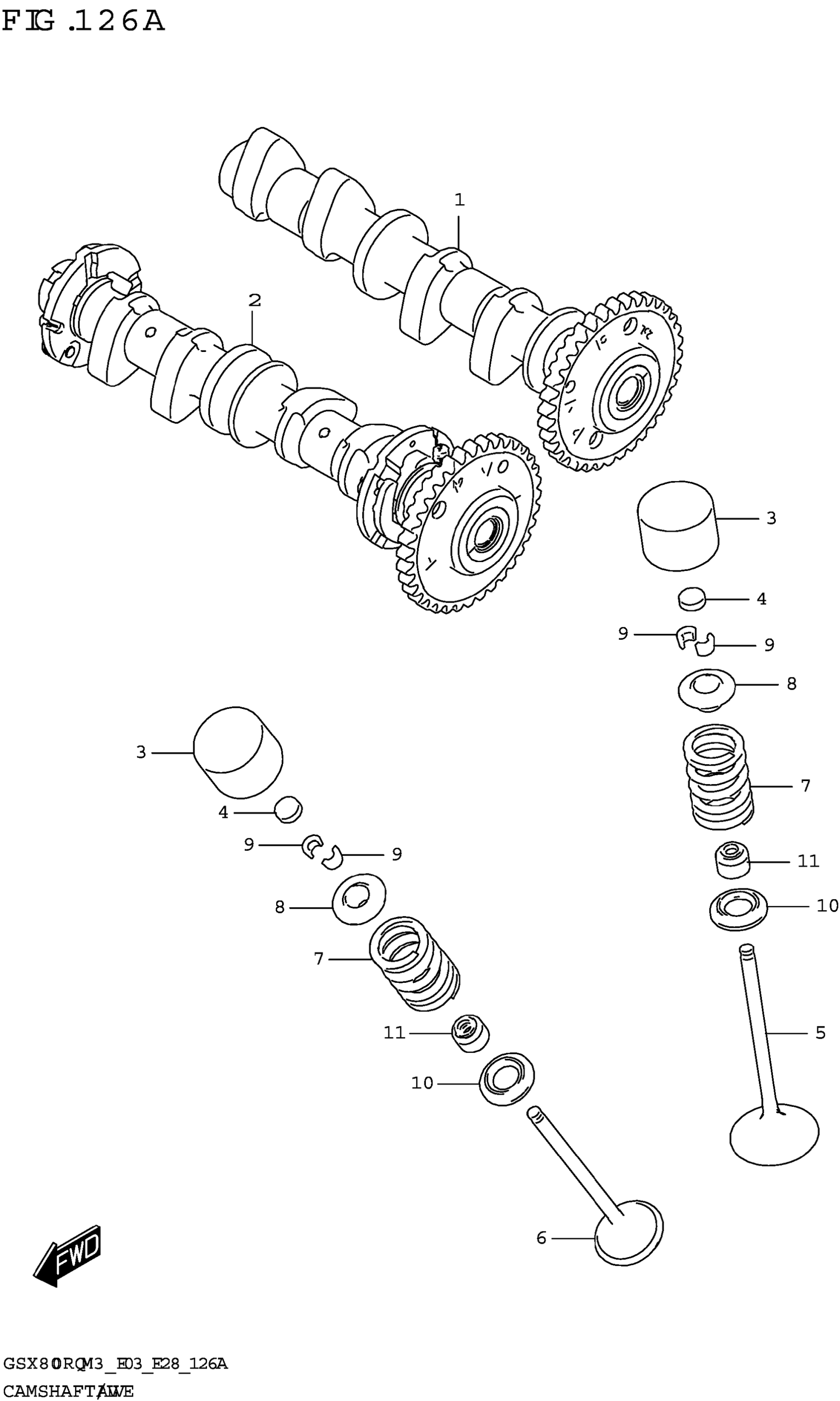

Suzuki GSX800RQM3 (2023) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE

12701-25L00

$230.33

2

CAMSHAFT,EXHAUST

12702-25L01

$351.43

3

TAPPET

12891-02F10

$52.61

4-1

SHIM,TAPPET (T:2.30)

12892-41C00-230

$11.38

4-2

SHIM,TAPPET (T:2.32)

12892-41C00-232

Unavailable

4-3

SHIM,TAPPET (T:2.35)

12892-41C00-235

$11.83

4-4

SHIM,TAPPET (T:2.38)

12892-41C00-238

$11.83

4-5

SHIM,TAPPET (T:2.40)

12892-41C00-240

$11.83

4-6

SHIM,TAPPET (T:2.42)

12892-41C00-242

Unavailable

4-7

SHIM,TAPPET (T:2.45)

12892-41C00-245

$11.83

4-8

SHIM,TAPPET (T:2.48)

12892-41C00-248

Unavailable

4-9

SHIM,TAPPET (T:2.50)

12892-41C00-250

$11.83

4-10

SHIM,TAPPET (T:2.52)

12892-41C00-252

Unavailable

4-11

SHIM,TAPPET (T:2.55)

12892-41C00-255

$11.83

4-12

SHIM,TAPPET (T:2.58)

12892-41C00-258

Unavailable

4-13

SHIM,TAPPET (T:2.60)

12892-41C00-260

$11.38

4-14

SHIM,TAPPET (T:2.62)

12892-41C00-262

Unavailable

4-15

SHIM,TAPPET (T:2.65)

12892-41C00-265

$11.38

4-16

SHIM,TAPPET (T:2.68)

12892-41C00-268

Unavailable

4-17

SHIM,TAPPET (T:2.70)

12892-41C00-270

$11.38

4-18

SHIM,TAPPET (T:2.72)

12892-41C00-272

Unavailable

4-19

SHIM,TAPPET (T:2.75)

12892-41C00-275

$9.69

4-20

SHIM,TAPPET (T:2.78)

12892-41C00-278

Unavailable

4-21

SHIM,TAPPET (T:2.80)

12892-41C00-280

$11.38

4-22

SHIM,TAPPET (T:2.82)

12892-41C00-282

Unavailable

4-23

SHIM,TAPPET (T:2.85)

12892-41C00-285

$11.83

4-24

SHIM,TAPPET (T:2.88)

12892-41C00-288

Unavailable

4-25

SHIM,TAPPET (T:2.90)

12892-41C00-290

$11.38

4-26

SHIM,TAPPET (T:2.92)

12892-41C00-292

Unavailable

4-27

SHIM,TAPPET (T:2.95)

12892-41C00-295

$11.83

4-28

SHIM,TAPPET (T:2.98)

12892-41C00-298

Unavailable

4-29

SHIM,TAPPET (T:3.00)

12892-41C00-300

$11.60

4-30

SHIM,TAPPET (T:3.02)

12892-41C00-302

Unavailable

4-31

SHIM,TAPPET (T:3.05)

12892-41C00-305

$11.83

4-32

SHIM,TAPPET (T:3.08)

12892-41C00-308

Unavailable

4-33

SHIM,TAPPET (T:3.10)

12892-41C00-310

$11.38

4-34

SHIM,TAPPET (T:3.12)

12892-41C00-312

Unavailable

4-35

SHIM,TAPPET (T:3.15)

12892-41C00-315

Unavailable

4-36

SHIM,TAPPET (T:3.18)

12892-41C00-318

Unavailable

4-37

SHIM,TAPPET (T:3.20)

12892-41C00-320

$11.60

4-38

SHIM,TAPPET (T:3.22)

12892-41C00-322

Unavailable

4-39

SHIM,TAPPET (T:3.25)

12892-41C00-325

$11.83

4-40

SHIM,TAPPET (T:3.28)

12892-41C00-328

Unavailable

4-41

SHIM,TAPPET (T:3.30)

12892-41C00-330

$11.83

4-42

SHIM,TAPPET (T:3.32)

12892-41C00-332

Unavailable

4-43

SHIM,TAPPET (T:3.35)

12892-41C00-335

$11.83

4-44

SHIM,TAPPET (T:3.38)

12892-41C00-338

Unavailable

4-45

SHIM,TAPPET (T:3.40)

12892-41C00-340

$11.83

4-46

SHIM,TAPPET (T:3.42)

12892-41C00-342

Unavailable

4-47

SHIM,TAPPET (T:3.45)

12892-41C00-345

Unavailable

4-48

SHIM,TAPPET (T:3.48)

12892-41C00-348

Unavailable

4-49

SHIM,TAPPET (T:3.50)

12892-41C00-350

$11.83

5

VALVE,INTAKE

12911-25L00

$13.10

6

VALVE,EXHAUST

12912-25L00

$19.23

7

SPRING,VALVE

12921-25L00

$7.25

8

RETAINER,VALVE SPRING

12931-41K00

$3.33

9

COTTER,VALVE

12932-27A00

$2.26

10

SEAT,VALVE SPRING

12933-25L00

$4.65

11

SEAL,VALVE STEM

12934-69L00

$4.92

12

SHIM SET,TAPPET (5PCS.EACH) | OPT

12800-41810

$1,138.37

13

.CASE,TAPPET SHIM | OPT,NOT ILLUSTRATED

99000-69471

Unavailable
