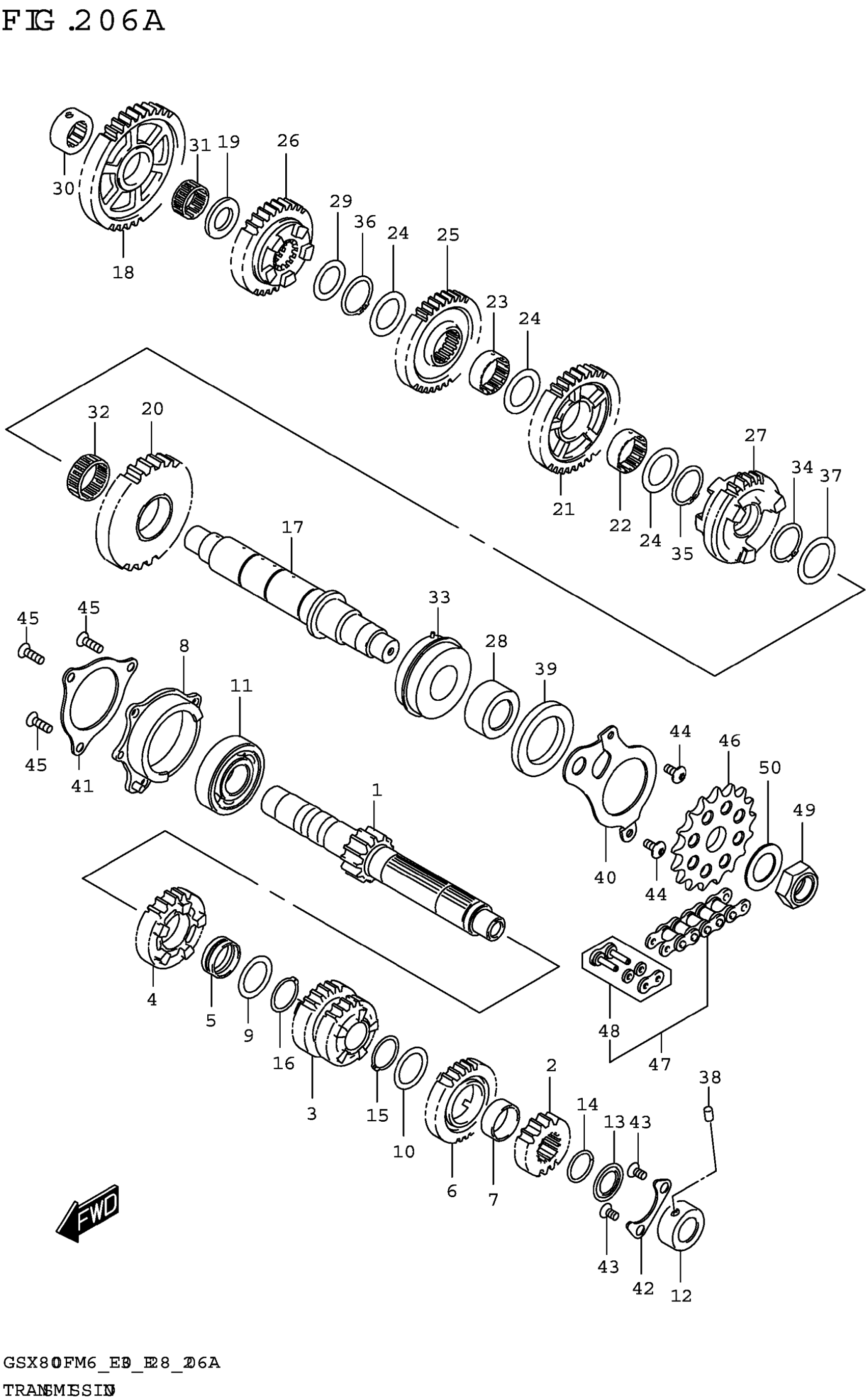

Suzuki GSX800FRQM6 (2026) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,CNTR (NT:14)

24120-25L00

$203.75

2

GEAR,2ND DRIVE (NT:15)

24221-25L00

$72.12

3

GEAR,3RD & 4TH DRIVE (NT:20/2 | )

24231-25L00

$121.13

4

GEAR,5TH DRIVE (NT:26)

24251-25L00

$89.07

5

BUSH,5TH DRIVE GEAR

24252-35F00

$24.72

6

GEAR,6TH DRIVE (NT:28)

24261-25L00

$64.65

7

BUSH,6TH DRIVE GEAR

24262-35F10

$28.70

8

HOUSING,CNTR SHAFT BRG,R

24770-18H10

Unavailable

9

WASHER (27X36X1.0)

09160-27008

$3.68

10

WASHER,LOCK (27X36X1)

09167-27001

$3.63

11

BEARING (25X62X17)

09262-25073

$25.92

12

BEARING

09263-20123

$48.00

13

SEAL,OIL (20X31.2X2.7)

09285-20006

$6.51

14

CIRCLIP

09380-27004

$3.70

15

CIRCLIP

09380-27006

$2.73

16

CIRCLIP

09380-27006

$2.73

17

SHAFT,DRIVE

24131-25L00

$172.12

18

GEAR,1ST DRIVEN (NT:43)

24311-25L00

$78.77

19

SPACER,1ST DRIVEN GEAR,R

24315-25L00

$6.62

20

GEAR,2ND DRIVEN (NT:33)

24321-25L00

$93.33

21

GEAR,3RD DRIVEN (NT:34)

24331-25L00

$87.97

22

BUSH,3RD DRIVEN GEAR

24332-24F20

$36.82

23

BUSH,3RD DRIVEN GEAR

24332-24F20

$36.82

24

WASHER,3RD & 4TH DRIVEN GEAR

24333-47H00

$7.77

25

GEAR,4TH DRIVEN (NT:34)

24341-25L00

$90.67

26

GEAR,5TH DRIVEN (NT:32)

24351-25L00

$84.57

27

GEAR,6TH DRIVEN (NT:31)

24361-25L00

$88.78

28

SPACER,ENGINE SPROCKET

27531-25L00

$23.28

29

SHIM (24X34X1)

09181-24005

$3.55

30

BEARING (20X34X13.5)

09263-20087

$42.65

31

BEARING (24X28X13)

09263-24030

$25.37

32

BEARING (30X35X12.8)

09263-30018

$22.25

33

BEARING (30X62X23.8)

09267-30011

$167.22

34

CIRCLIP

09380-30009

$3.49

35

CIRCLIP

09380-30009

$3.49

36

CIRCLIP

09380-30009

$3.49

37

SHIM (30X40X1)

09181-30167

$3.68

38

PIN (6X10)

09261-06003

$1.49

39

SEAL,OIL (42X62X7)

09283-42018

$36.39

40

RETAINER,CL PUSH ROD OIL SEAL

24741-25L00

$10.43

41

RETAINER,CNTR SHAFT BEARING,R

24751-18H00

Unavailable

42

RETAINER,COUNTER SHAFT BRG,L

24751-25L00

$5.32

43

SCREW (6X12)

09126-06011

$2.03

44

SCREW (6X13)

09139-06153

$2.62

45

SCREW (6X20)

09139-06159

$4.10

46

SPROCKET,ENGINE (NT:17)

27511-20A21

$47.82

47

CHAIN,DRIVE (RK525SMOZ8) | L:120->118

27600-06G40-120

$178.06

48

.JOINT SET,DRIVE CHAIN

27620-06G40

$21.10

49

NUT

09159-20004

$15.67

50

SHIM (25X40X1.5)

09181-25268

$3.16
