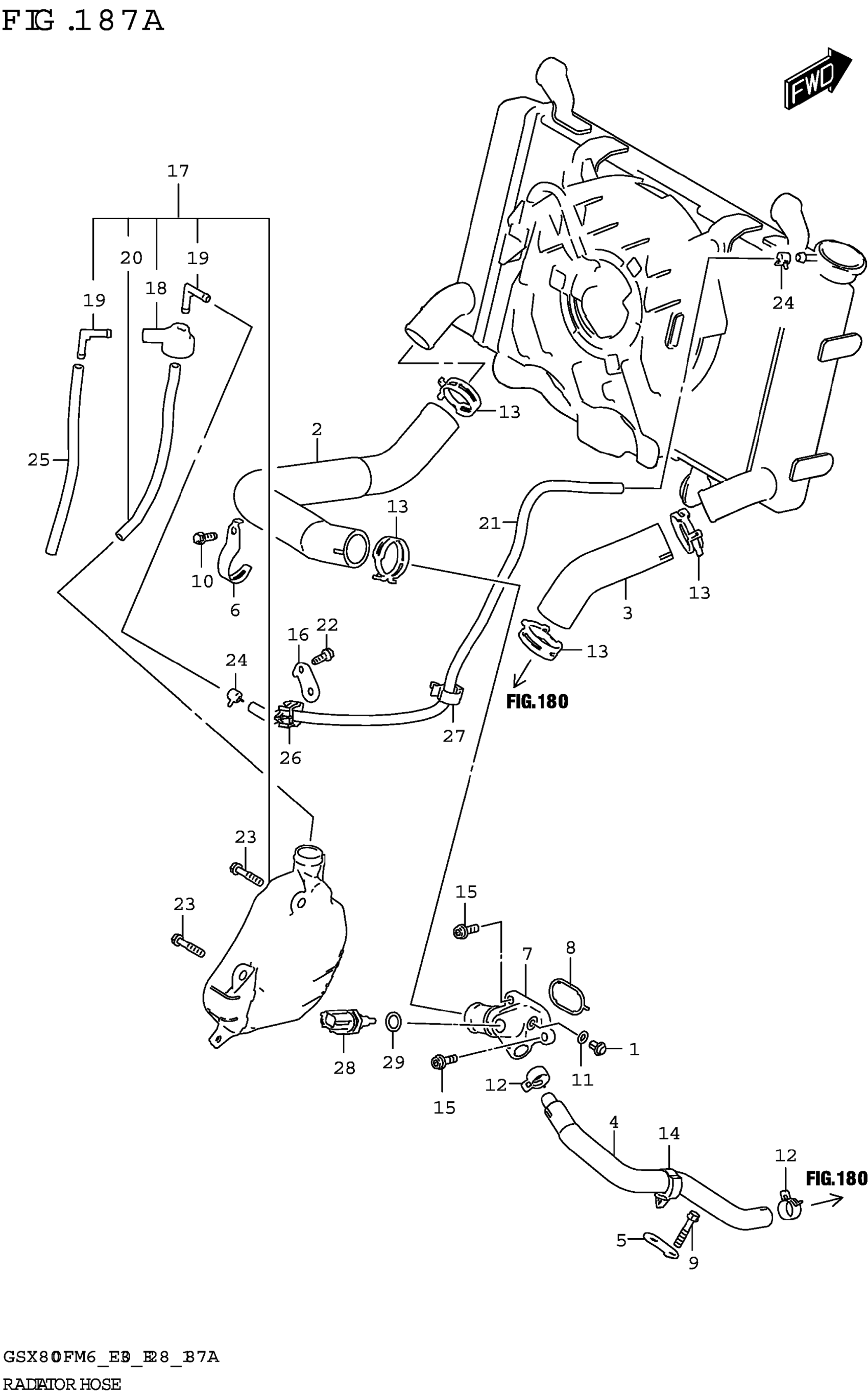

Suzuki GSX800FRQM6 (2026) RADIATOR HOSE Diagram

#

Description
Price

1

UNION BOLT,AIR VENT

17568-50F00

$4.76

2

HOSE,RDTR INLET

17851-25L00

$32.03

3

HOSE,RDTR OUTLET

17852-25L00

$12.65

4

HOSE,WATER BYPASS

17853-25L00

$11.42

5

BRACKET,HOSE CLAMP

17855-25L00

$6.43

6

CLAMP,RDTR INLET HOSE

17856-25L00

$8.97

7

CONNECTOR,WATER OUTLET

17860-25L01

Unavailable

8

.O-RING,WATER CONNECTOR

17861-25L00

$3.53

9

BOLT (6X12)

09103-06525

$1.49

10

BOLT

09135-06034

$2.17

11

GASKET (6.4X11.5X0.84)

09168-06026

$3.10

12

CLIP (ID:16.5)

09401-16407

$2.44

13

CLAMP

09401-29001

$2.92

14

CLAMP

09403-20307

Unavailable

15

BOLT

07120-0620A

$2.72

16

BRACKET,HOSE CLAMP

17855-25L00

$6.43

17

TANK ASSY,RESERVOIR

17910-25L00

$47.25

18

.CAP,WATER RESERVOIR TANK

17931-25L00

$17.65

19

.PIPE,RSVR TANK CAP

17934-25L00

$10.52

20

.HOSE,RSVR TANK CAP

17935-25L00

$14.28

21

HOSE,RSVR TANK INLET

17981-25L00

$21.65

22

BOLT (6X12)

09103-06525

$1.49

23

BOLT

09135-06034

$2.17

24

CLIP (ID:8.6)

09401-08411

$1.78

25

HOSE (5X9X600) | L:600->180

09352-50901-600

$8.06

26

CLAMP

09403-11330

$1.49

27

CLAMP

09403-17403

$2.32

28

SENSOR,TEMP

13650-49X00

$90.19

29

GASKET (12X17X1)

09168-12017

$1.95
