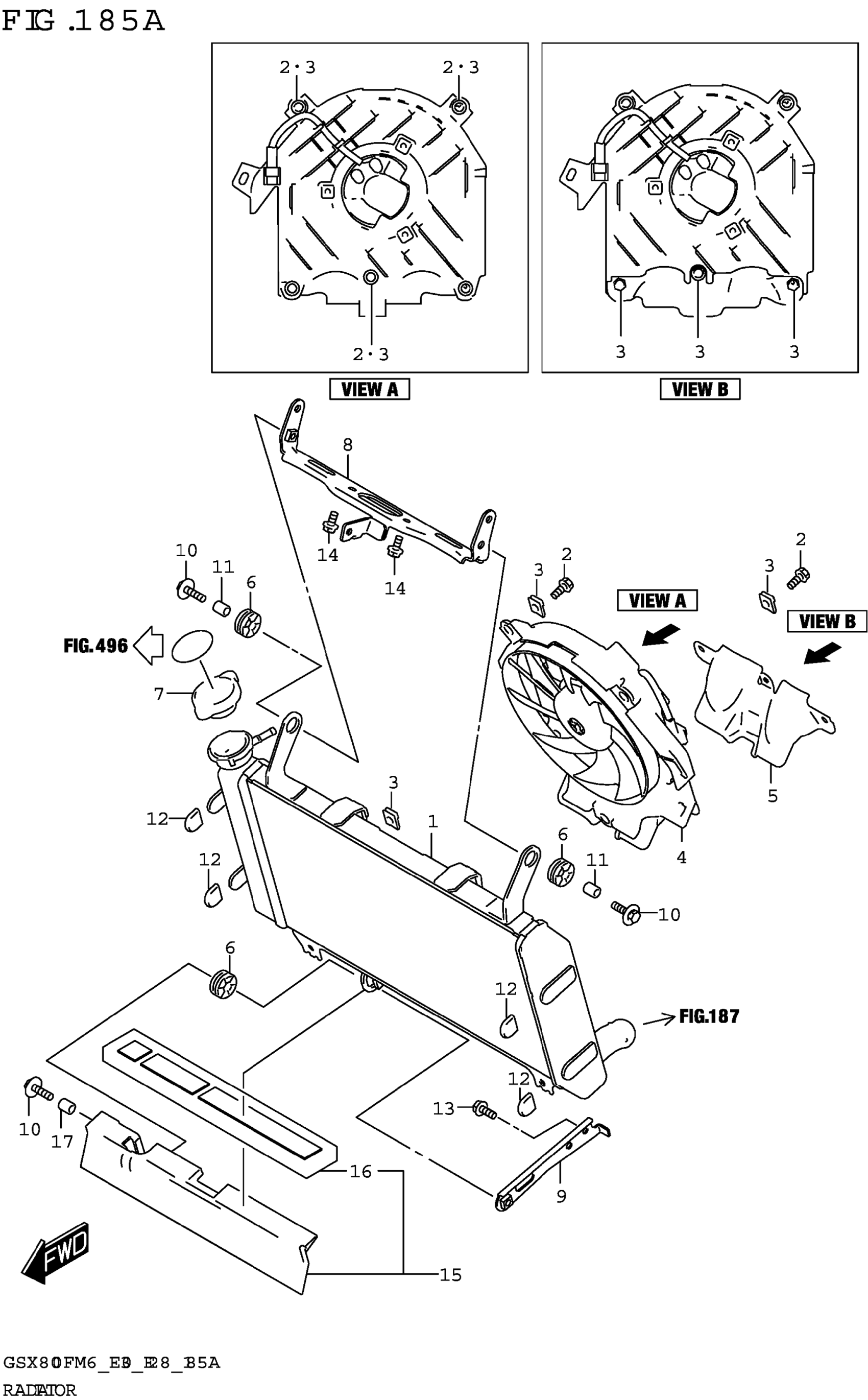

Suzuki GSX800FRQM6 (2026) RADIATOR Diagram

#

Description
Price

1

RADIATOR

17700-25L10

$436.47

2

BOLT,FAN ASSY

17711-14G00

$4.10

3

NUT,RADIATOR FAN

17802-14F00

$3.38

4

FAN ASSY

17810-25L10

Unavailable

5

PLATE

17812-25L00

$18.42

6

CUSHION

09320-10051

$2.99

7

CAP,RADIATOR (1.1)

17730-14G00

$42.83

8

BRACKET,RADIATOR UPPER

17740-25L00

$30.67

9

BRACKET,RADIATOR LOWER

17750-25L00

$9.78

10

BOLT (6X25)

09118-06097

$2.50

11

SPACER (6.5X10X12)

09180-06290

$2.35

12

CUSHION

09329-18001

$1.91

13

BOLT

01550-0616A

$1.97

14

SCREW

02162-0612A

$2.05

15

PLATE ,AIR GUIDE

17780-25L00

Unavailable

16

.TAPE,AIR GUIDE PLATE

17782-25L00

Unavailable

17

SPACER (6.5X10X15)

09180-06311

$2.62
