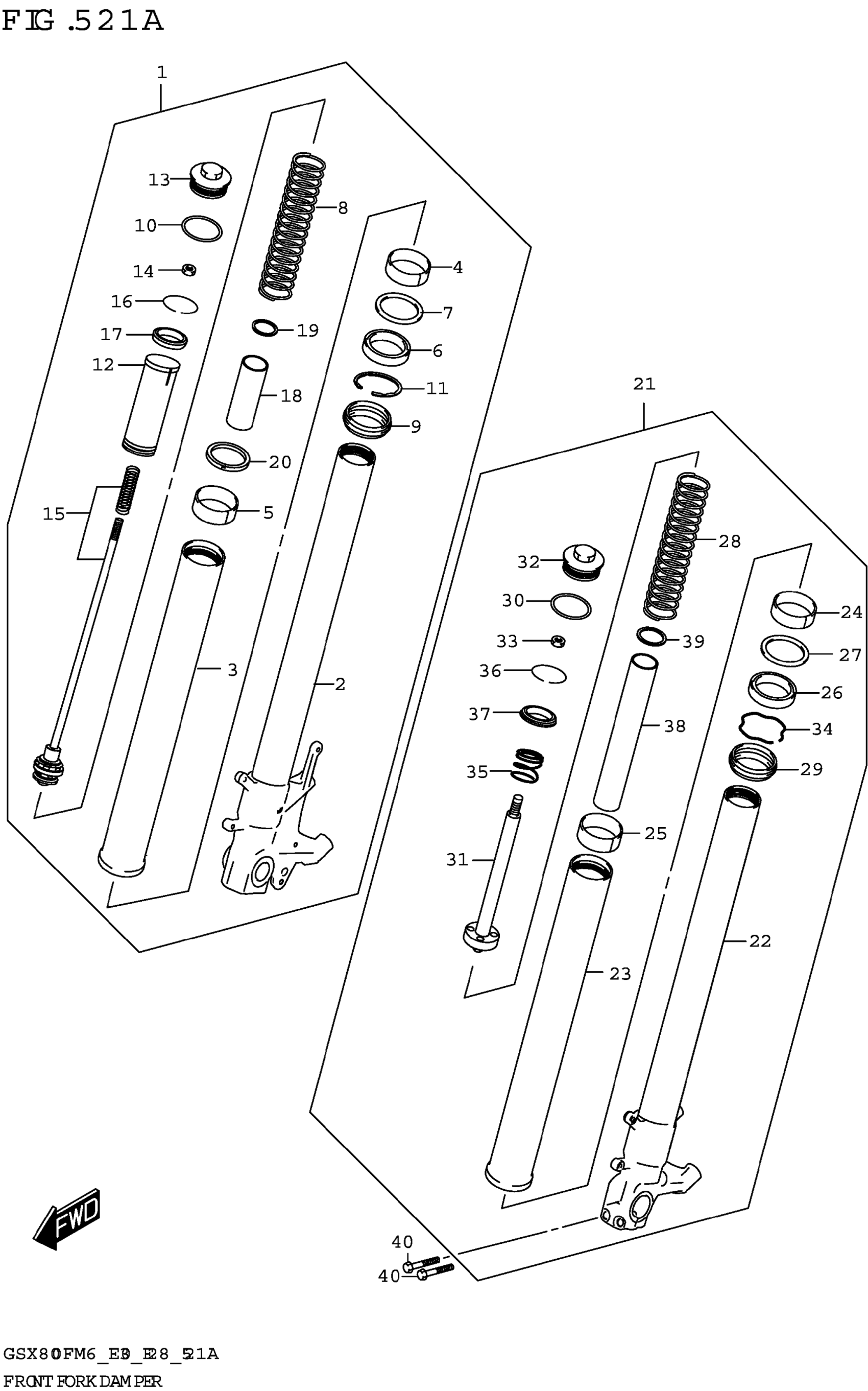

Suzuki GSX800FRQM6 (2026) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,R

51103-25L10

$820.27

2

.TUBE,INNER,R

51110-25L10

$445.72

3

.TUBE,OUTER

51131-25L10

$473.58

4

.BUSH,GUIDE

51152-01H10

$18.25

5

.BUSH,SLIDE

51152-14J00

$14.20

6

.SEAL,OIL

51153-01H10

$26.91

7

.SPACER,SEAL

51168-38B00

$6.49

8

.SPRING,FR

51171-25L10

$44.80

9

.DUST SEAL

51173-15D00

$23.19

10

.O-RING

51187-15D50

$4.55

11

.INTERNAL CIRCLIP

51156-25L20

$3.92

12

.ROD GUIDE CASE

51174-25L10

$68.82

13

.BOLT,FORK

51189-25L10

$82.17

14

.NUT

51827-25L20

$3.97

15

.PISTON ROD

52110-25L10

$127.38

16

.RING STOPPER

51118-25L10

$3.47

17

.STOPPER

51136-25L10

$10.43

18

.COLLAR,SPRING

51175-25L10

$7.08

19

.SPRING JOINT

51178-25L10

$3.37

20

.PISTON RING B

51196-25L10

$5.82

21

DAMPER ASSY,L

51104-25L10

$820.27

22

.TUBE,INNER,L

51210-25L10

$445.72

23

.TUBE,OUTER

51131-25L10

$473.58

24

.BUSH,GUIDE

51152-01H10

$18.25

25

.BUSH,SLIDE

51152-14J00

$14.20

26

.SEAL,OIL

51153-01H10

$26.91

27

.SPACER,SEAL

51168-38B00

$6.49

28

.SPRING,FR

51171-25L10

$44.80

29

.DUST SEAL

51173-15D00

$23.19

30

.O-RING

51187-15D50

$4.55

31

.JOINT ROD

51128-25L10

$82.17

32

.BOLT,FORK

51189-25L10

$82.17

33

.NUT

51827-25L20

$3.97

34

.RING,STOPPER

51556-38B00

$7.22

35

.SPRING,REBOUND

51177-25L10

$7.58

36

.RING STOPPER

51118-25L10

$3.47

37

.STOPPER

51126-25L10

$12.28

38

.COLLAR,SPRING

51176-25L10

$21.38

39

.SPRING JOINT

51178-25L10

$3.37

40

.BOLT,BRACKET UPPER

51328-44HB0

$4.45
