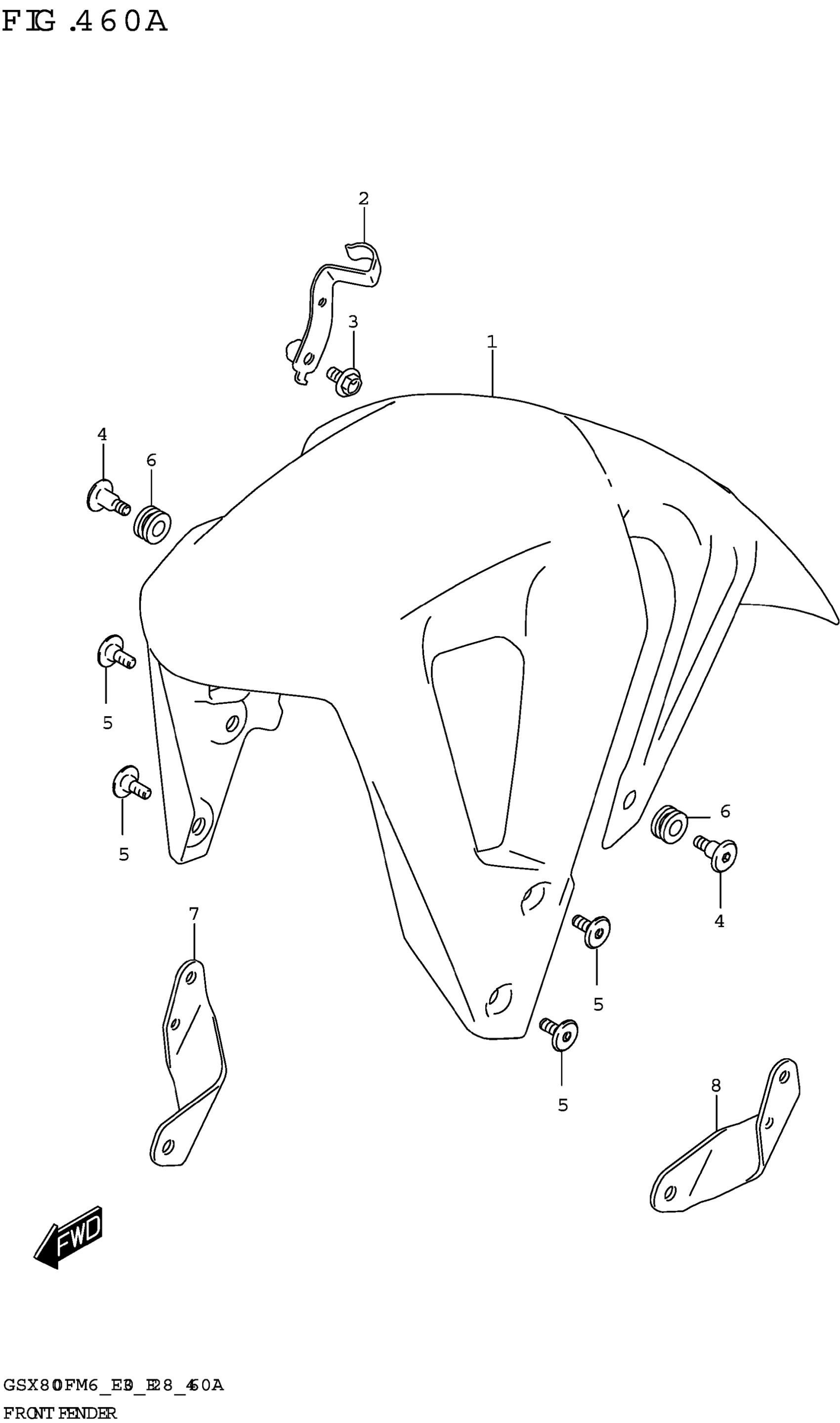

Suzuki GSX800FRQM6 (2026) FRONT FENDER Diagram

#

Description
Price

1-1

FENDER,FRONT (BLACK) | BODY COLOR:YKV

53111-25L00-YKV

$170.41

1-2

FENDER,FRONT (BLUE) | BODY COLOR:YSF

53111-25L00-YSF

$161.00

1-3

FENDER,FRONT (WHITE) | BODY COLOR:QU2

53111-25L00-QU2

$170.41

1-4

FENDER,FRONT (ORANGE) | BODY COLOR:QRE

53111-25L00-QRE

$165.62

2

CLAMP,BRAKE HOSE,R

53120-25L00

$17.17

3

BOLT (6X12)

09111-06106

$2.28

4

SCREW (6X20)

09139-06206

$2.99

5

SCREW (6X16)

09139-06222

$2.80

6

CUSHION (9X18X9.5)

09320-09016

$1.97

7

BRACKET,FRONT SIDE RR,R

47451-25L00

$10.40

8

BRACKET,FRONT SIDE RR,L

47455-25L00

$10.40
