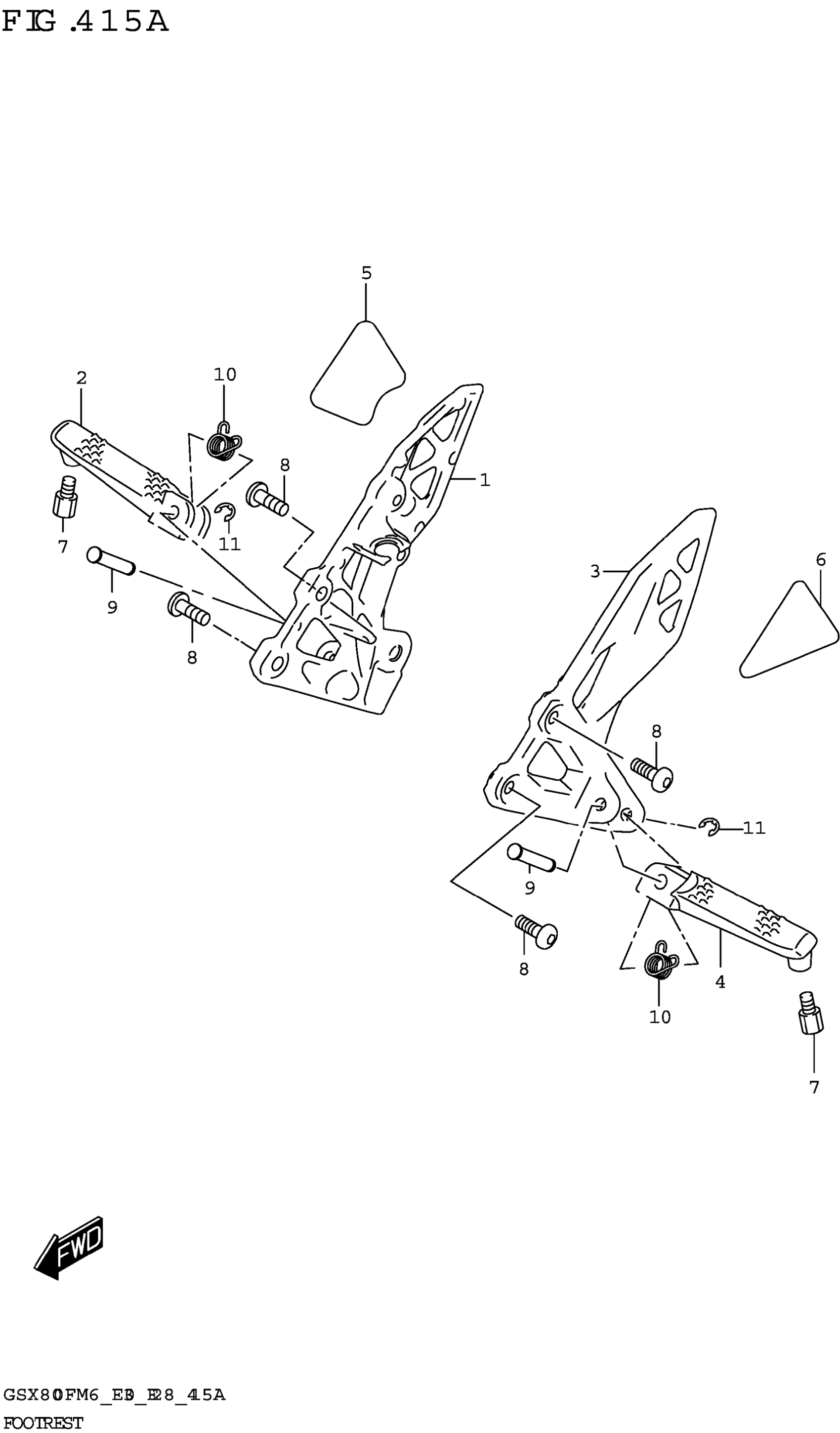

Suzuki GSX800FRQM6 (2026) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST,R

43511-25L00

$117.67

2

BAR,FRONT FOOTREST,R

43516-18K20

$26.66

3

BRACKET,FR FOOTREST,L

43521-25L00

$107.80

4

BAR,FRONT FOOTREST,L

43526-18K20

$26.66

5

TAPE,FR FOOTREST,R

43571-25L00

$11.03

6

TAPE,FR FOOTREST,L

43572-25L00

$11.03

7

.BOLT,BANK SENSOR

43576-07D01

$8.10

8

BOLT (8X23)

09106-08181

$3.26

9

PIN

09208-08019

$2.77

10

SPRING

09448-14046

$3.77

11

E-RING

08332-1106A

$1.43
