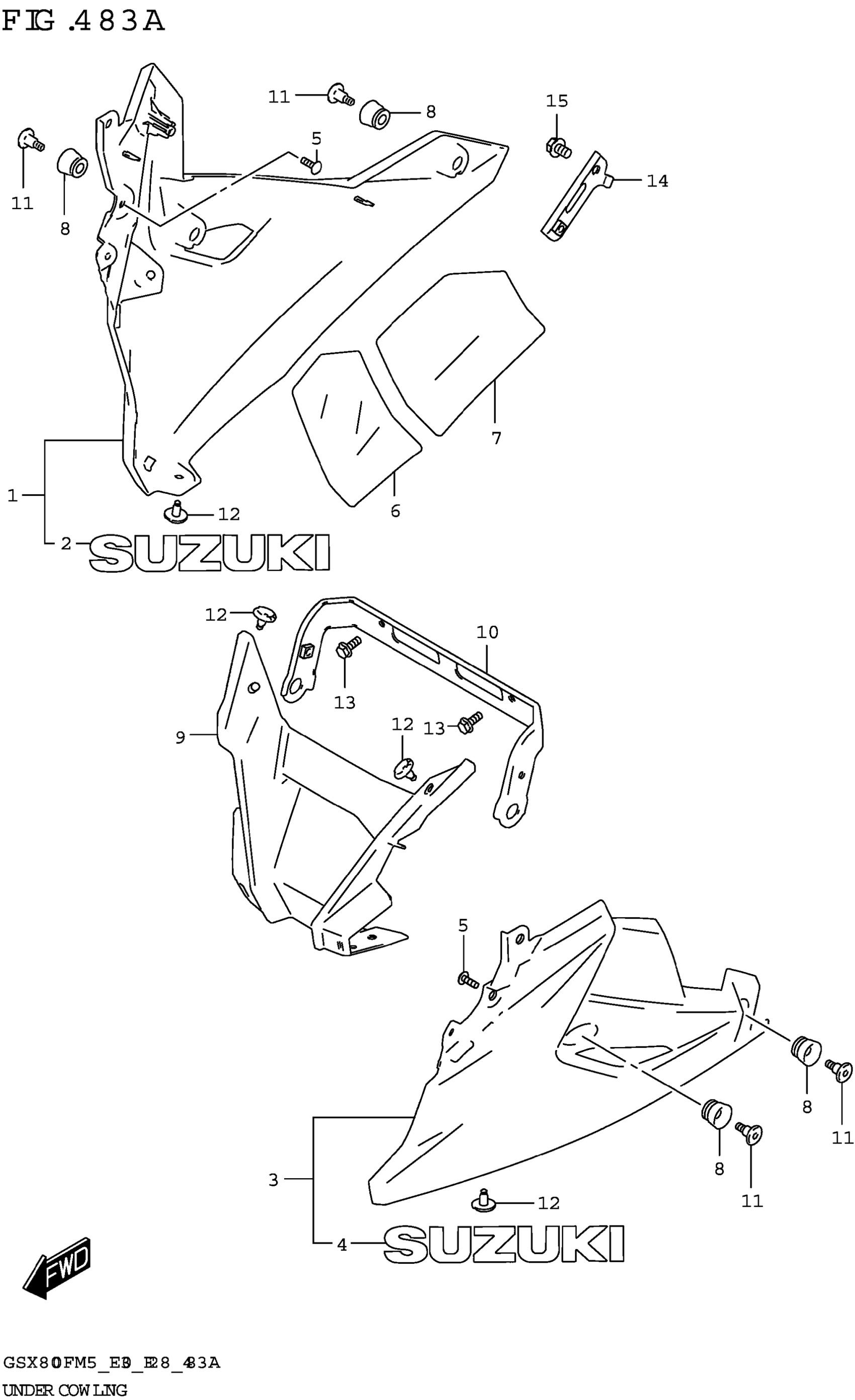

Suzuki GSX800FRQM5 (2025) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING,UNDER,R (BLACK) | BODY COLOR:YKV

94470-25L20-YKV

$222.33

1-2

COWLING,UNDER,R (BLUE) | BODY COLOR:YSF

94470-25L20-YSF

$234.72

1-3

COWLING,UNDER,R (SILVER) | BODY COLOR:QKA

94470-25L20-QKA

$234.72

1-4

COWLING,UNDER,R (YELLOW) | BODY COLOR:QZY

94470-25L20-QZY

$234.72

2-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:YKV,QKA,QZY

68181-04KA0-019

$15.03

2-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:YSF

68181-04KA0-QKA

$15.03

3-1

COWLING,UNDER,L (BLACK) | BODY COLOR:YKV

94480-25L20-YKV

$222.33

3-2

COWLING,UNDER,L (BLUE) | BODY COLOR:YSF

94480-25L20-YSF

$234.72

3-3

COWLING,UNDER,L (SILVER) | BODY COLOR:QKA

94480-25L20-QKA

$234.72

3-4

COWLING,UNDER,L (YELLOW) | BODY COLOR:QZY

94480-25L20-QZY

$234.72

4-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:YKV,QKA,QZY

68181-04KA0-019

$15.03

4-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:YSF

68181-04KA0-QKA

$15.03

5

SCREW

03541-0516B

$1.77

6

SHIELD,UNDER COWL HEAT,R NO.1

94475-25L00

$6.03

7

SHIELD,UNDER COWL HEAT,R NO.2

94477-25L00

$6.43

8

CUSHION,UNDER COWLING,L

94479-15H00

$4.22

9

COWLING,UNDER CTR

94491-25L00

$54.90

10

BRACKET,UNDER COWL FR

94520-25L00

$40.78

11

SCREW (6X20)

09139-06206

$2.99

12

CLIP

94479-35F00

$5.14

13

BOLT (6X12)

09103-06285

$1.97

14

BRACKET,UNDER COWL,R

94530-25L00

$10.27

15

BOLT

01550-0812B

$2.73
