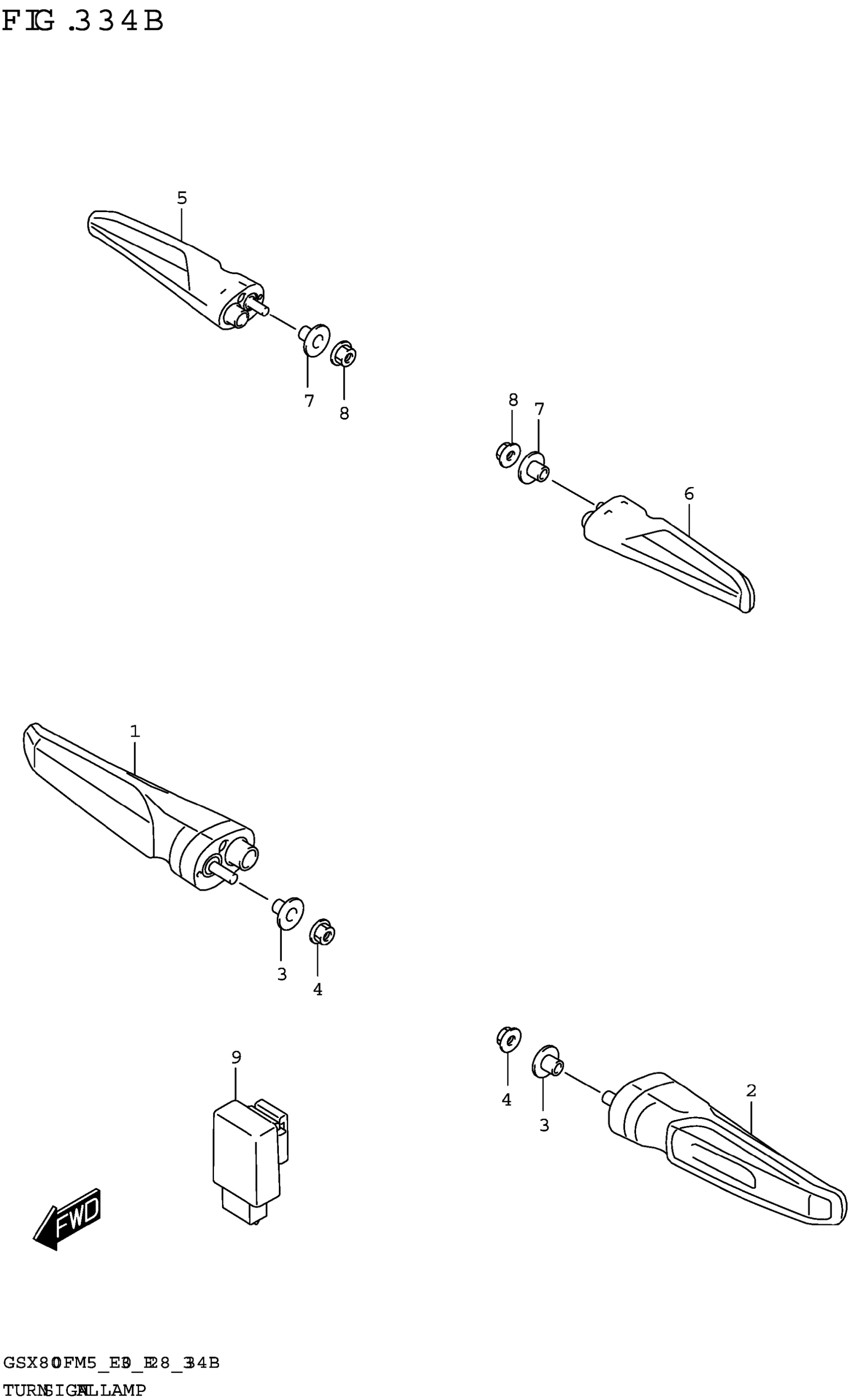

Suzuki GSX800FRQM5 (2025) TURNSIGNAL LAMP Diagram

#

Description

Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-06LG0

$96.85

2

LAMP ASSY,FRONT TURNSIGNAL,L This part replaces 35602-06LG0.

35602-06LG1

$92.82

3

WASHER

09169-06100

$1.53

4

NUT (6X12)

08316-1006A

$2.25

5

LAMP ASSY,REAR TURNSIGNAL,R

35603-06LF0

$129.30

6

LAMP ASSY,REAR TURNSIGNAL,L

35604-06LF0

$139.90

7

WASHER

09169-06100

$1.53

8

NUT (6X12)

08316-1006A

$2.25

9

RELAY ASSY,TURNSIGNAL

38610-06L01

$81.55
