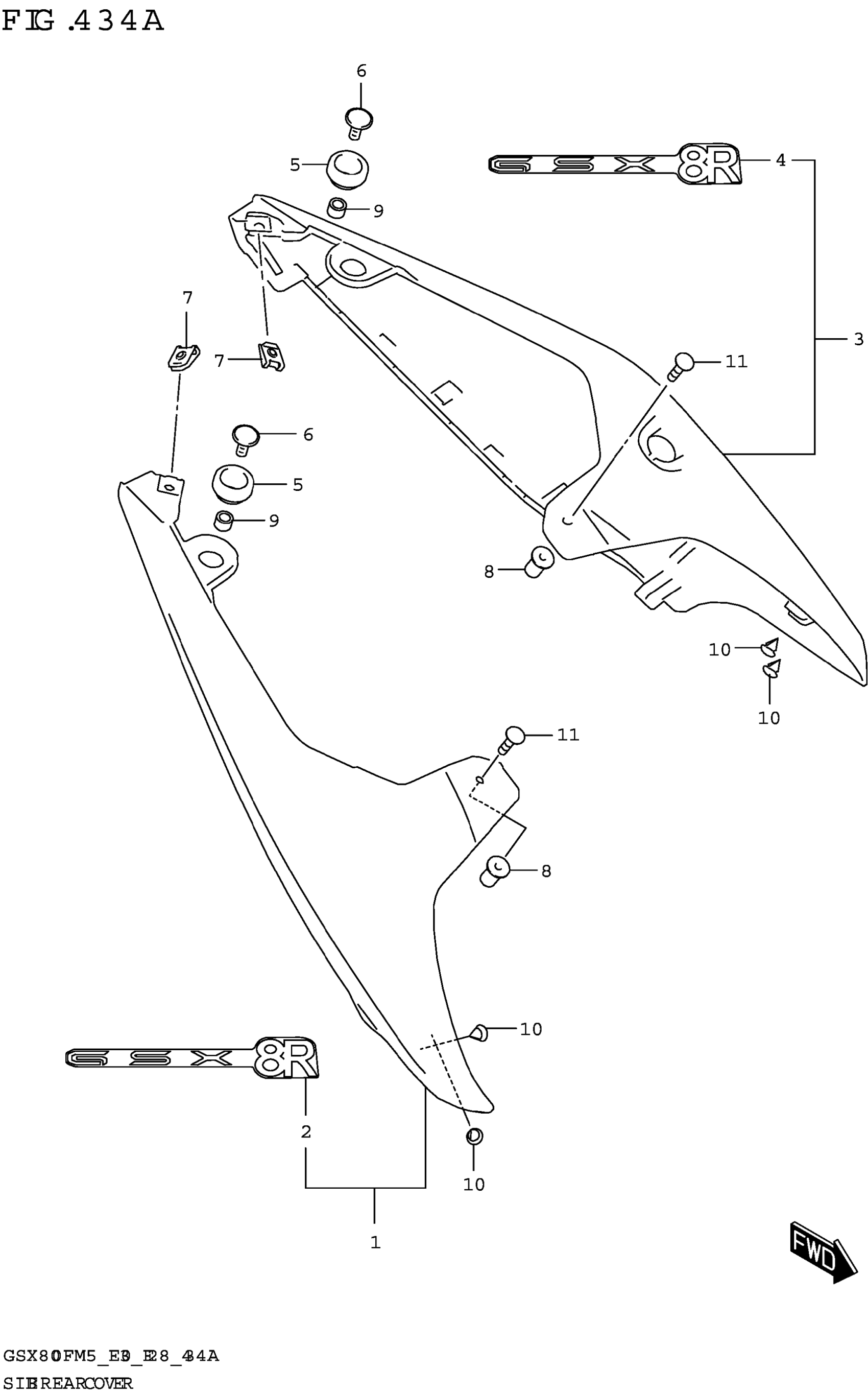

Suzuki GSX800FRQM5 (2025) SIDE REAR COVER Diagram

#

Description
Price

1-1

COVER,FRAME,R (BLACK) | BODY COLOR:YKV

47110-25L11-YKV

Unavailable

1-2

COVER,FRAME,R (BLUE) | BODY COLOR:YSF

47110-25L11-YSF

Unavailable

1-3

COVER,FRAME,R (SILVER) | BODY COLOR:QKA

47110-25L11-QKA

Unavailable

1-4

COVER,FRAME,R (YELLOW) | BODY COLOR:QZY

47110-25L11-QZY

Unavailable

2-1

.EMBLEM,FRAME COVER (GRAY,BLA | K) BODY COLOR:YKV

68131-25L11-CK8

Unavailable

2-2

.EMBLEM,FRAME COVER (SILVER,B | ACK) BODY COLOR:YSF

68131-25L11-CP9

Unavailable

2-3

.EMBLEM,FRAME COVER (RED,BLAC | ,SILVER) BODY COLOR:QKA

68131-25L11-CQA

Unavailable

2-4

.EMBLEM,FRAME COVER (GRAY,BLA | K,YELLOW) BODY COLOR:QZY

68131-25L11-CQB

Unavailable

3-1

COVER,FRAME,L (BLACK) | BODY COLOR:YKV

47210-25L11-YKV

Unavailable

3-2

COVER,FRAME,L (BLUE) | BODY COLOR:YSF

47210-25L11-YSF

Unavailable

3-3

COVER,FRAME,L (SILVER) | BODY COLOR:QKA

47210-25L11-QKA

Unavailable

3-4

COVER,FRAME,L (YELLOW) | BODY COLOR:QZY

47210-25L11-QZY

Unavailable

4-1

.EMBLEM,FRAME COVER (GRAY,BLA | K) BODY COLOR:YKV

68131-25L11-CK8

Unavailable

4-2

.EMBLEM,FRAME COVER (SILVER,B | ACK) BODY COLOR:YSF

68131-25L11-CP9

Unavailable

4-3

.EMBLEM,FRAME COVER (RED,BLAC | ,SILVER) BODY COLOR:QKA

68131-25L11-CQA

Unavailable

4-4

.EMBLEM,FRAME COVER (GRAY,BLA | K,YELLOW) BODY COLOR:QZY

68131-25L11-CQB

Unavailable

5

CUSHION,FRAME COVER CTR

47312-37H20

$2.45

6

SCREW (6X16)

09136-06056

$2.19

7

NUT (M5)

09148-05038

$1.97

8

NUT (M5)

09159-05019

$7.14

9

SPACER (6.5X10X7)

09180-06283

$1.91

10

PLUG (OD:10)

09250-06017

$2.71

11

SCREW

02142-1520A

Unavailable
