Description

Price

1-1

WHEEL,REAR (17M/CXMT5.50,BLAC | ) BODY COLOR:YKV

64111-25L00-019

$507.82

1-2

WHEEL, REAR (17M/CXMT5.50) | BODY COLOR:YSF,QZY

64111-25L00-QZP

$495.43

1-3

WHEEL,REAR (17M/CXMT5.50,RED) | BODY COLOR:QKA

64111-25L00-Q1D

$479.80

2

SPACER,RR WHEEL BEARING

64731-44G00

$51.33

3

SEAL,OIL (37X52X8)

09284-37002

$7.85

4

ABSORBER,RR HUB SHOCK

64651-47H10

$25.52

5

RING,SPEED SENSOR FR (50T)

54162-27G00

$140.15

6

BEARING

08123-6205B

$25.93

7

BOLT

07130-0512A

$2.19

8

TIRE,REAR (180/55ZR17M/C(73W) | SPORTMAX ROADSPORT2 X,DUNLOP

65110-25L00

$263.57

9

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

10

AXLE,REAR

64711-25L10

$78.37

11

NUT

64721-13K00

$12.61

12

SPACER,RR AXLE,R

64741-44G00

$29.87

13

SPACER,RR AXLE,L

64751-44G00

$35.17

14

RETAINER,RR SPROCKET DRUM

64733-44G00

$29.15

15

WASHER,REAR AXLE

64723-25L00

$8.03

16

DRUM,RR SPROCKET

64610-47H00

$313.78

17

BEARING (32X65X17)

09262-32024

$39.40

18

SEAL,OIL (39X65X7)

09285-39001

$10.62

19

SPROCKET,REAR (47T-525)

64511-25L00

$84.13

20

NUT

08319-3110A

$2.73

21

DISC,RR BRAKE

69211-38G00

$303.38

22

BOLT (8X21)

09106-08160

$3.57

23-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

23-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

23-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

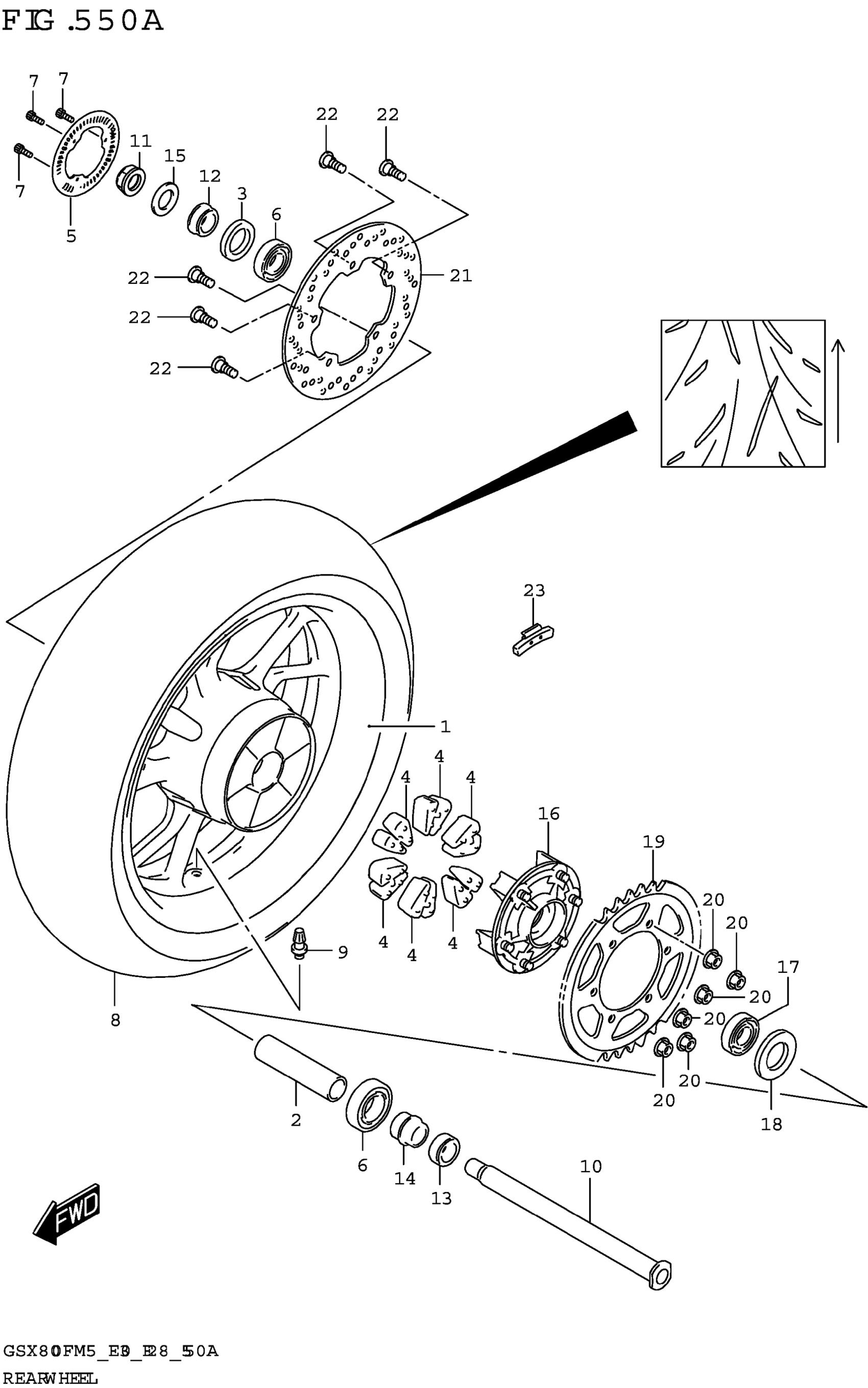

Suzuki GSX800FRQM5 (2025) REAR WHEEL Diagram
