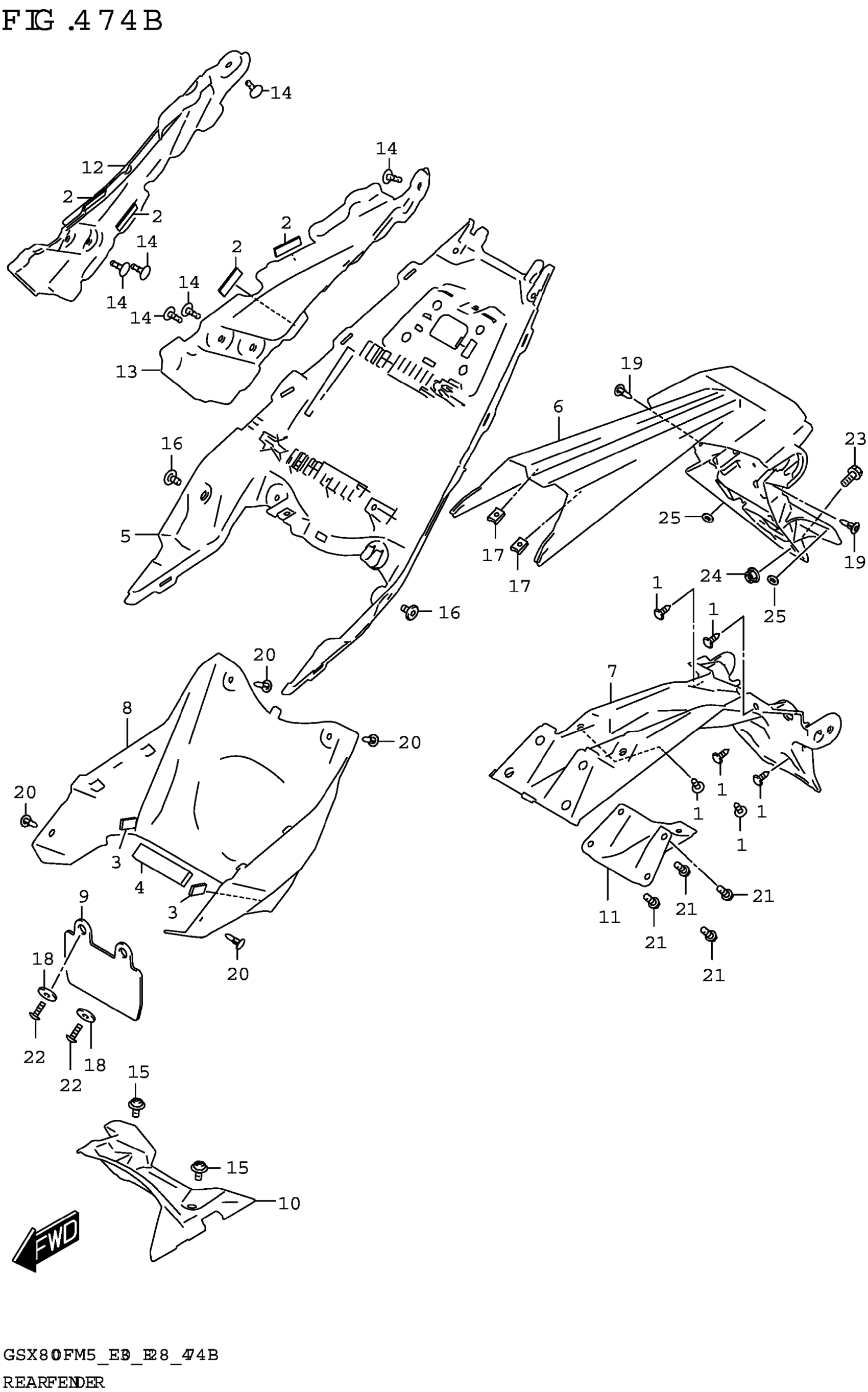

Suzuki GSX800FRQM5 (2025) REAR FENDER Diagram

#

Description
Price

1

SCREW,FRONT POSITION LAMP

36125-81P00

$1.56

2

CUSHION (10X30X2)

44894-24A00

$1.78

3

CUSHION,FUEL LID (10X20X3)

47376-20E00

$2.03

4

CUSHION (15X70X7)

51827-13G00

$4.77

5

FENDER,REAR FRONT

63111-25L00

$56.33

6

FENDER,REAR REAR

63112-25L10

$29.28

7

BRACKET,REAR FENDER

63113-25L10

$154.00

8

LID,REAR FENDER FRONT

63114-25L00

$34.12

9

MUDFLAP,REAR FENDER FRONT

63115-25L00

$39.97

10

FENDER,REAR LOWER

63116-25L00

$10.20

11

REINF,REAR FENDER BRACKET

63117-25L00

$28.03

12

COVER,REAR FENDER,R

63121-25L00

$24.92

13

COVER,REAR FENDER,L

63122-25L00

$24.92

14

CLIP

94479-35F00

$5.14

15

BOLT (6X12)

09111-06107

$2.66

16

BOLT (6X12)

09139-06225

$2.80

17

NUT (M5)

09148-05038

$1.97

18

WASHER (5.5X20X1.4)

09160-05046

$1.90

19

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

20

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

21

BOLT

01547-0616B

$2.43

22

SCREW

03541-0516B

$1.77

23

BOLT

01550-0612A

$1.97

24

NUT (6X12)

08316-1006A

$2.19

25

WASHER

08322-0106A

$1.83
