2025 Suzuki GSX800FRQM5 Radiator Diagram

← All diagrams

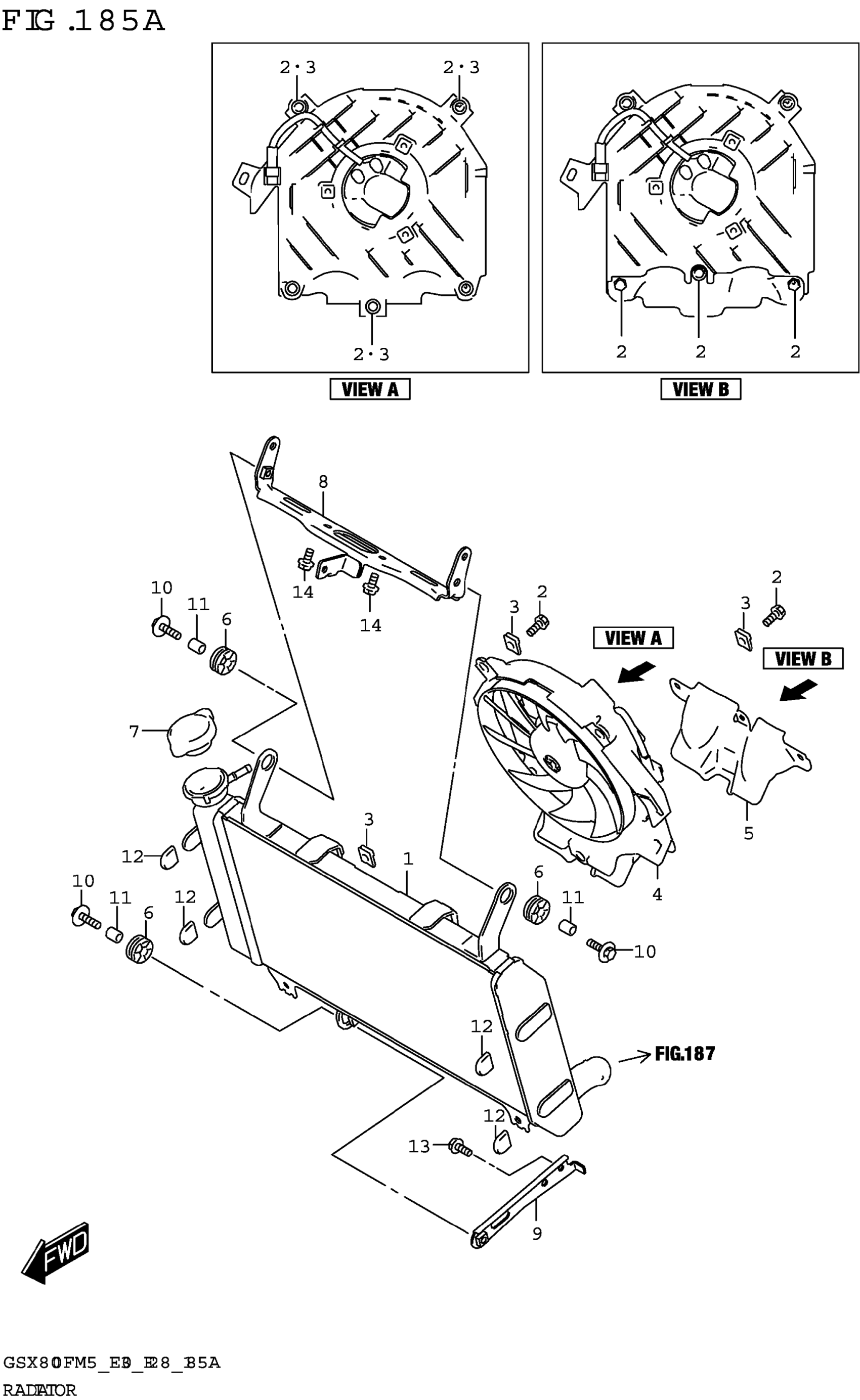

Find the part on the Radiator diagram for your 2025 Suzuki GSX800FRQM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki GSX800FRQM5 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR

17700-25L10

1
Out of stock

2

BOLT,FAN ASSY

17711-14G00

6
Out of stock

3

NUT,RADIATOR FAN

17802-14F00

3
Out of stock

4

FAN ASSY

17810-25L01

1
Out of stock

5

PLATE

17812-25L00

1
Out of stock

6

CUSHION

09320-10051

3
Out of stock

7

CAP,RADIATOR (1.1)

17730-14G00

1
Out of stock

8

BRACKET,RADIATOR UPPER

17740-25L00

1
Out of stock

9

BRACKET,RADIATOR LOWER

17750-25L00

1
Out of stock

10

BOLT (6X25)

09118-06097

3
Out of stock

11

SPACER (6.5X10X12)

09180-06290

3
Out of stock

12

CUSHION

09329-18001

4
Out of stock

13

BOLT

01550-0616A

1
Out of stock

14

SCREW

02162-0612A

2
Out of stock
