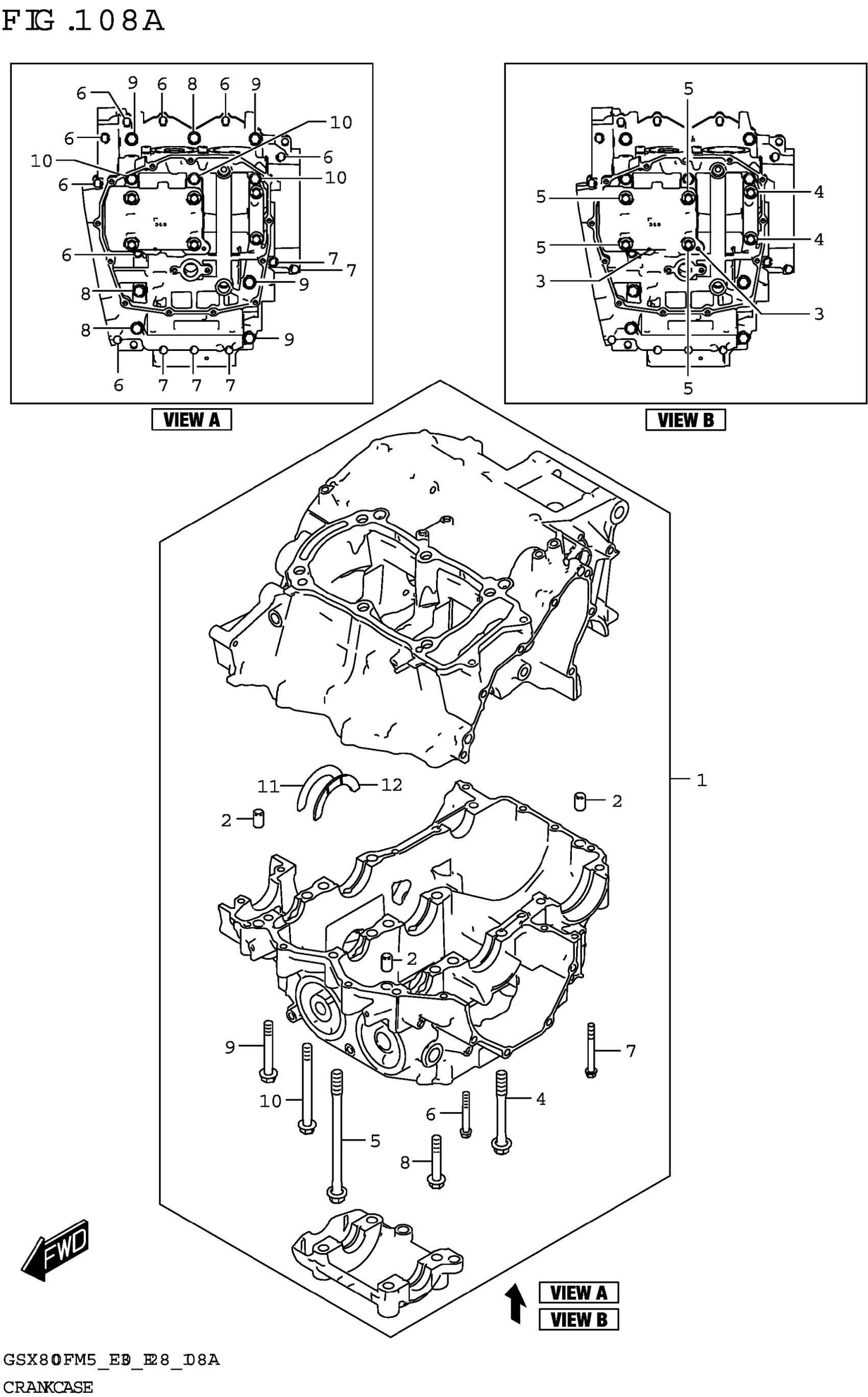

Find the part on the Crankcase diagram for your 2025 Suzuki GSX800FRQM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki GSX800FRQM5 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11300-25820

1

$676.66

In stock

2

PIN,CRANKCASE

11319-33E50

2

$5.45

In stock

3

PIN,CRANKCASE

11319-33E50

3

$5.45

In stock

4

.BOLT,CRANKCASE

11322-25L00

2

$8.38

In stock

5

.BOLT,CRANKCASE

11323-25L00

4

$10.55

In stock

6

BOLT

01547-0645A

8
Out of stock

7

.BOLT

01547-0655A

5

$2.63

In stock

8

.BOLT

01550-0850A

3

$3.98

In stock

9

.BOLT

01550-0860A

4

$4.53

In stock

10

BOLT

01550-0895A

3

$5.00

In stock

11

1

$11.09

In stock

12-1

1

$14.45

In stock

12-2

1

$11.09

In stock

12-3

1

$14.35

In stock

12-4

1

$11.09

In stock

12-5

1

$14.98

In stock

12-6

1

$14.98

In stock
