2025 Suzuki GSX800FRQM5 Holder Diagram

← All diagrams

Find the part on the Holder diagram for your 2025 Suzuki GSX800FRQM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

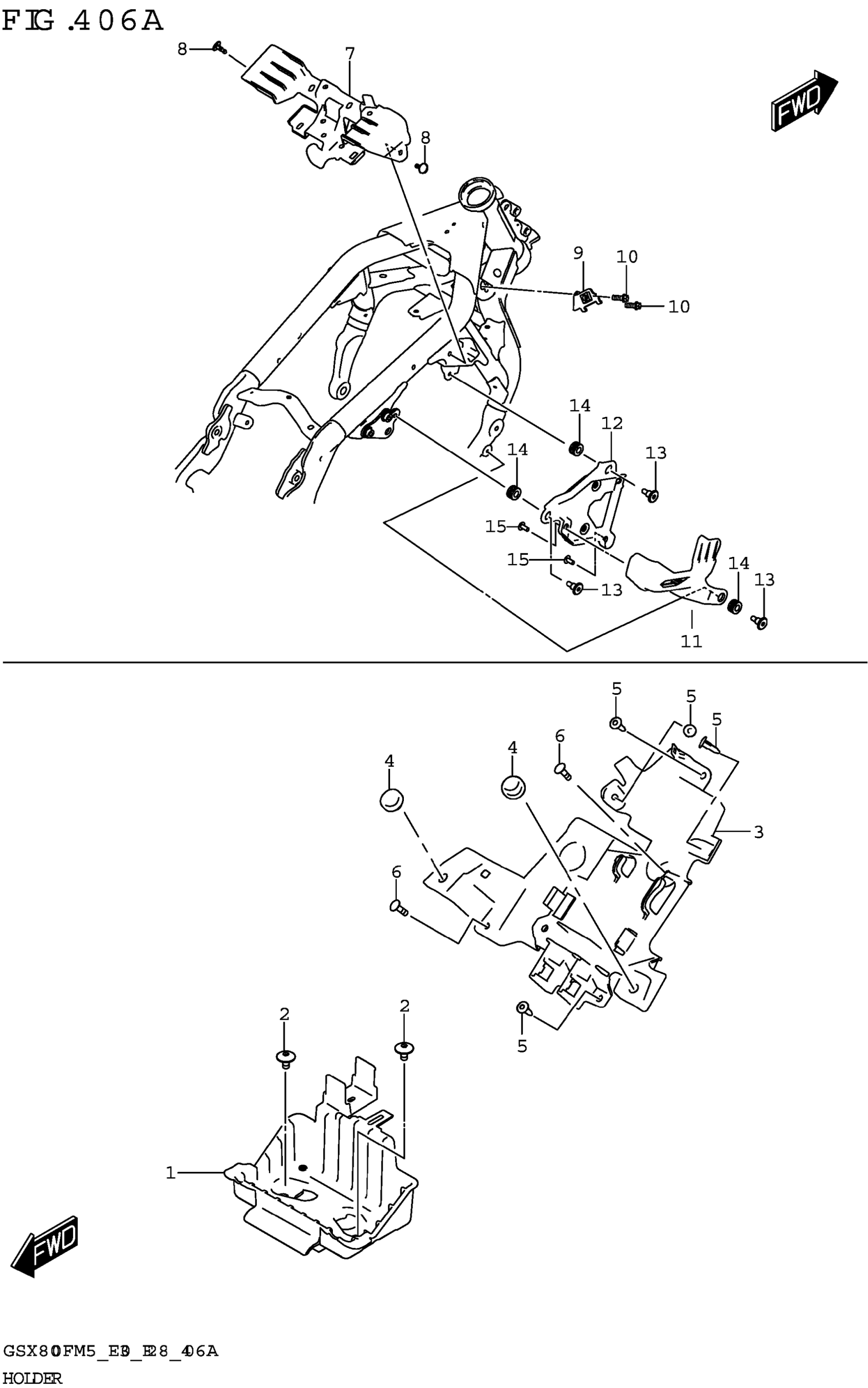

2025 Suzuki GSX800FRQM5 Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER,BATTERY

47431-25L00

1

$30.93

In stock

2

SCREW (6X12)

09139-06188

2

$4.03

In stock

3

HOLDER,ELECTRIC PARTS

47433-25L01

1

$9.27

In stock

4

CUSHION

09321-10012

2
Out of stock

5

4

$2.92

In stock

6

SCREW

03541-0516A

2
Out of stock

7

BRACKET,COUPLER

47430-25L00

1

$22.55

In stock

8

CLIP

94479-35F00

2
Out of stock

9

BRACKET,HORN

46420-25L00

1

$8.68

In stock

10

BOLT

01547-0616B

2
Out of stock

11

GUARD,RECTIFIER

47436-25L00

1

$14.55

In stock

12

HOLDER,RECTIFIER

47437-25L00

1

$15.50

In stock

13

SCREW (6X20)

09139-06211

3
Out of stock

14

CUSHION (9X18X9.5)

09320-09016

3
Out of stock

15

SCREW

03541-0512A

2
Out of stock
