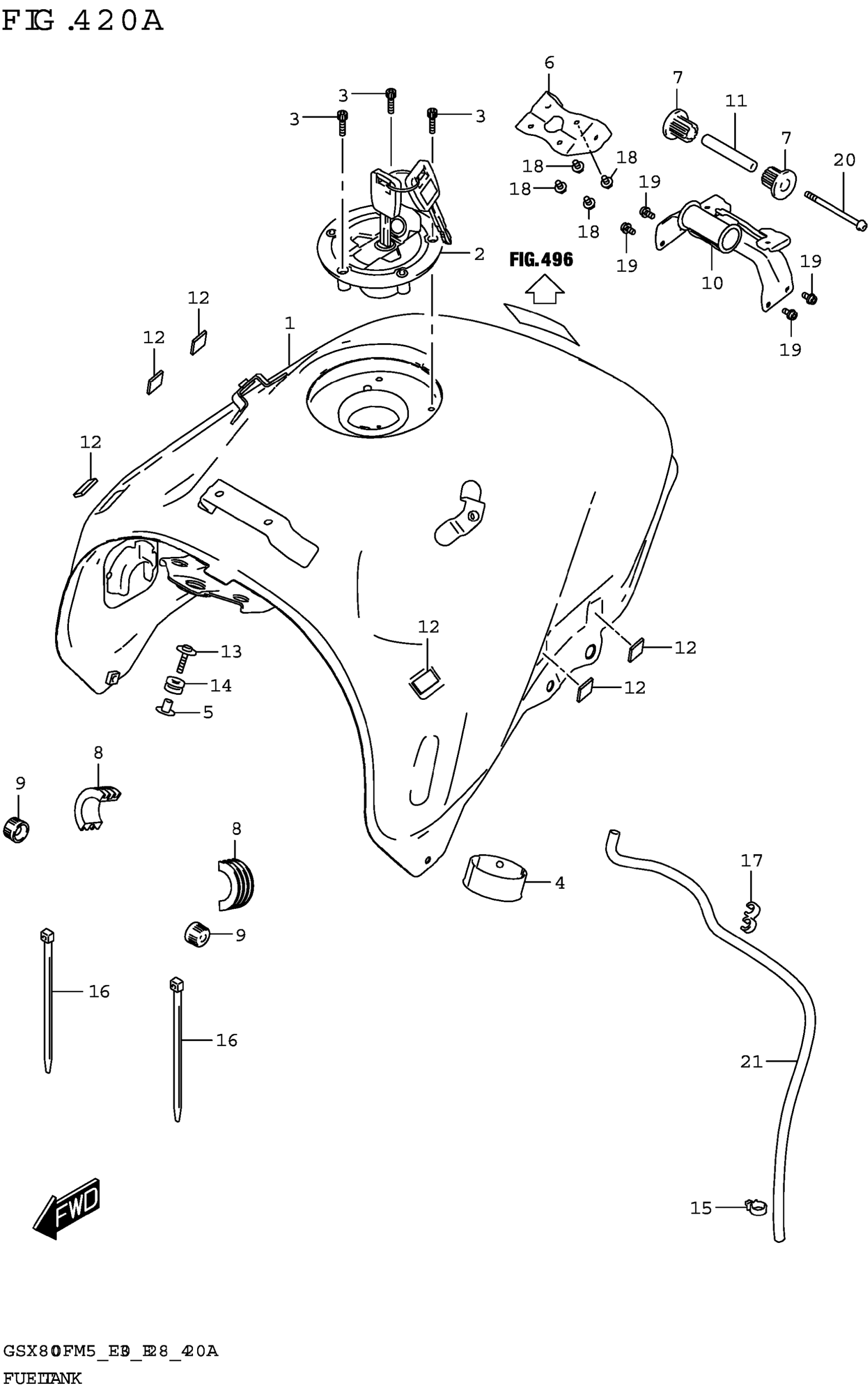

Suzuki GSX800FRQM5 (2025) FUEL TANK Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (BLACK) | BODY COLOR:YKV,YSF,QZY

44100-25L10-YVB

$773.82

1-2

TANK ASSY,FUEL (BLACK) | BODY COLOR:QKA

44100-25L10-YKV

$807.83

2

CAP SET,FUEL TANK FILLER

44200-17850

$145.35

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

4

VESSEL,FUEL TANK INNER

44121-07L00

$16.65

5

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

6

BRACKET,FUEL TANK NO.1

44530-25L00

$13.10

7

CUSHION,FUEL TANK RR

44541-02F01

$11.60

8

CUSHION,FUEL TANK SIDE

44541-25L00

$6.12

9

CUSHION,FUEL TANK FRONT

44542-25L00

$4.50

10

BRACKET,FUEL TANK REAR

44550-25L00

$46.00

11

SPACER,FUEL TANK REAR

44561-25L10

$10.12

12

FASTENER,FRAME COVER (15X25)

47912-37H00

$10.18

13

BOLT (6X30)

09116-06172

$2.50

14

CUSHION (10X22X13)

09320-10050

$3.35

15

CLAMP

09403-16412

$3.37

16

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

17

CLAMP (ID:11.8X2)

09408-00043

Unavailable

18

BOLT

01550-0610A

$1.97

19

BOLT

07120-0612B

$3.04

20

BOLT

07120-0695A

$2.58

21

HOSE,FUEL TANK DRAIN

44423-25L00

$14.57
