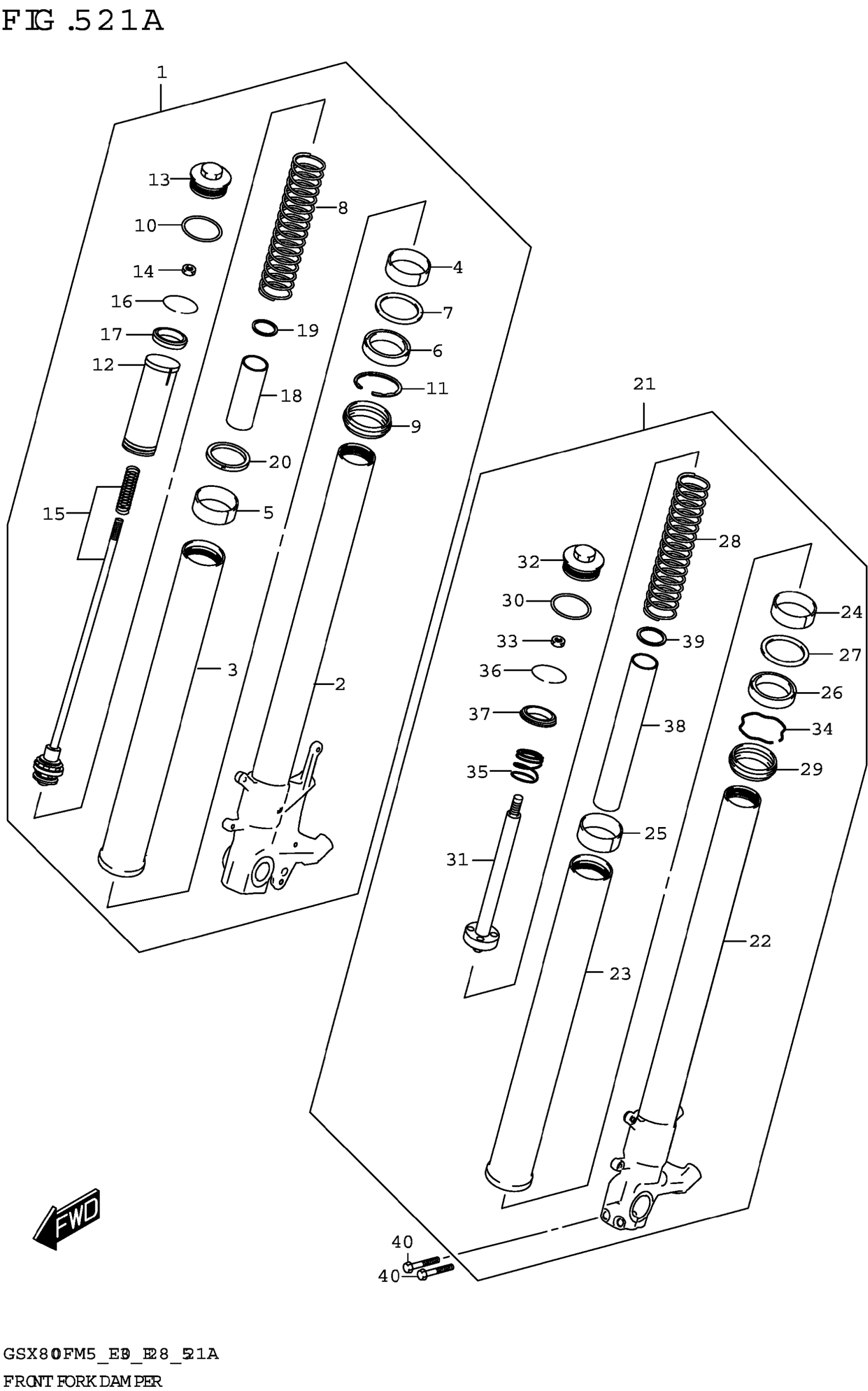

Suzuki GSX800FRQM5 (2025) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,R

51103-25L10

$895.58

2

.TUBE,INNER,R

51110-25L10

$486.65

3

.TUBE,OUTER

51131-25L10

$517.07

4

.BUSH,GUIDE

51152-01H10

$16.70

5

.BUSH,SLIDE

51152-14J00

$13.01

6

.SEAL,OIL

51153-01H10

$24.63

7

.SPACER,SEAL

51168-38B00

$6.12

8

.SPRING,FR

51171-25L10

$50.57

9

.DUST SEAL

51173-15D00

$21.83

10

.O-RING

51187-15D50

$5.13

11

.INTERNAL CIRCLIP

51156-25L20

$4.42

12

.ROD GUIDE CASE

51174-25L10

$77.68

13

.BOLT,FORK

51189-25L10

$92.28

14

.NUT

51827-25L20

$4.48

15

.PISTON ROD

52110-25L10

$141.76

16

.RING STOPPER

51118-25L10

$3.92

17

.STOPPER

51136-25L10

$11.78

18

.COLLAR,SPRING

51175-25L10

$7.98

19

.SPRING JOINT

51178-25L10

$3.80

20

.PISTON RING B

51196-25L10

$6.57

21

DAMPER ASSY,L

51104-25L10

$895.58

22

.TUBE,INNER,L

51210-25L10

$486.65

23

.TUBE,OUTER

51131-25L10

$517.07

24

.BUSH,GUIDE

51152-01H10

$16.70

25

.BUSH,SLIDE

51152-14J00

$13.01

26

.SEAL,OIL

51153-01H10

$24.63

27

.SPACER,SEAL

51168-38B00

$6.12

28

.SPRING,FR

51171-25L10

$50.57

29

.DUST SEAL

51173-15D00

$21.83

30

.O-RING

51187-15D50

$5.13

31

.JOINT ROD

51128-25L10

$92.28

32

.BOLT,FORK

51189-25L10

$92.28

33

.NUT

51827-25L20

$4.48

34

.RING,STOPPER

51556-38B00

$6.61

35

.SPRING,REBOUND

51177-25L10

$8.57

36

.RING STOPPER

51118-25L10

$3.92

37

.STOPPER

51126-25L10

$13.87

38

.COLLAR,SPRING

51176-25L10

$24.13

39

.SPRING JOINT

51178-25L10

$3.80

40

.BOLT,BRACKET UPPER

51328-44HB0

$5.02
