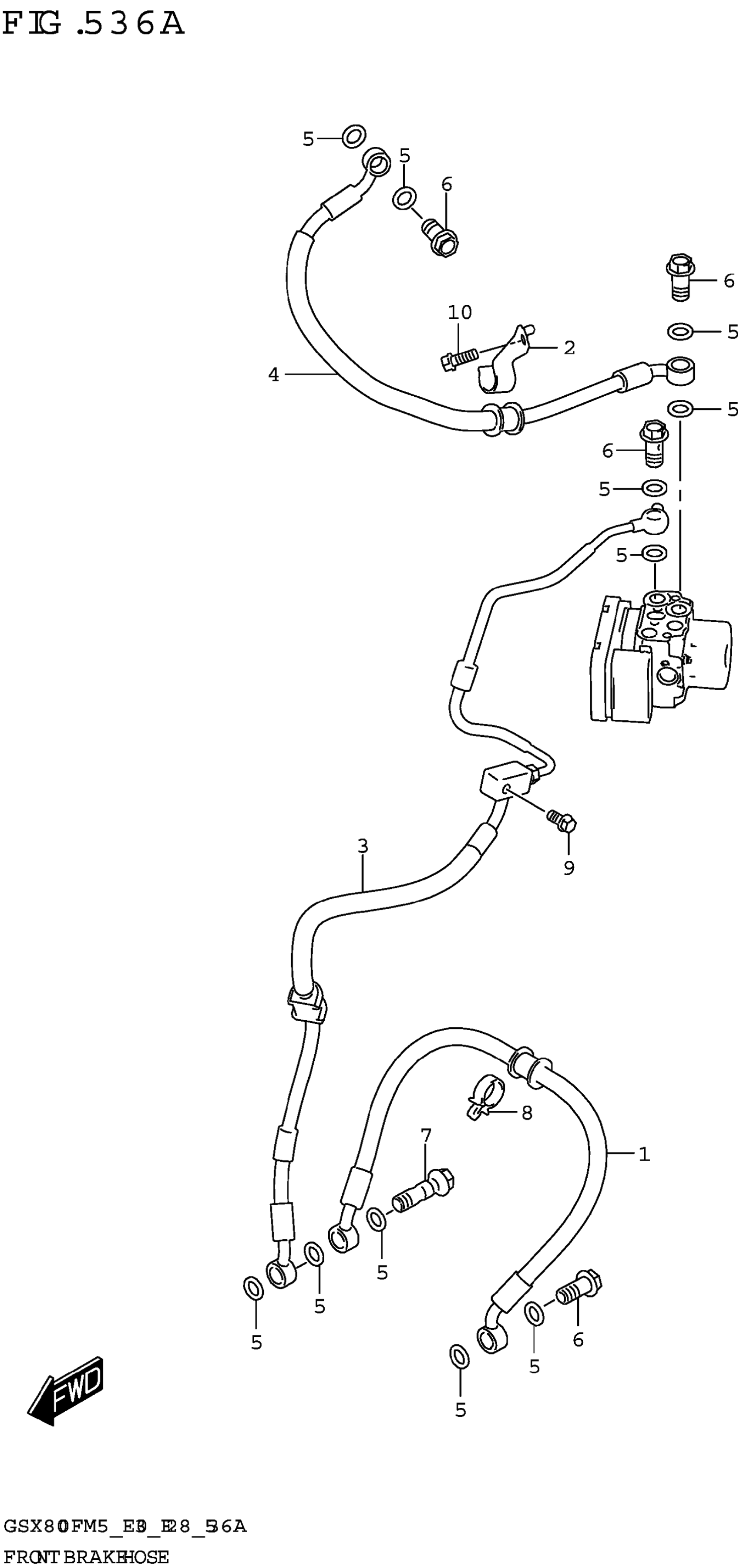

Suzuki GSX800FRQM5 (2025) FRONT BRAKE HOSE Diagram

#

Description
Price

1

HOSE,BK CLPR R TO CLPR L

59240-25L00

$52.77

2

CLAMP,BRAKE HOSE UPPER

59261-25L30

$11.42

3

HOSE ASSY,UNIT TO FR BK CLPR

59400-25L00

$139.03

4

HOSE,FR BK MASTER TO UNIT

59480-25L10

$67.25

5

WASHER (10X15X1.5)

09161-10009

$1.83

6

UNION (10X1.25X22)

09360-10062

$5.81

7

UNION (10X1.25X36)

09360-10064

$5.81

8

CLAMP

09403-16412

$3.08

9

BOLT

01547-0612A

$2.01

10

BOLT

01547-0616A

$2.01
