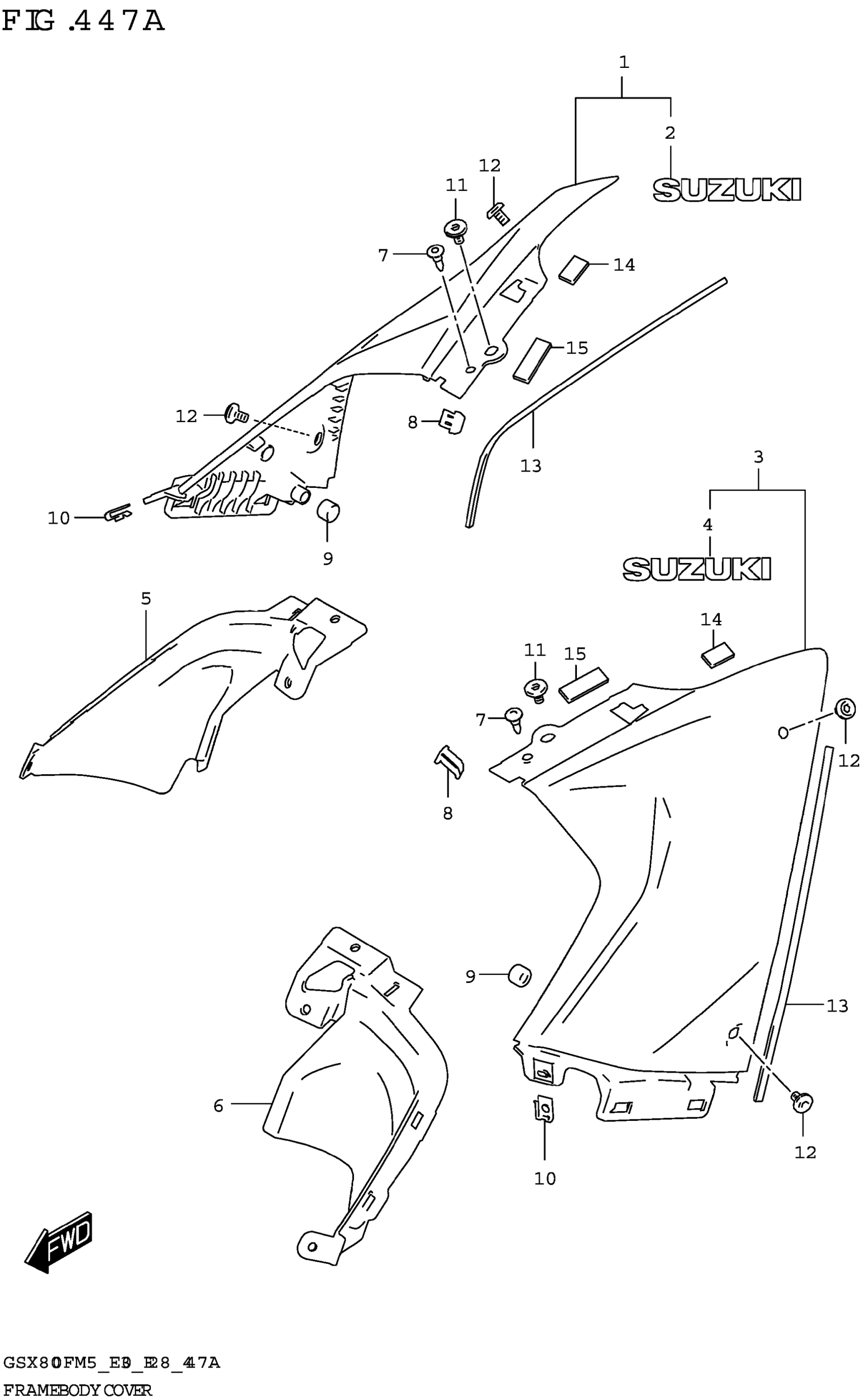

Suzuki GSX800FRQM5 (2025) FRAME BODY COVER Diagram

#

Description
Price

1-1

COWLING,SIDE REAR,R (BLACK) | BODY COLOR:YKV

94470-25L00-YKV

$176.33

1-2

COWLING,SIDE REAR,R (BLUE) | BODY COLOR:YSF

94470-25L00-YSF

$176.33

1-3

COWLING,SIDE REAR,R (SILVER) | BODY COLOR:QKA

94470-25L00-QKA

$176.33

1-4

COWLING,SIDE REAR,R (YELLOW) | BODY COLOR:QZY

94470-25L00-QZY

$176.33

2-1

EMBLEM,SUZUKI (BLACK) | BODY COLOR:YKV,QKA,QZY

68111-25L00-019

$14.82

2-2

EMBLEM,SUZUKI (SILVER) | BODY COLOR:YSF

68111-25L00-QKA

$13.75

3-1

COWLING,SIDE REAR,L (BLACK) | BODY COLOR:YKV

94480-25L00-YKV

$176.33

3-2

COWLING,SIDE REAR,L (BLUE) | BODY COLOR:YSF

94480-25L00-YSF

$176.33

3-3

COWLING,SIDE REAR,L (SILVER) | BODY COLOR:QKA

94480-25L00-QKA

$176.33

3-4

COWLING,SIDE REAR,L (YELLOW) | BODY COLOR:QZY

94480-25L00-QZY

$176.33

4-1

EMBLEM,SUZUKI (BLACK) | BODY COLOR:YKV,QKA,QZY

68111-25L00-019

$14.82

4-2

EMBLEM,SUZUKI (SILVER) | BODY COLOR:YSF

68111-25L00-QKA

$13.75

5

COWLING,INNER RR,R

94463-25L00

$17.45

6

COWLING,INNER RR,L

94464-25L00

$17.45

7

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

8

CLIP

09409-08012

$2.82

9

CAP (OD:13.6)

09251-09008

$4.12

10

NUT (M5)

09148-05052

$3.37

11

BOLT (6X12)

09139-06225

$2.92

12

BOLT

09139-06247

$2.46

13

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$5.45

14

CUSHION This part replaces 47512-10D00.

61544-94500

$1.68

15

CUSHION,FRAME BODY UPPER

47545-25L00

$1.49
