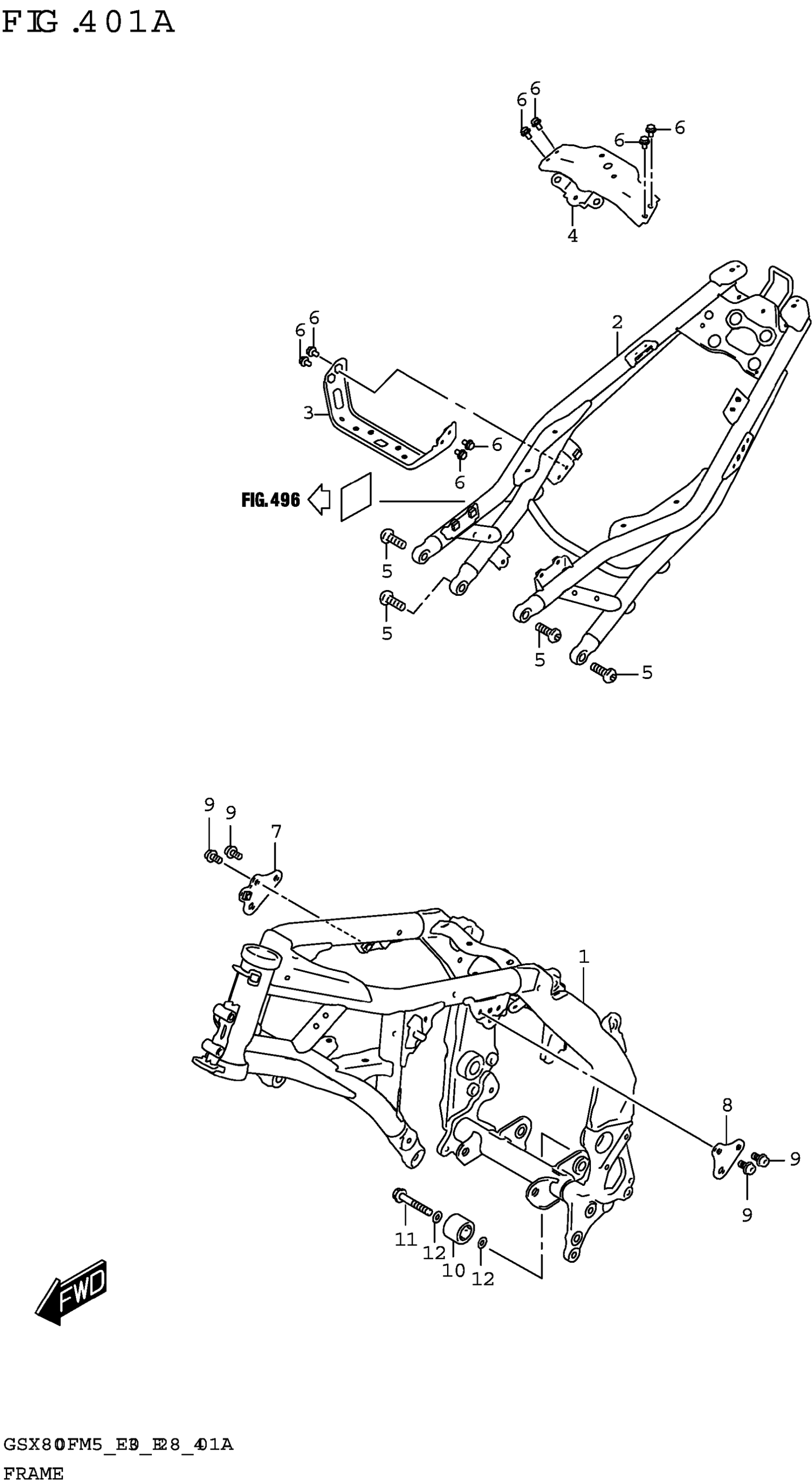

Suzuki GSX800FRQM5 (2025) FRAME Diagram

#

Description
Price

1

FRAME

41100-25L00

$1,778.87

2

RAIL,SEAT (GRAY)

41200-25L00-QEB

$196.08

3

HOLDER,BATTERY

42710-25L00

$19.20

4

BRACKET,SEAT LOCK

42720-25L00

$22.22

5

BOLT

09106-10100

$3.33

6

BOLT

01550-0610B

$2.42

7

PLATE,ENG MTG,R

41920-25L00

$8.52

8

PLATE,ENG MTG,L

41922-25L00

$7.77

9

BOLT

07120-0816B

Unavailable

10

ROLLER,CHAIN

43910-37F00

$70.53

11

BOLT (8X41)

09103-08083

$3.70

12

SHIM (8X16X1)

09181-08167

$1.96
