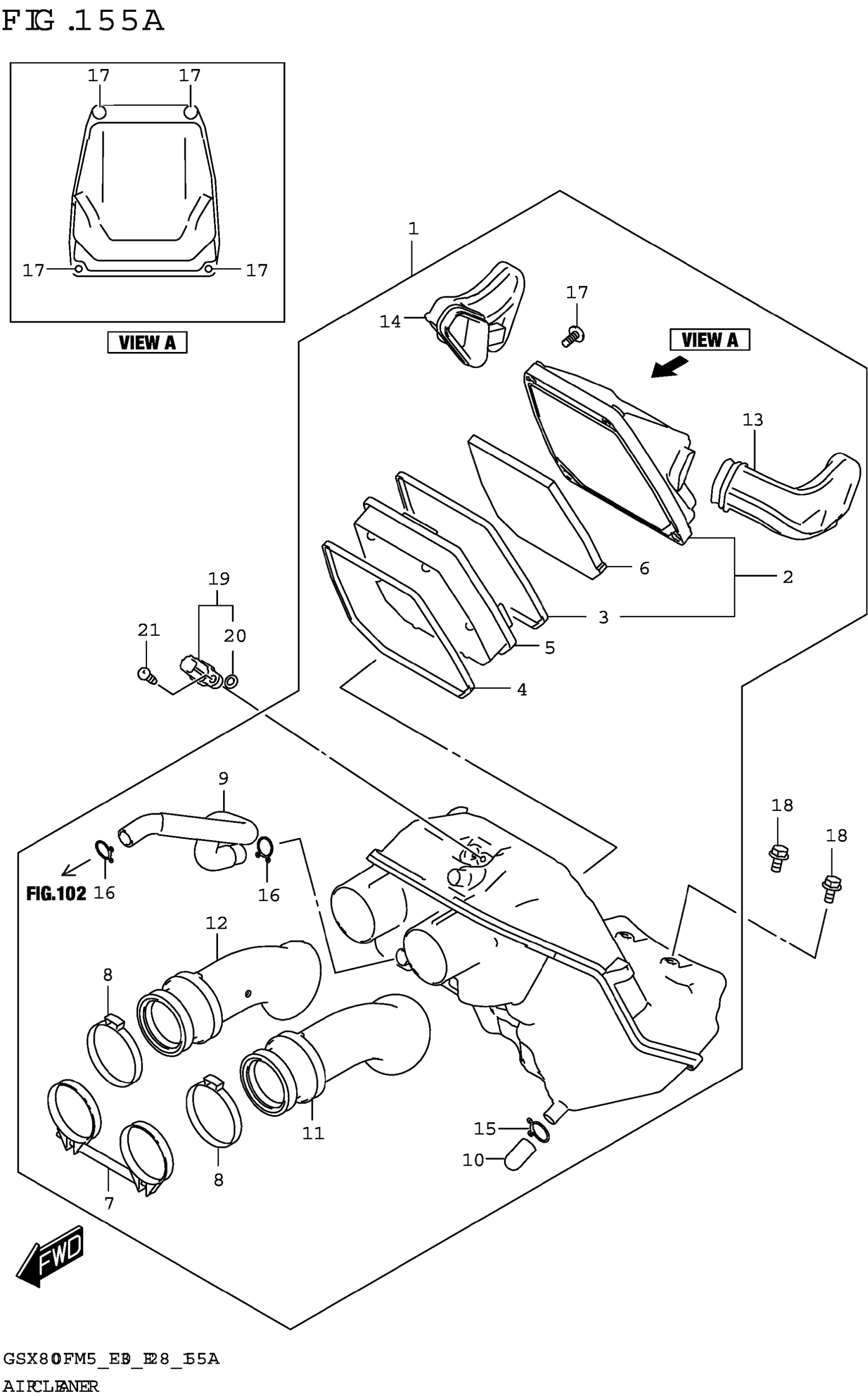

Suzuki GSX800FRQM5 (2025) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-25L00

$304.20

2

.CAP,AIR CLNR

13741-25L00

$19.23

3

..GASKET FILTER

13746-25L00

$7.83

4

..GASKET FILTER

13746-25L00

$7.83

5

.FILTER AIR CLNR

13780-25L00

$32.87

6

.PREFILTER

13786-25L00

$8.68

7

.CLAMP,INTAKE PIPE

13170-29G02

$26.28

8

.BAND,FRONT

13827-25L00

$8.37

9

.TUBE,BREATHER

13850-25L00

$39.43

10

.PLUG

13878-10G01

$4.93

11

.TUBE,OUTLET L

13881-25L00

$27.82

12

.TUBE,OUTLET R

13882-25L00

$27.82

13

.TUBE,INLET L

13891-25L00

$24.25

14

.TUBE,INLET R

13892-25L00

$24.25

15

.CLIP (ID:14.5)

09401-14101

$2.34

16

.CLIP (ID:16.5)

09401-16401

$3.14

17

SCREW

02142-0520A

$1.49

18

BOLT

01550-0612A

$1.97

19

SENSOR,AIR TEMP

13650-41F10

$63.25

20

O-RING

13655-41F10

Unavailable

21

SCREW

03511-0516A

$1.86
