1997 Suzuki GSX750FV Rear Caliper Diagram

← All diagrams

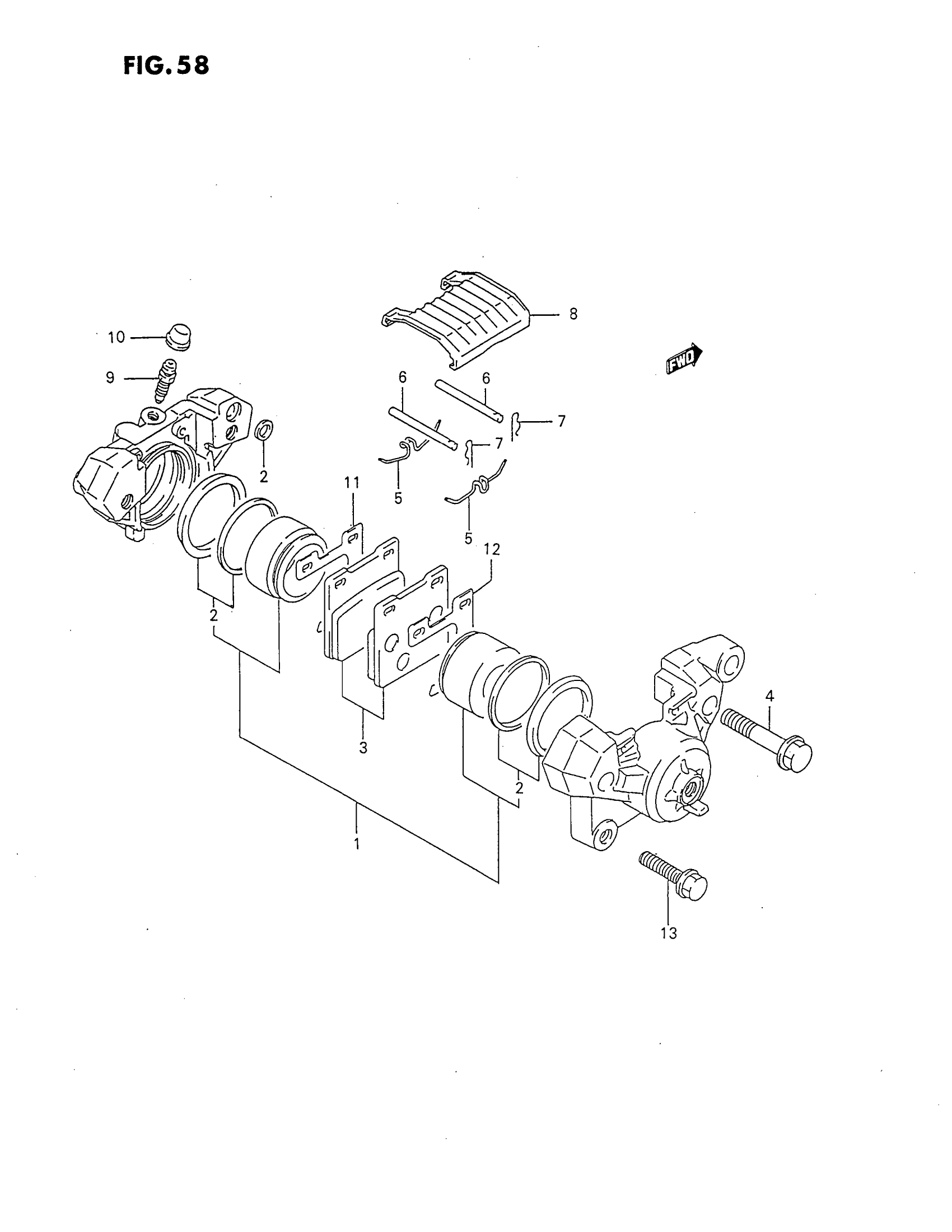

Find the part on the Rear Caliper diagram for your 1997 Suzuki GSX750FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki GSX750FV Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$60.48

In stock

2

1

$22.84

In stock

3

PAD SET

69100-20810

1

$54.02

In stock

4

BOLT

59145-16700

2

$9.97

In stock

5

SPRING

59143-16700

2

$5.77

In stock

6

PIN

69141-45000

2

$5.31

In stock

7

.CLIP, PAD PIN

69142-45000

2

$4.33

In stock

8

COVER

59151-16701

1

$13.70

In stock

9

BLEEDER

59121-18410

1

$8.70

In stock

10

CAP

55156-66310

1

$5.15

In stock

11

SHIM, INNER

59371-20C00

1

$18.33

In stock

12

SHIM, OUTER

59381-20C00

1

$18.33

In stock

13

BOLT This part replaces 01550-08303.

01550-0830A

2
Out of stock
