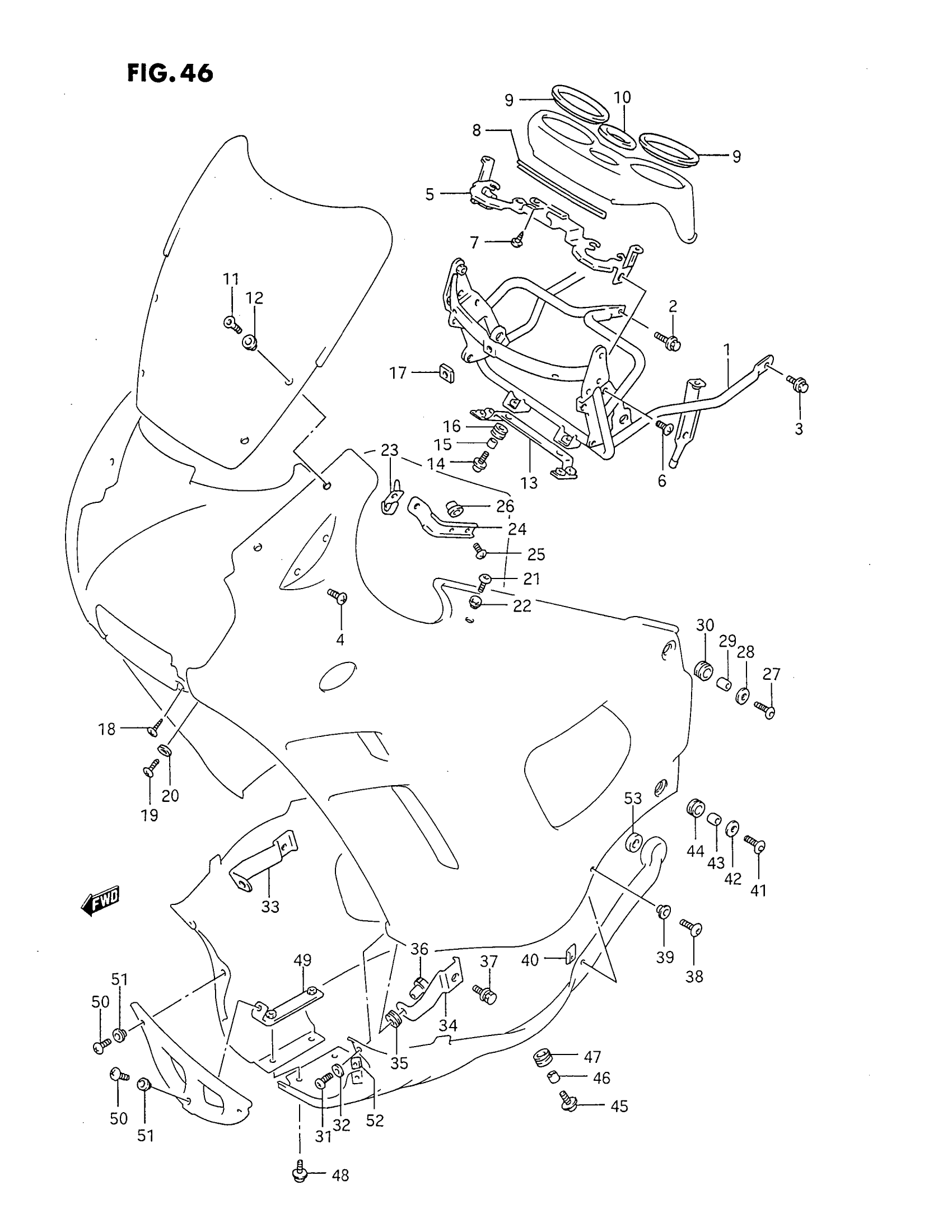

Suzuki GSX750FV (1997) INSTALLATION PARTS Diagram

#

Description
Price

1

BRACE, COWLING

94510-20C20

Unavailable

1

BRACE, COWLING | E33

94510-20C30

Unavailable

2

BOLT (8X20)

09103-08266

$2.80

3

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

4

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

5

PLATE, METER

94520-20C00

Unavailable

6

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

7

SCREW This part replaces 03541-05083.

03541-0508A

$1.41

8

MOLDING, METER

94527-19C00

$8.65

9

CUSHION, SPEEDOMETER

94426-20C00

Unavailable

10

CUSHION, FUEL METER

94427-20C00

Unavailable

11

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.70

12

CUSHION This part replaces 09161-05002.

09320-06502

Unavailable

13

PLATE, CENTER

94460-19C00

Unavailable

14

SCREW (6X20)

09136-06081

$2.28

15

SPACER

09180-06286

$2.53

16

CUSHION

09320-10015

$2.53

17

CUSHION This part replaces 94638-19C00.

63191-25C00

$2.88

18

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

19

SCREW, FRONT (6X25)

09139-06029

$4.84

20

WASHER This part replaces 09160-06006.

09160-06084

$1.77

21

SCREW, UPPER (6X16)

09139-06030

$3.33

22

WASHER

09161-06021

$2.80

23

BRACKET, UPPER RH

94560-19C00

Unavailable

24

BRACKET, UPPER LH

94570-19C00

Unavailable

25

SCREW This part replaces 02142-06253.

02142-0625A

$1.43

26

NUT

94573-19C00

Unavailable

27

SCREW (6X25)

09139-06029

$4.84

28

WASHER This part replaces 09160-06006.

09160-06084

$1.77

29

SPACER

09180-06263

$1.68

30

CUSHION

09320-09016

$1.97

31

SCREW, FRONT (6X30)

09139-06042

$5.07

32

WASHER This part replaces 09160-06006.

09160-06084

$1.77

33

BRACKET, UNDER,RH

94531-19C00

Unavailable

34

BRACKET, UNDER,LH

94532-19C00

Unavailable

35

CUSHION

09320-10015

$2.53

36

NUT

94590-19C00

Unavailable

37

BOLT This part replaces 01580-06163.

01580-0616A

$2.43

38

SCREW (5X14)

09139-05025

$1.89

39

WASHER

09161-05017

$2.80

40

NUT COWL This part replaces 94484-32B00.

94484-24F00

$3.63

41

SCREW, REAR (6X25)

09139-06029

$4.84

42

WASHER This part replaces 09160-06006.

09160-06084

$1.77

43

SPACER

09180-06116

Unavailable

44

CUSHION

09320-09016

$1.97

45

SCREW, LOWER (6X20)

09136-06081

$2.28

46

SPACER

09180-06263

$1.68

47

CUSHION, LOWER

09320-09016

$1.97

48

SCREW This part replaces 02142-05163.

02142-0516A

$1.43

49

BRACKET, LOWER

94580-19C00

Unavailable

50

SCREW This part replaces 02142-05163.

02142-0516A

$1.43

51

WASHER

09161-05017

$2.80

52

NUT COWL This part replaces 94484-32B00.

94484-24F00

$3.63

53

CUSHION, UNDER,REAR

94639-20C00

Unavailable
