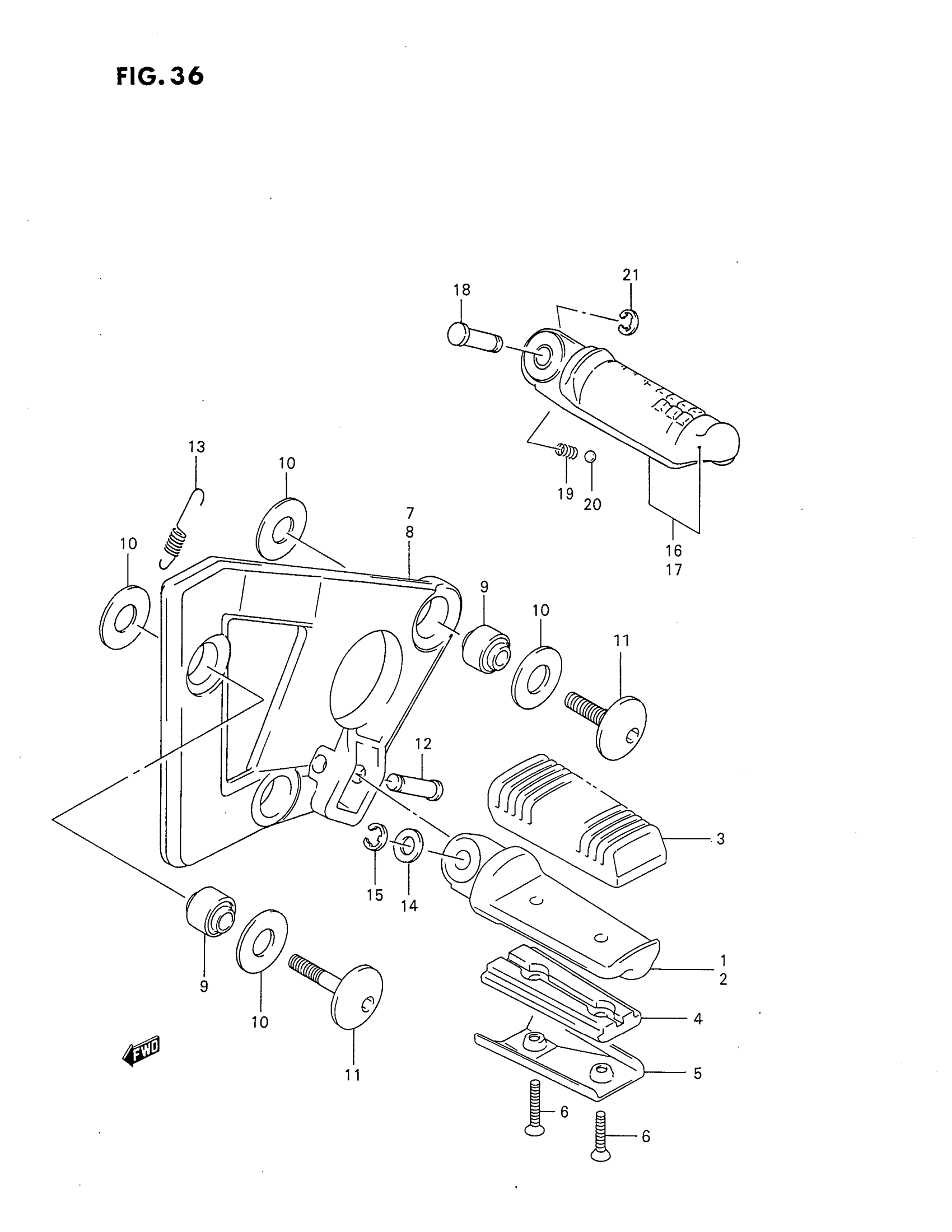

Suzuki GSX750FV (1997) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43510-20C00

Unavailable

2

BAR, FRONT FOOTREST LH

43520-20C00

$120.83

3

RUBBER, FOOTREST

43550-48B10

$30.22

4

PLATE, FOOTREST

43533-20C00

Unavailable

5

COVER, FOOTREST

43534-20C00

Unavailable

6

SCREW This part replaces 02122-05253.

02122-0525B

$2.40

7

HOLDER, FRONT FOOTREST RH

43517-20C01

Unavailable

8

HOLDER, FRONT FOOTREST LH

43527-20C01

Unavailable

9

BUSH, HOLDER

09319-08036

$27.28

10

WASHER, HOLDER

09161-12009

$4.70

11

BOLT, MUFFLER SUPPORT FRONT This part replaces 09106-08080.

09106-08147

$5.72

12

PIN

09208-08010

$2.80

13

SPRING

09443-10037

Unavailable

14

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

15

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

16

BAR, PILLION FOOTREST RH This part replaces 43610-20C00.

43610-20C01

$83.08

17

BAR, PILLION FOOTREST LH This part replaces 43710-20C00.

43710-20C01

$83.08

18

PIN

09208-08011

$2.80

19

SPRING

09440-05005

$1.45

20

BALL

06111-07004

$1.22

21

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43
