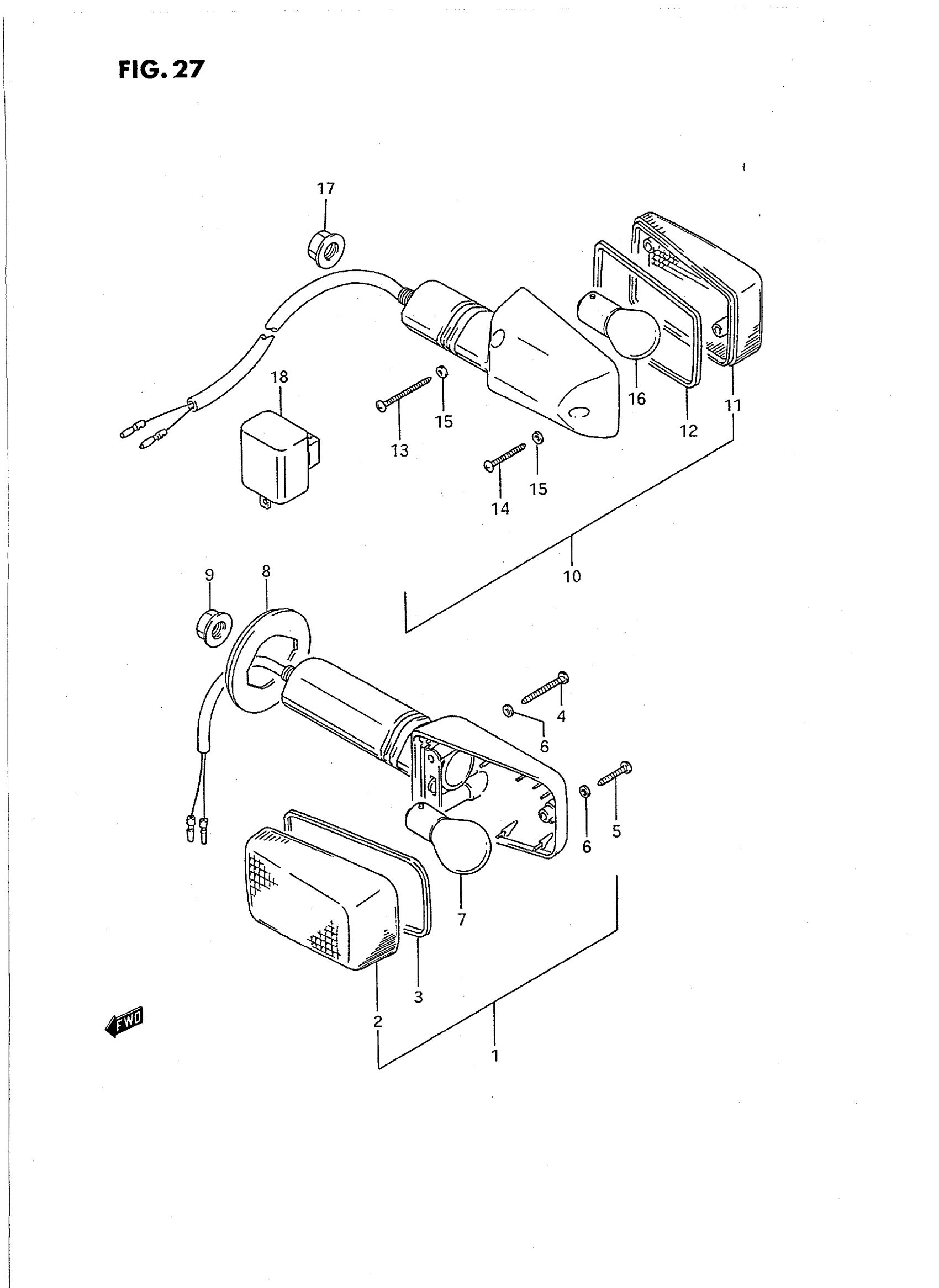

Suzuki GSX750FT (1996) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | MODEL K/L/M This part replaces 35601-17C21.

35601-01D10

Unavailable

1

LAMP ASSY, FRONT TURNSIGNAL | MODEL N/P/R/S/T; Includes Item(s) 2 - 7

35601-01D10

Unavailable

2

LENS

35612-17C20

$10.69

3

GASKET

35613-27A00

$4.52

4

TAPPING SCREW

35623-27A00

$1.65

5

TAPPING SCREW

35725-40511

$1.91

6

GASKET

35627-27A02

$1.58

7

BULB (12V,21W)

09471-12045

$3.27

8

GROMMET

35674-27A01

$9.58

9

NUT | MODEL K/L/M/N This part replaces 08316-26105.

08316-2010B

$3.43

9

NUT | MODEL P This part replaces 08316-26106.

08316-2010B

$3.43

9

NUT | MODEL R/S This part replaces 08316-20103.

08316-2010B

$3.43

9

NUT | MODEL T This part replaces 08316-10103.

08316-1010B

$2.66

10

LAMP ASSY, REAR TURNSIGNAL | MODEL K/L/M This part replaces 35603-17C21.

35603-14D10

Unavailable

10

LAMP ASSY, REAR TURNSIGNAL | MODEL N/P/R/S/T; Includes Item(s) 11 - 16

35603-14D10

Unavailable

11

LENS

35652-17C20

$10.28

12

GASKET

35613-27A00

$4.52

13

TAPPING SCREW

35623-27A00

$1.65

14

TAPPING SCREW

35725-40511

$1.91

15

GASKET

35627-27A02

$1.58

16

BULB (12V,21W)

09471-12045

$3.27

17

NUT | MODEL K/L/M/N This part replaces 08316-26105.

08316-2010B

$3.43

17

NUT | MODEL P This part replaces 08316-26106.

08316-2010B

$3.43

17

NUT | MODEL R/S This part replaces 08316-20103.

08316-2010B

$3.43

17

NUT | MODEL T This part replaces 08316-10103.

08316-1010B

$2.66

18

RELAY ASSY, TURNSIGNAL | MODEL K/L/M/N This part replaces 38610-31310.

38610-31X50

$80.15

18

RELAY, TURN SIGNAL | MODEL P This part replaces 38610-45D00.

38610-45D01

$78.73

18

RELAY ASSY, TURNSIGNAL | MODEL R/S/T

38610-45D01

$78.73
