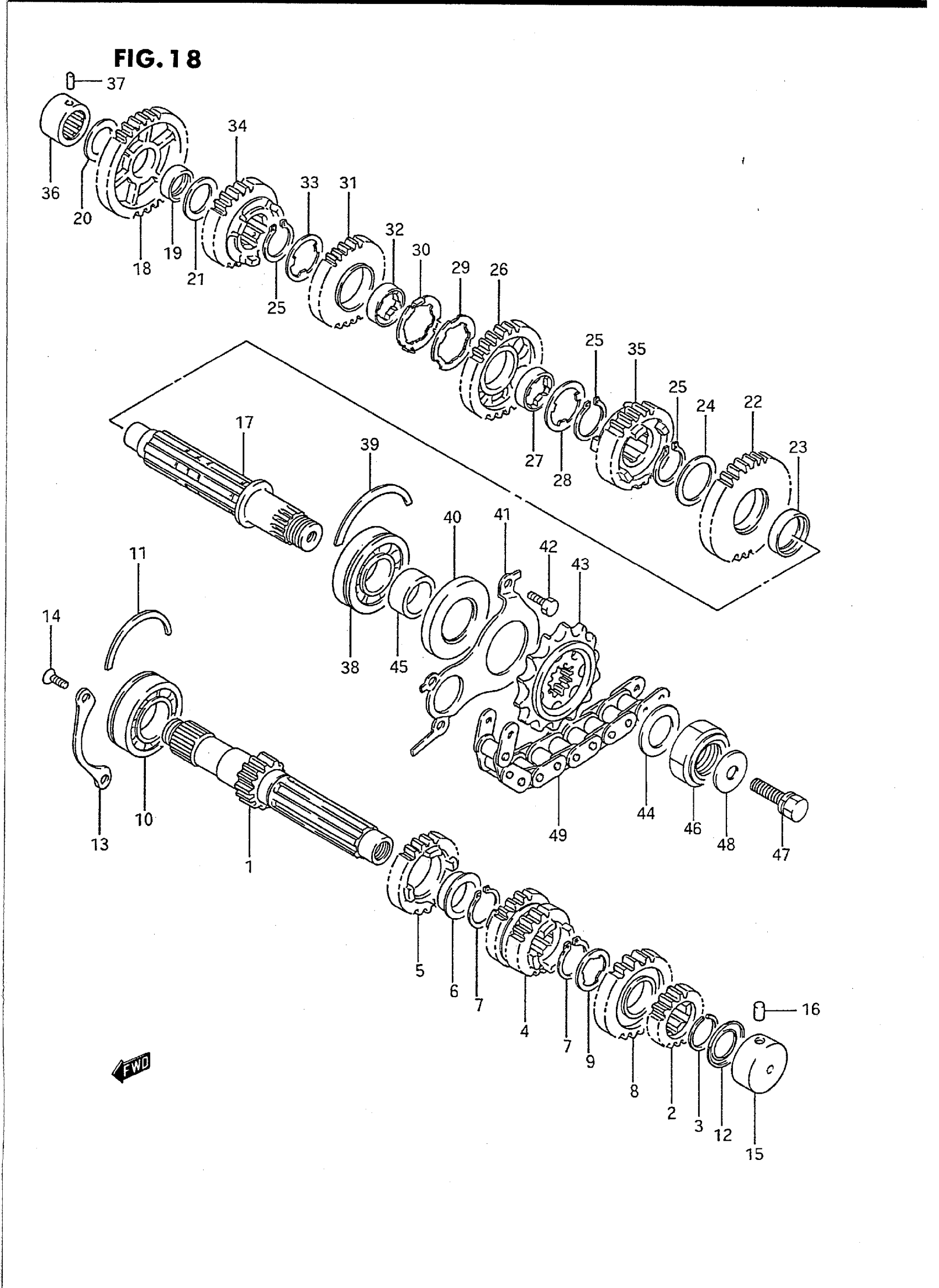

Suzuki GSX750FT (1996) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12) | MODEL K/L/M/N This part replaces 24121-20C00.

24121-20C10

Unavailable

1

COUNTERSHAFT (NT:12) | MODEL P/R/S/T

24121-20C10

Unavailable

2

GEAR, 2ND DRIVE (NT:16) | MODEL K/L/M/N

24221-27A01

Unavailable

2

GEAR, 2ND DRIVE (NT:16) | MODEL P/R/S/T This part replaces 24221-27A10.

24221-27A01

Unavailable

3

CIRCLIP

09380-25013

$4.53

4

GEAR, 3/4TH DRIVE (NT:17/20) | MODEL K/L/M/N

24231-27A00

Unavailable

4

GEAR, 3/4TH DRIVE (NT:17/20) | MODEL P/R/S/T This part replaces 24231-27A10.

24231-27A00

Unavailable

5

GEAR, 5TH DRIVE (NT:22)

24251-27A01

Unavailable

6

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$26.85

7

SNAP RING

09380-25003

$2.80

8

GEAR, 6TH DRIVE (NT:21) | MODEL K/L This part replaces 24261-17C00.

24261-17C02

Unavailable

8

GEAR, 6TH DRIVE (NT:21) | MODEL M/N/P/R/S/T This part replaces 24261-17C01.

24261-17C02

Unavailable

9

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

10

BEARING, LH | MODEL K/L/M/N/P/R This part replaces 09262-25051.

09262-25105

$53.00

10

BEARING, RH (25X62X17) | MODEL S/T

09262-25115

Unavailable

11

C RING | MODEL K/L/M/N/P/R This part replaces 09390-62006.

09390-62012

$6.69

11

C RING (60.2X63.7X2) | MODEL S/T

09390-62012

$6.69

12

OIL SEAL

09285-20006

$5.88

13

HOLDER, BEARING

24741-27A00

$11.37

14

SCREW | MODEL K/L/M/N/P/R

02122-06167

$1.45

14

SCREW | MODEL S/T This part replaces 02122-06163.

02122-0616A

$1.43

15

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

$59.98

16

PIN

04221-07129

$1.88

17

DRIVESHAFT

24131-20C00

Unavailable

18

GEAR, 1ST DRIVEN (NT:37) | MODEL K/L/M/N This part replaces 24311-19C01.

24311-19C10

Unavailable

18

GEAR, 1ST DRIVEN (NT:37) | MODEL P/R/S/T

24311-19C10

Unavailable

19

BUSH

09300-22008

$16.03

20

WASHER, RH

08211-20341

$3.05

21

WASHER, LH

08211-22341

$4.18

22

GEAR, 2ND DRIVEN (NT:33) | MODEL K/L/M/N

24321-20C00

Unavailable

22

GEAR, 2ND DRIVEN (NT:33) | MODEL P/R/S/T This part replaces 24321-20C10.

24321-20C00

Unavailable

23

BUSH

09300-28003

Unavailable

24

.SHIM (28X38X1) This part replaces 08211-28381.

09181-28195

$5.17

25

CIRCLIP | MODEL K/L/M This part replaces 08331-11289.

08331-31289

$2.28

25

CIRCLIP | MODEL N/P/R/S/T This part replaces 08331-31286.

08331-31289

$2.28

26

GEAR, 3RD DRIVEN (NT:28) | MODEL K/L/M/N

24331-27A00

Unavailable

26

GEAR, 3RD DRIVEN (NT:28) | MODEL P/R/S/T This part replaces 24331-27A10.

24331-27A00

Unavailable

27

BUSH

24332-27A00

Unavailable

28

WASHER, LH

09167-28001

$5.00

29

WASHER, RH (T:1.5)

09167-28002

$5.17

30

WASHER, RH (T:1.0)

09169-28001

$4.18

31

GEAR, 4TH DRIVEN (NT:28) | MODEL K/L/M This part replaces 24341-27A00.

24341-27A01

Unavailable

31

GEAR, 4TH DRIVEN (NT:28) | MODEL N/P/R/S/T

24341-27A01

Unavailable

32

BUSH

24332-27A00

Unavailable

33

WASHER, RH

09167-28001

$5.00

34

GEAR, 5TH DRIVEN (NT:27)

24351-27A00

Unavailable

35

GEAR, 6TH DRIVEN (NT:23) This part replaces 24361-20C00.

24361-20C01

Unavailable

36

BEARING, RH

09263-20040

$42.95

37

PIN (L:20)

04221-07209

$2.50

38

BEARING, LH | MODEL K/L/M/N/P/R

09262-25105

$53.00

38

BEARING, LH | MODEL S/T

09262-25115

Unavailable

39

C RING | MODEL K/L/M/N/P/R This part replaces 09390-62006.

09390-62012

$6.69

39

C RING | MODEL S/T

09390-62012

$6.69

40

OIL SEAL (34X62X6)

09283-34005

$11.37

41

PLATE

24751-27A01

Unavailable

42

BOLT | MODEL K/L/M/N/P/R This part replaces 01107-06107.

01500-06107

$2.07

42

BOLT | MODEL S/T This part replaces 01500-06123.

01500-0612A

$1.80

43

SPROCKET, ENGINE (NT:15) This part replaces 27510-17C00.

27510-17C10

$99.95

44

WASHER (25X40X1.5) This part replaces 08211-25402.

09181-25268

$2.90

45

SPACER

09180-25091

$21.60

46

NUT

09159-20004

$14.15

47

BOLT | MODEL K/L/M/N This part replaces 01147-06168.

01570-06167

$3.25

47

BOLT | MODEL P/R/S/T This part replaces 01570-06163.

01570-0616A

$2.24

48

WASHER

08212-06222

$1.95

49

CHAIN ASSY (RK50GSVZ3M,120LE) | MODEL K/L/M/N/P/R This part replaces 27600-20C00-118.

27600-24F20-120

$384.08

49

CHAIN ASSY (RK50GSVZ3M,120LE) | MODEL S/T This part replaces 27600-17C20-118.

27600-24F20-120

$384.08
