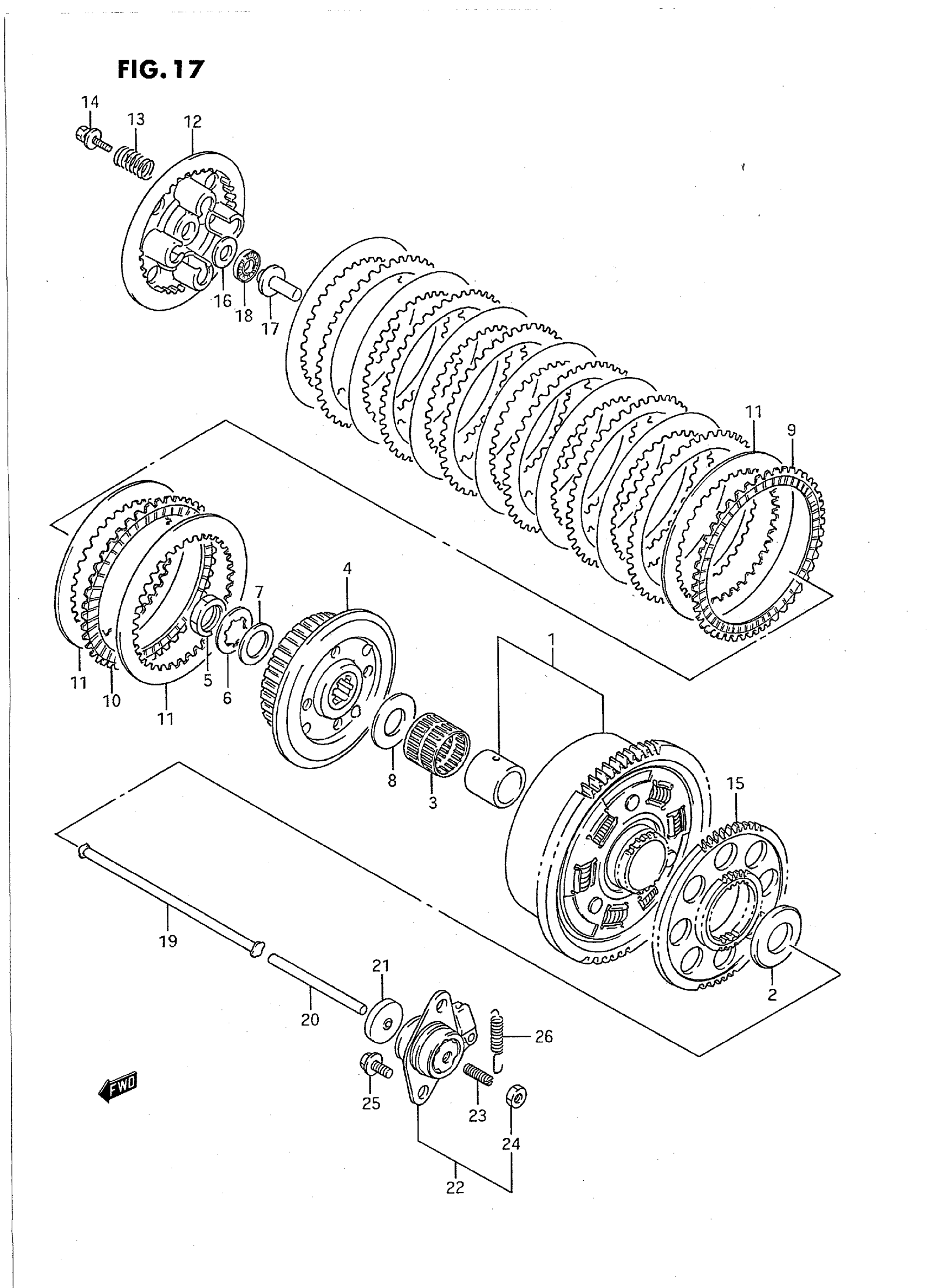

Find the part on the Clutch diagram for your 1996 Suzuki GSX750FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX750FT Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 21200-17831.

21200-17835

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 21200-17832.

21200-17835

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL P/R/S/T This part replaces 21200-17834.

21200-17835

1
Out of stock

2

WASHER

09160-25067

1
Out of stock

3

BEARING

09263-35017

1
Out of stock

4

HUB, SLEEVE | MODEL K/L/M/N/P/R This part replaces 21410-17C01.

21410-07D00

1
Out of stock

4

HUB, SLEEVE | MODEL S/T

21410-07D00

1
Out of stock

5

NUT

09140-24012

1
Out of stock

6

WASHER

09167-25007

1
Out of stock

7

WASHER, WAVE

09164-24006

1
Out of stock

8

.WASHER (25X50X2.5)

09160-25056

1
Out of stock

9

PLATE, DRIVE (T:2.2)

21441-20C00

7
Out of stock

10

PLATE, DRIVE,NO.2

21442-17C00

1
Out of stock

11

PLATE, DRIVEN (T:1.6)

21451-17C00

9
Out of stock

12

DISC, PRESSURE

21462-17C01

1
Out of stock

13

SPRING

09440-20018

4
Out of stock

14

BOLT (6X16) | MODEL K/L/M/N/P/R/S This part replaces 09116-06016.

09116-06168

4
Out of stock

14

BOLT (6X16) | MODEL T

09116-06168

4
Out of stock

15

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N/P This part replaces 22721-17C00.

22721-17C02

1
Out of stock

15

NO DESCRIPTION AVAILABLE | MODEL R/S/T This part replaces 22721-17C01.

22721-17C02

1
Out of stock

16

WASHER, CLUTCH PUSH | MODEL K/L/M/N/P This part replaces 09160-15015.

09160-15045

1
Out of stock

16

WASHER (15.5X28X1) | MODEL R/S/T

09160-15045

1
Out of stock

17

PIECE, PUSH This part replaces 23121-07A00.

23121-31E00

1
Out of stock

18

BEARING (15X28X2)

09263-15003

1
Out of stock

19

ROD, CLUTCH PUSH RH

23110-20C00

1
Out of stock

20

ROD

23111-31301

1
Out of stock

21

OIL SEAL

09285-06015

1
Out of stock

22

SCREW, CLUTCH RELEASE | Includes Item(s) 23 - 24

23200-20C00

1
Out of stock

23

SCREW

09134-06010

1
Out of stock

24

.NUT

08310-00067

1
Out of stock

25

BOLT | MODEL K/L/M/N/P This part replaces 01517-06167.

01550-06167

2
Out of stock

25

BOLT | MODEL R/S/T This part replaces 01550-06163.

01550-0616A

2
Out of stock

26

SPRING

09443-07038

1
Out of stock
