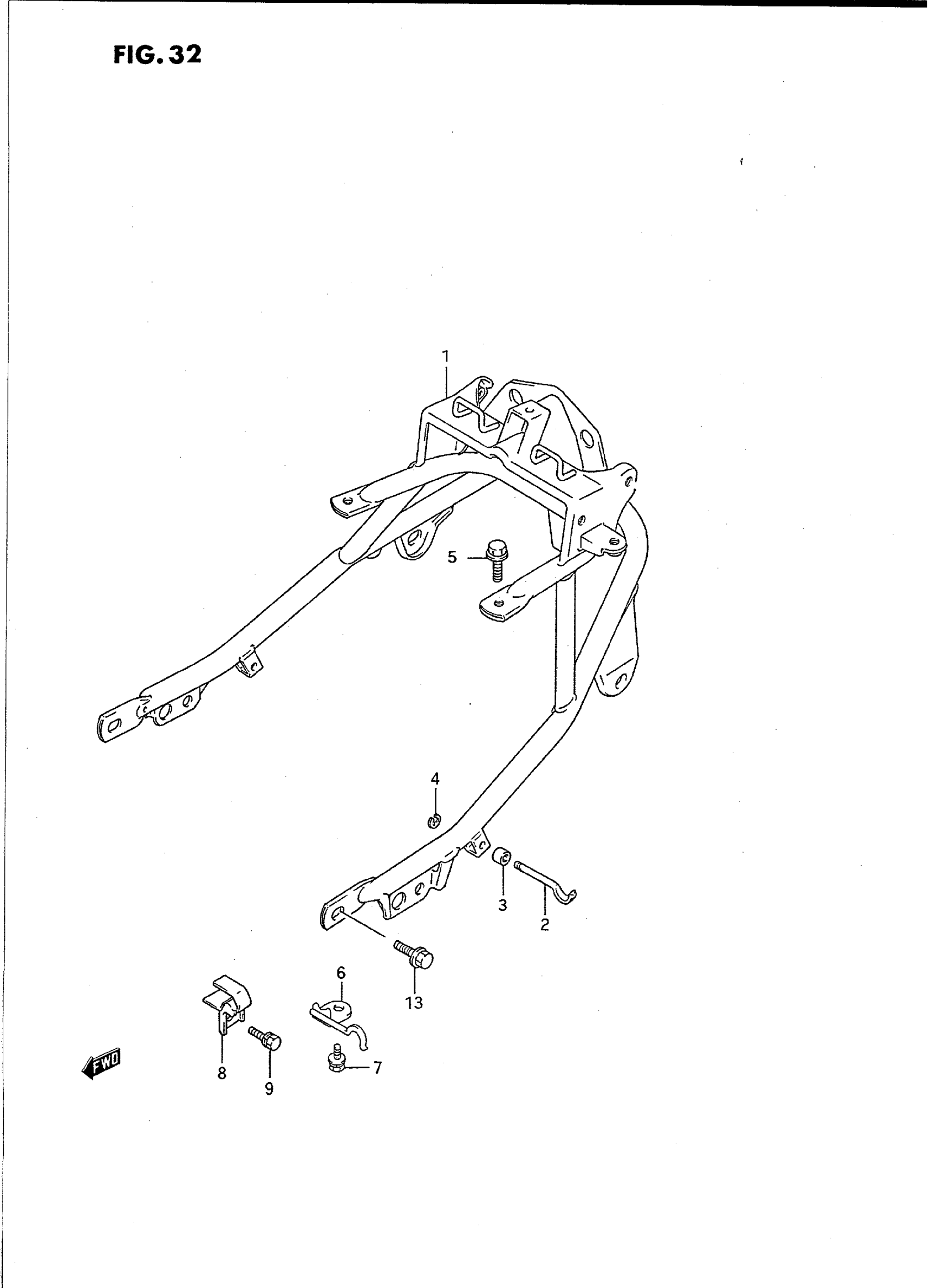

Suzuki GSX750FT (1996) TAIL LAMP BAR Diagram

#

Description
Price

1

BAR, REAR LAMP | MODEL K/L/M/N This part replaces 41580-20C00.

41580-20C02

Unavailable

1

BAR, REAR LAMP | MODEL P/R This part replaces 41580-20C01.

41580-20C02

Unavailable

1

BAR, REAR LAMP | MODEL S/T

41580-20C02

Unavailable

2

ROD, GRIP | MODEL K/L/M/N/P/R This part replaces 41625-34A00.

41625-34A01

Unavailable

2

ROD, GRIP | MODEL S/T

41625-34A01

Unavailable

3

SPACER

41626-33400

Unavailable

4

E RING This part replaces 08332-11045.

08332-1104A

$1.49

5

BOLT | MODEL K/L/M/N/P This part replaces 01517-08205.

01550-0820A

$2.23

5

BOLT | MODEL R/S/T This part replaces 01550-08203.

01550-0820A

$2.23

6

ROD, GRIP RH | MODEL K/L/M This part replaces 41620-20C00.

41620-20C02

Unavailable

6

ROD, GRIP RH | MODEL N/P/R This part replaces 41620-20C01.

41620-20C02

Unavailable

6

ROD, GRIP RH | MODEL S/T

41620-20C02

Unavailable

6

ROD, GRIP LH | MODEL K/L/M This part replaces 41630-20C00.

41630-20C02

Unavailable

6

ROD, GRIP LH | MODEL N/P/R This part replaces 41630-20C01.

41630-20C02

Unavailable

6

ROD, GRIP LH | MODEL S/T

41630-20C02

Unavailable

7

BOLT | MODEL K/L/M/N/P This part replaces 01187-08165.

01580-0816A

$3.30

7

BOLT | MODEL R/S/T This part replaces 01580-08163.

01580-0816A

$3.30

8

HOLDER, HELMET

95720-20C00

Unavailable

9

BOLT | MODEL K/L/M/N/P/R/S This part replaces 01137-06205.

01570-0620A

$2.19

9

BOLT | MODEL T This part replaces 01570-06163.

01570-0616A

$2.23
