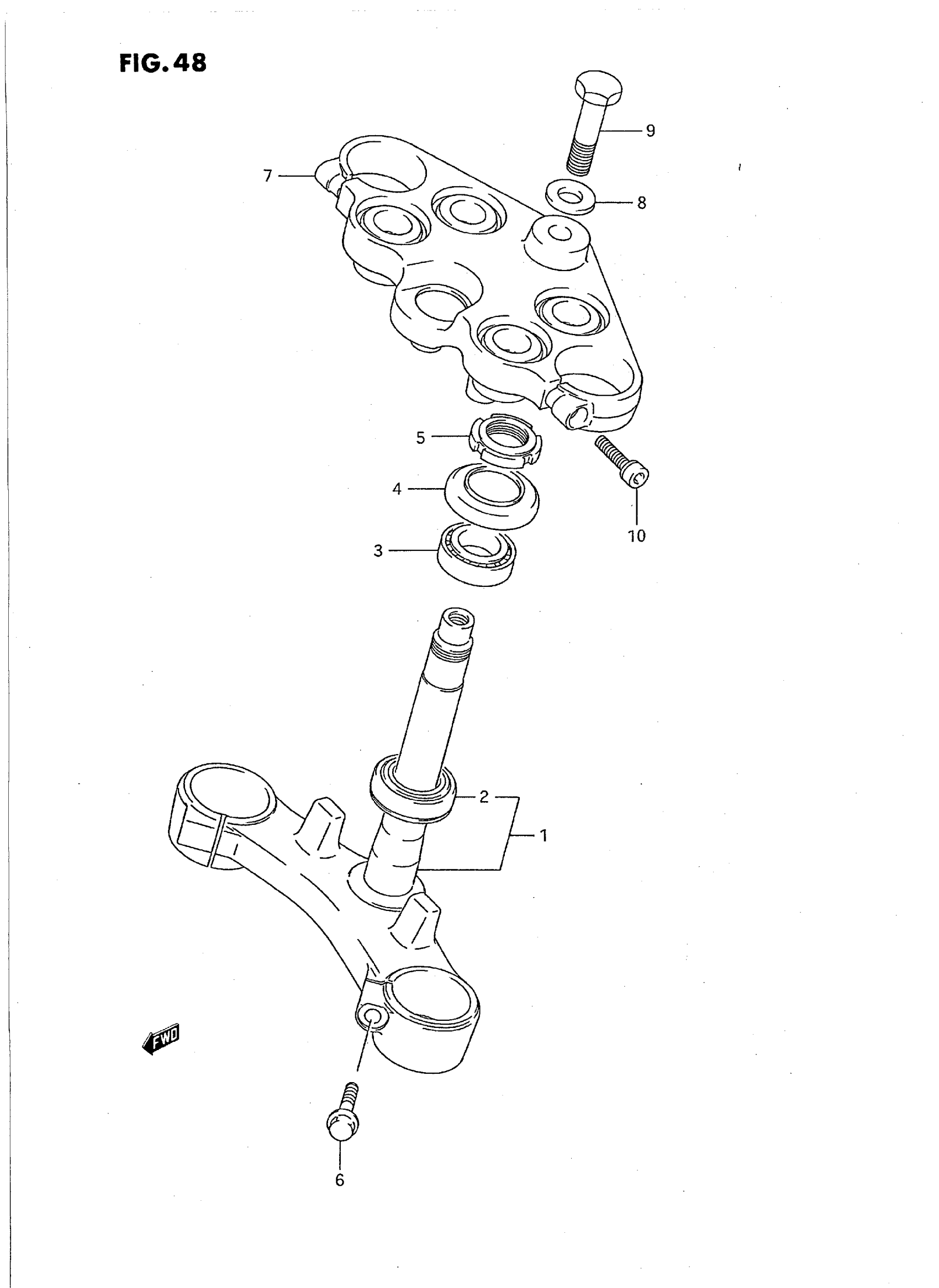

Suzuki GSX750FT (1996) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | MODEL K/L This part replaces 51410-19C01.

51410-19C02

Unavailable

1

STEM, STEERING | MODEL M/N/P/R/S/T; Includes Item(s) 2

51410-19C02

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BEARING, UPPER

09265-25008

Unavailable

4

SEAL, STEERING DUST | MODEL K/L/M/N/P This part replaces 51643-49001.

51643-49002

$12.32

4

DUST SEAL | MODEL R/S/T

51643-49002

$12.32

5

NUT, STEERING STEM

51631-28000

$17.37

6

BOLT | MODEL K/L/M/N/P/R This part replaces 01517-10405.

01550-1040A

$3.55

6

BOLT | MODEL S/T This part replaces 01550-10403.

01550-1040A

$3.55

7

BRACKET, UPPER

51311-20C00

Unavailable

8

WASHER

51356-43530

$6.55

9

BOLT, UPPER

51352-20C00

Unavailable

10

BOLT, STEERING DAMPER | MODEL K/L/M/N/P/R This part replaces 07110-08305.

07130-0830A

$1.74

10

BOLT, STEERING DAMPER | MODEL S/T This part replaces 07130-08303.

07130-0830A

$1.74
