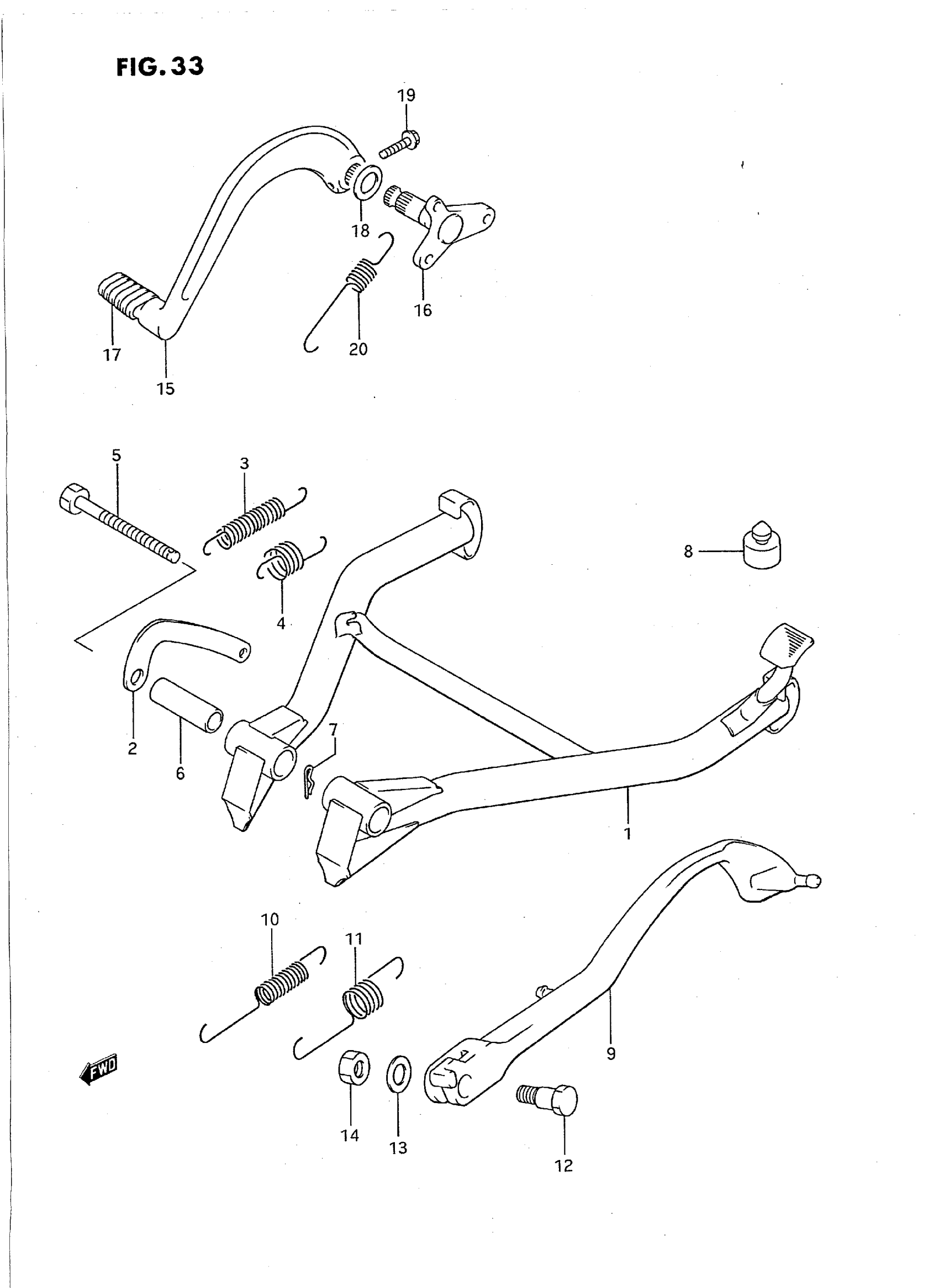

Suzuki GSX750FT (1996) STAND Diagram

#

Description
Price

1

STAND SET, CENTER | MODEL K/L/M This part replaces 42100-19841.

42100-19843

Unavailable

1

STAND SET, CENTER | MODEL N/P/R This part replaces 42100-19842.

42100-19843

Unavailable

1

STAND SET, CENTER | MODEL S/T; Includes Item(s) 2 - 8

42100-19843

Unavailable

2

HOOK, SPRING

42251-19C00

Unavailable

3

SPRING This part replaces 09443-15039.

09443-15039-XC0

Unavailable

4

SPRING, OUTER

09443-22009

$9.59

5

BOLT | MODEL K/L/M/N/P

09117-10029

Unavailable

5

ARM, BRAKE ROD | MODEL R/S/T This part replaces 01580-10603.

01580-1060B

$6.05

6

SPACER

09180-10040

$2.56

7

CLIP | MODEL K/L/M/N/P

09385-10005

$1.56

8

CUSHION

09321-10017

$6.38

9

STAND, PROP

42310-19C01

Unavailable

10

SPRING, NO.1

09443-12036

$7.84

11

SPRING, NO.2

09443-19010

$6.51

12

BOLT

09111-10036

$4.82

13

SHIM

08221-12224

$1.96

14

NUT | MODEL K/L/M/N/P This part replaces 08310-22105.

09140-10043

$2.68

14

NUT | MODEL R/S

09140-10043

$2.68

14

NUT | MODEL T

09159-10097

$5.66

15

PEDAL, BRAKE | MODEL K/L/M/N/P/R This part replaces 43110-19C00.

43110-19C02

Unavailable

15

PEDAL, BRAKE | MODEL S/T This part replaces 43110-19C01.

43110-19C02

Unavailable

16

ARM, BRAKE PEDAL ROD

43120-19C00

Unavailable

17

RUBBER

43151-04701

$5.80

18

WASHER, BRAKE BOSS

43212-04A00

$2.13

19

BOLT | MODEL K/L/M/N/P/R

01547-06257

$2.03

19

BOLT, FINAL GEAR CASE COVER | MODEL S/T This part replaces 01547-06253.

01547-0625B

$2.45

20

SPRING

09443-13028

$7.57
