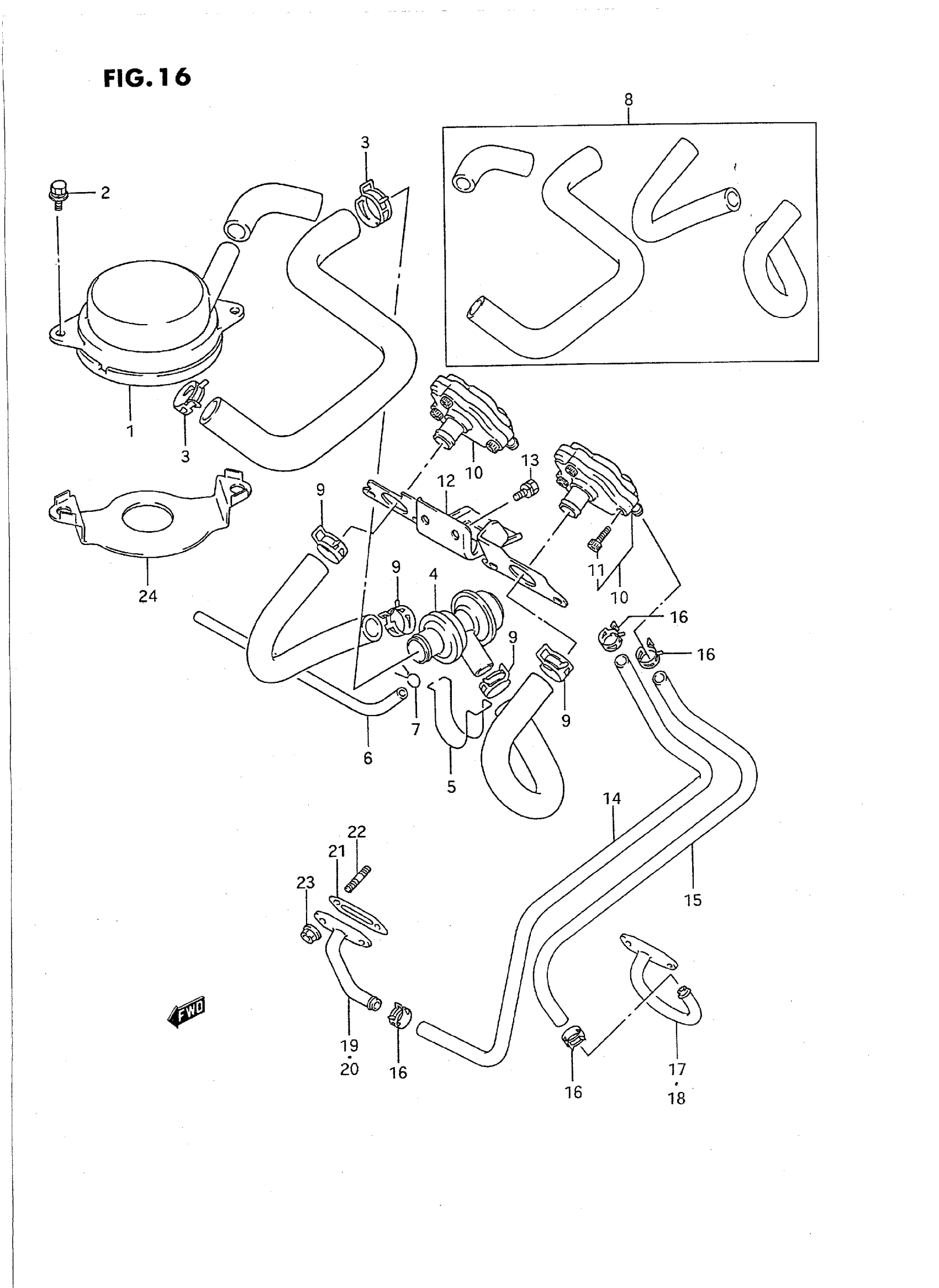

Suzuki GSX750FT (1996) SECOND AIR (CALIFORNIA ONLY) Diagram

#

Description
Price

1

CLEANER ASSY, 2ND AIR | MODEL K/L/M/N This part replaces 18700-48B02.

18700-17C03

Unavailable

1

CLEANER ASSY, 2ND AIR | MODEL P/R/S This part replaces 18700-48B03.

18700-17C03

Unavailable

1

CLEANER ASSY, 2ND AIR | MODEL T

18700-17C03

Unavailable

2

BOLT | MODEL K/L/M/N This part replaces 01177-06128.

01580-06127

$3.30

2

BOLT | MODEL P/R This part replaces 01177-06168.

01580-06167

$3.33

2

BOLT | MODEL S/T This part replaces 01580-06163.

01580-0616A

$2.42

3

CLIP

09401-25402

Unavailable

4

VALVE ASSY, AIR SWITCHING

18510-20C00

Unavailable

5

CLAMP, SWITCHING VALVE

18522-17C00

Unavailable

6

HOSE, VACUUM | L:600->250

09359-45852-600

Unavailable

7

CLIP

09401-07401

Unavailable

8

HOSE SET, 2ND AIR NO.2

18420-19810

Unavailable

9

CLIP | MODEL K/L/M/N/P/R

09401-21401

Unavailable

9

CLIP | MODEL S/T

09401-21403

Unavailable

10

VALVE ASSY, 2ND AIR REED | Includes Item(s) 11 - 11

18450-48B00

Unavailable

11

BOLT | MODEL K/L/M/N/P/R This part replaces 07110-05167.

07130-05167

$3.15

11

BOLT | MODEL S/T

07130-05167

$3.15

12

BRACKET, REED VALVE

18470-19C01

Unavailable

13

BOLT | MODEL K/L/M/N/P/R This part replaces 01137-06167.

01570-06167

$3.03

13

BOLT | MODEL S/T This part replaces 01570-06163.

01570-0616A

$2.23

14

HOSE, 2ND AIR NO.1 INSIDE | MODEL K/L/M/N/P/R/S

18445-20C00

Unavailable

14

HOSE, 2ND AIR NO.1 | MODEL T This part replaces 18446-20C00.

18446-20810

Unavailable

15

HOSE, 2ND AIR NO.1 This part replaces 18446-20C00.

18446-20810

Unavailable

16

CLAMP | MODEL K/L/M/N/P/R This part replaces 09401-13408.

09401-13417

$2.26

16

CLAMP | MODEL S/T This part replaces 09401-13413.

09401-13417

$2.26

17

PIPE, 2ND AIR,NO.1 | LH

18410-20C00

Unavailable

18

PIPE, 2ND AIR,NO.4 | RH

18440-20C00

Unavailable

19

PIPE, 2ND AIR,NO.2 | ML

18420-20C00

Unavailable

20

PIPE, 2ND AIR,NO.3 | MR

18430-20C00

Unavailable

21

GASKET, 2ND AIR PIPE | MODEL K/L/M This part replaces 18441-17C00.

18441-17C11

$7.25

21

GASKET, 2ND AIR PIPE | MODEL N/P/R/S/T This part replaces 18441-17C10.

18441-17C11

$7.25

22

BOLT,STUD | MODEL K/L/M/N/P/R This part replaces 01421-06125.

01421-0612A

Unavailable

22

BOLT,STUD | MODEL S/T This part replaces 01421-06163.

01421-0616A

$1.91

23

NUT | MODEL K/L/M/N/P This part replaces 08316-16064.

08316-1006B

$2.50

23

NUT | MODEL R/S/T This part replaces 08316-10063.

08316-1006B

$2.50

24

HOLDER, 2ND AIR CLEANER | MODEL N/P/R/S/T

18761-41C00

Unavailable
