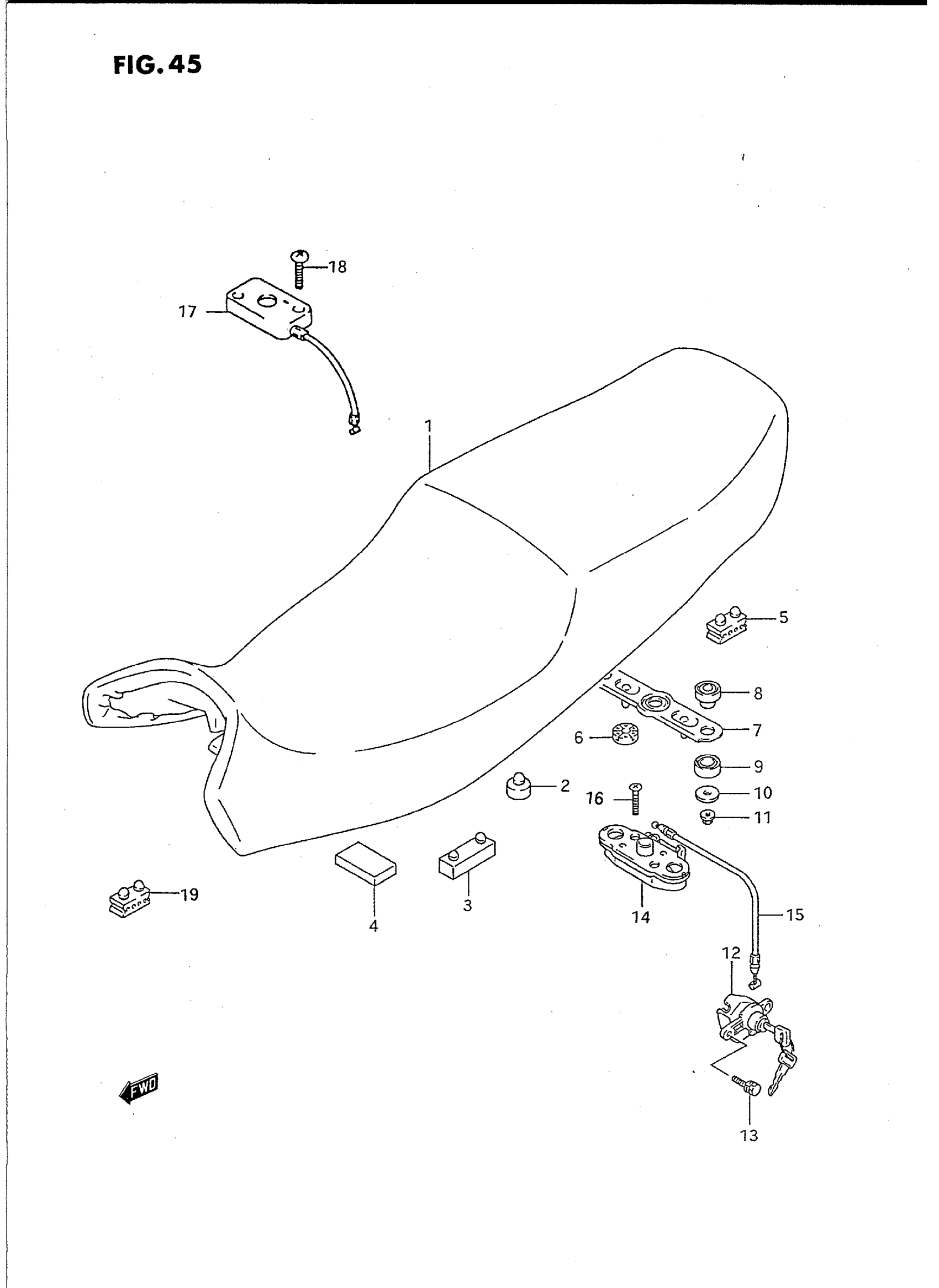

Suzuki GSX750FT (1996) SEAT Diagram

#

Description
Price

1

SEAT ASSY | MODEL K This part replaces 45100-20C00-58R.

45100-20C06-58R

Unavailable

1

SEAT ASSY | MODEL L This part replaces 45100-20C02-58R.

45100-20C06-58R

Unavailable

1

SEAT ASSY | MODEL M/N This part replaces 45100-20C04-58R.

45100-20C06-58R

Unavailable

1

SEAT SET (BLACK) | MODEL P This part replaces 45100-20C20-58R.

45100-20C21-58R

Unavailable

1

SEAT SET (BLACK) | MODEL R This part replaces 45100-20C21-6VS.

45100-20C21-58R

Unavailable

1

SEAT SET (BLACK) | MODEL S FOR 19AMODEL T FOR 33J,Y98

45100-20C21-58R

Unavailable

1

SEAT SET (PURPLE) | MODEL S FOR 33J; Includes Item(s) 2 - 11

45100-20C21-6WT

Unavailable

2

CUSHION | MODEL K/L

09321-10012

$2.92

3

CUSHION | MODEL K/L

45149-43500

$6.85

4

CUSHION | MODEL K

94982-29400

$2.28

5

CUSHION | MODEL K/LMODEL M/N/P/R/S/T

45149-31300

$3.56

6

CUSHION

45213-13601

$2.79

7

STRIKER, SEAT LOCK

45210-48B20

Unavailable

8

CUSHION, STRIKER UPPER

09320-10038

$2.61

9

CUSHION, STRIKER LOWER

09320-14017

$2.35

10

WASHER

08212-06201

$1.67

11

NUT This part replaces 08316-20063.

08316-2006A

$2.63

12

CAP SET,SEAT | MODEL K/L This part replaces 45700-19C00-KEY.

45700-19841

Unavailable

12

CAP SET,SEAT | MODEL M/N/P/R/S/T This part replaces 45700-19840.

45700-19841

Unavailable

13

BOLT | MODEL K/L/M/N This part replaces 01137-06165.

01570-0616A

$2.23

13

BOLT | MODEL P

01570-06167

$3.03

13

BOLT | MODEL R/S/T This part replaces 01570-06163.

01570-0616A

$2.23

14

BRACKET, SEAT SUPPORT | MODEL K/L/M/N This part replaces 45220-20A00.

45220-47H00

$138.38

14

BRACKET, SEAT SUPPORT | MODEL P/R/S/T This part replaces 45220-20A01.

45220-47H00

$138.38

15

CABLE, SEAT LOCK

45280-20C00

Unavailable

16

SCREW | MODEL K/L/M/N This part replaces 02122-06305.

02122-0630B

$2.06

16

SCREW | MODEL P/R This part replaces 02122-06308.

02122-0630B

$2.06

16

SCREW | MODEL S/T This part replaces 02122-06303.

02122-0630B

$2.06

17

BRACKET, SEAT REAR NO.2 | MODEL P/R/S/T

45220-06C00

Unavailable

18

SCREW | MODEL P/R This part replaces 02122-06208.

02122-0620A

$1.49

18

SCREW | MODEL S/T This part replaces 02122-06203.

02122-0620A

$1.49

19

CUSHION, SEAT FRONT | MODEL P/R/S/T

45149-31300

$3.56
