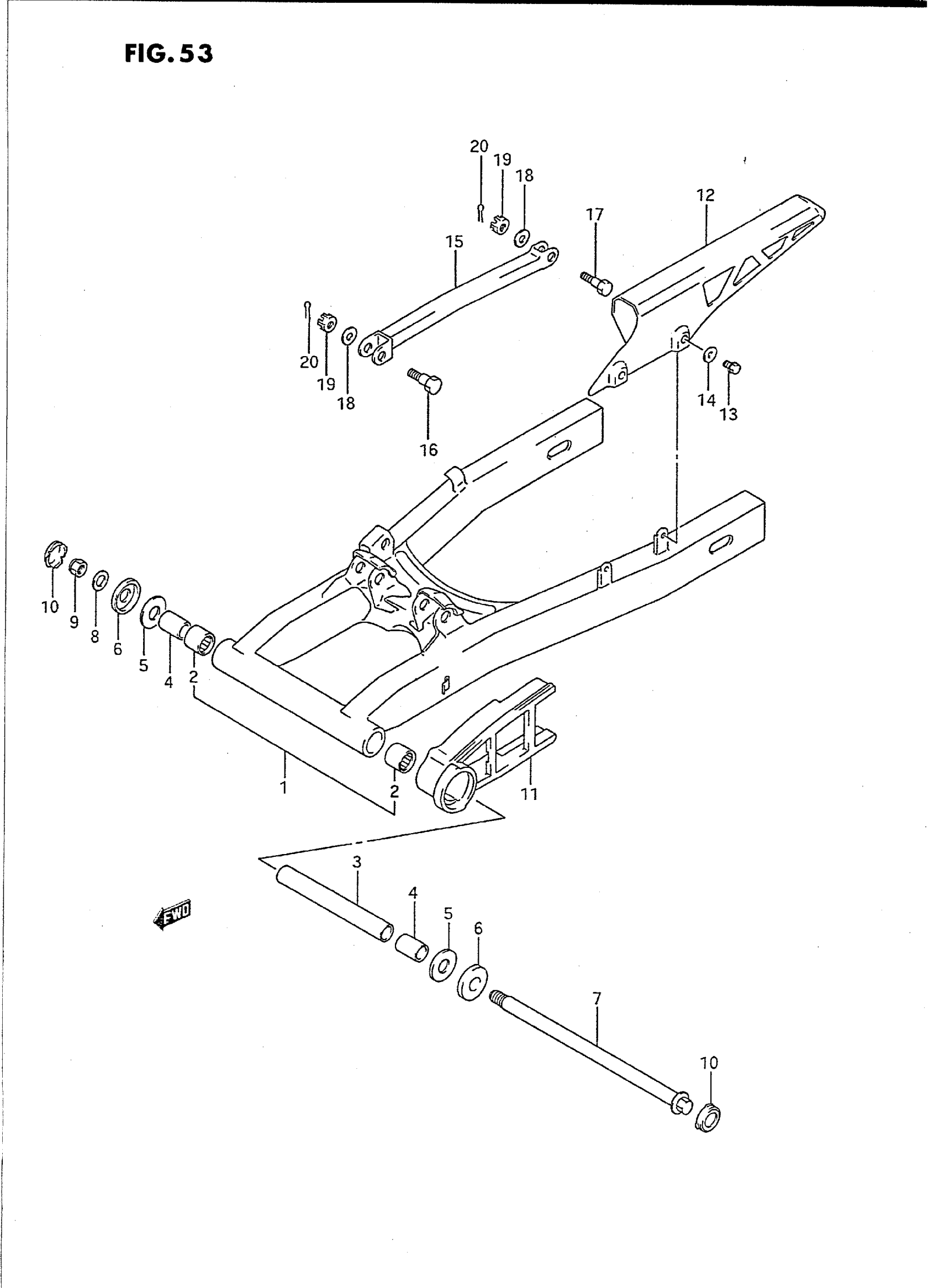

Suzuki GSX750FT (1996) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 This part replaces 61000-20C01-13L.

61000-20C02-13L

Unavailable

2

BEARING

09263-22017

$22.58

3

SPACER, CENTER

61282-20C00

Unavailable

4

SPACER, PIVOT BEARING

61251-38B00

$19.82

5

WASHER

08211-16341

$2.39

6

COVER DUST SEAL This part replaces 61262-32410.

61262-32411

$9.72

7

SHAFT, SWINGING ARM PIVOT

61211-20C00

Unavailable

8

WASHER

09160-14015

Unavailable

9

NUT | MODEL K/L/M/N/P This part replaces 09159-14013.

09159-14019

$11.61

9

NUT | MODEL R/S/T

09159-14019

$11.61

10

CAP, SWINGING ARM PIVOT

61222-43400

$5.24

11

BUFFER,CHAIN TO This part replaces 61273-20C00.

61273-20C01

$40.32

12

CASE, CHAIN

61310-27A01

$80.83

13

BOLT | MODEL K This part replaces 01517-06105.

01550-0610A

$1.97

13

STOPPER, CL RLSE CAM SHAFT | MODEL L/M/N/P This part replaces 02142-06104.

02142-0610A

$1.49

13

STOPPER, CL RLSE CAM SHAFT | MODEL R This part replaces 02142-06103.

02142-0610A

$1.49

13

SCREW | MODEL S/T This part replaces 02142-06123.

02142-0612A

$1.49

14

WASHER

09169-06026

$2.20

15

TORQUE LINK, REAR (BLACK) | MODEL K/L This part replaces 64310-20C00-291.

64310-20C00-019

Unavailable

15

TORQUE LINK, REAR (BLACK) | MODEL M/N This part replaces 64310-20C00-13L.

64310-20C00-019

Unavailable

15

TORQUE LINK, REAR (BLACK) | MODEL P/R/S/T

64310-20C00-019

Unavailable

16

BOLT, FRONT

09111-10016

Unavailable

17

BOLT, REAR

09101-10036

$5.28

18

WASHER This part replaces 09160-10069.

09160-10005

$1.87

19

NUT | MODEL K/L/M/N/P This part replaces 08314-41108.

08314-4010B

$2.50

19

NUT | MODEL R/S/T This part replaces 08314-40103.

08314-4010B

$2.50

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
