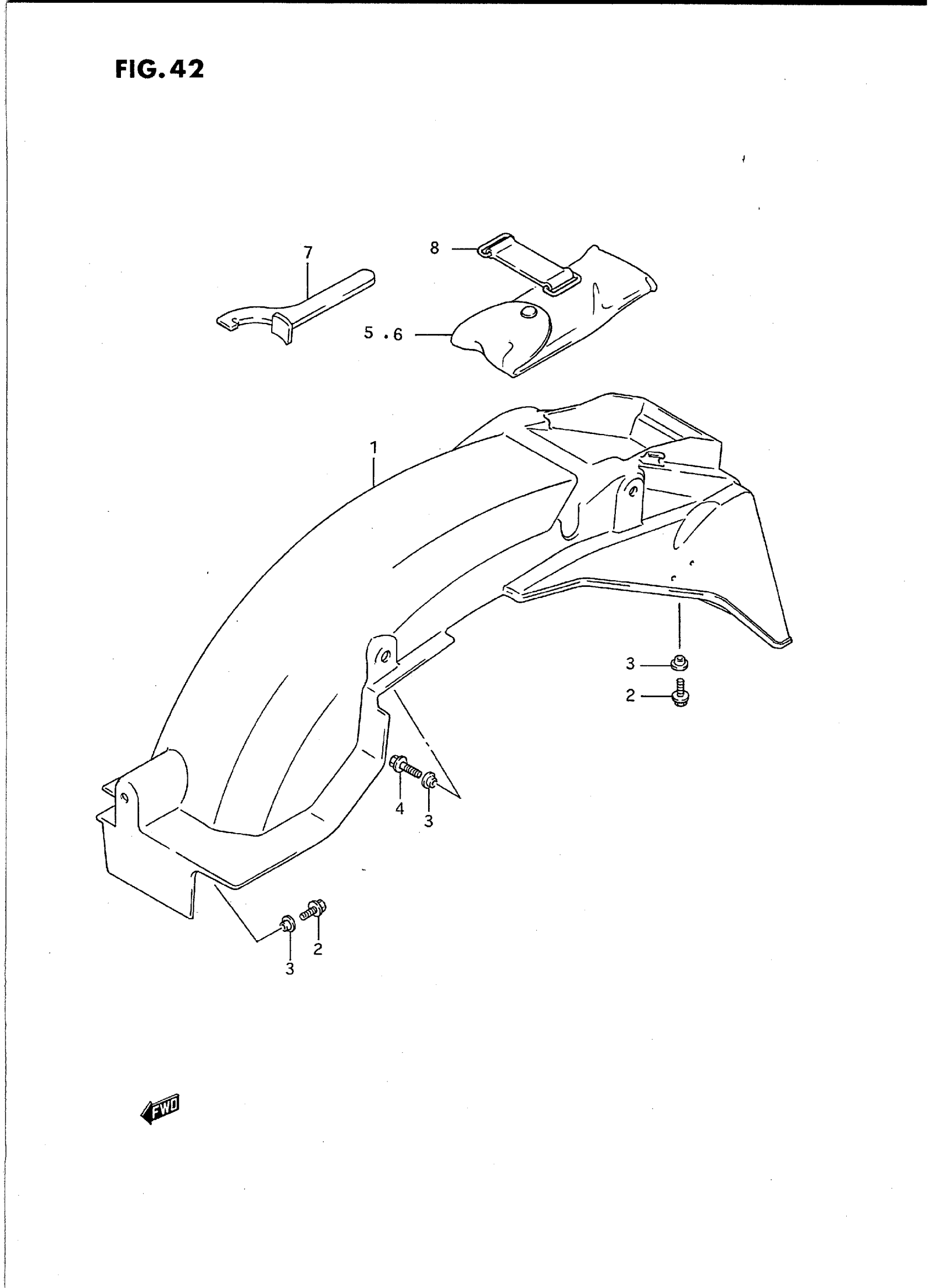

Suzuki GSX750FT (1996) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER

63111-20C30

$210.85

1

BODY, REAR FENDER | CALIFORNIA ONLY

63111-20C40

Unavailable

2

BOLT (6x10)

09128-06058

$1.98

3

WASHER

09169-06037

$2.45

4

BOLT, SIDE (6X20) | MODEL K/L/M/N/P/R/S

09128-06023

Unavailable

4

BOLT | MODEL T This part replaces 01550-06203.

01550-0620A

$1.97

5

TOOL ASSY | MODEL K/L/M/N/P This part replaces 09800-20015.

09800-21017

$76.62

6

TOOL ASSY | MODEL R/S/T

09800-21017

$76.62

7

CLAMP, WRENCH | MODEL R/S/T

09822-00005

$15.16

8

BAND, TOOL

09462-00034

$4.24

9

MANUAL, OWNER'S | MODEL K

99011-20C50-03A

Unavailable

9

MANUAL, OWNER'S | MODEL L This part replaces 99011-20C51-03A.

99011-20C53-03A

Unavailable

9

MANUAL, OWNER'S | MODEL M This part replaces 99011-20C52-03A.

99011-20C53-03A

Unavailable

9

MANUAL, OWNER'S | MODEL N

99011-20C53-03A

Unavailable

9

MANUAL, OWNER'S | MODEL P

99011-20C54-03A

Unavailable

9

MANUAL, OWNER'S | MODEL R

99011-20C55-03A

Unavailable

9

MANUAL, OWNER'S | MODEL S

99011-20C56-03A

Unavailable

9

MANUAL, OWNER'S | MODEL TDRAWING NOT SHOWN

99011-20C57-03A

Unavailable
