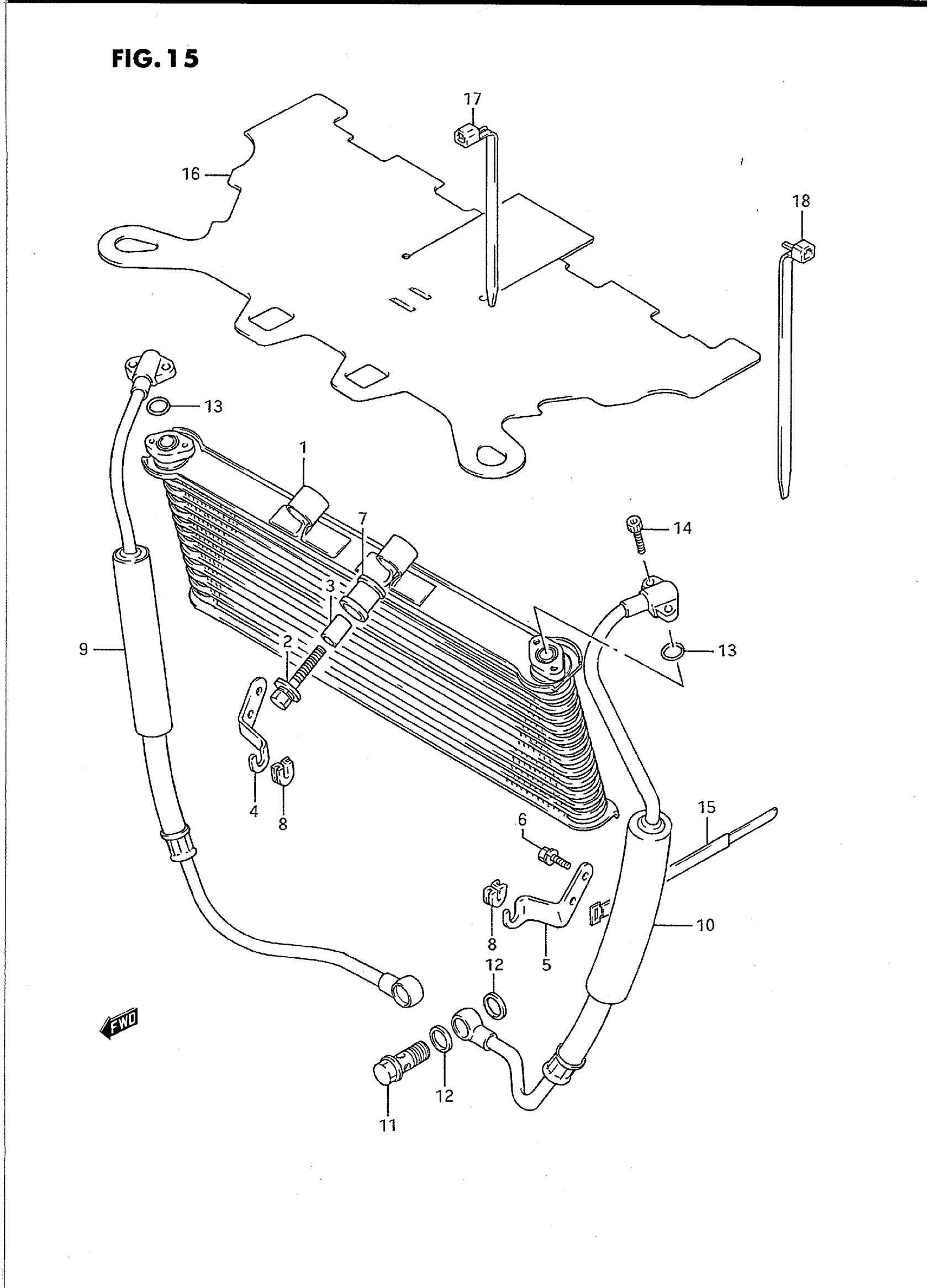

Suzuki GSX750FT (1996) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL | MODEL K/L/M/P/R/S This part replaces 16600-20C02.

16600-20C03

Unavailable

1

COOLER ASSY, OIL | MODEL T

16600-20C03

Unavailable

2

BOLT (8X40)

09118-08131

$3.15

3

SPACER This part replaces 09180-08124.

09180-08304

$6.80

4

BRACKET, OIL COOLER,RH

16621-20C02

Unavailable

5

BRACKET, OIL COOLER,LH

16622-20C02

Unavailable

6

BOLT | MODEL K/L/M/N/P This part replaces 01137-06165.

01570-0616A

$2.23

6

BOLT | MODEL R/S/T This part replaces 01570-06163.

01570-0616A

$2.23

7

CUSHION, NO.1

16629-27A01

$4.52

8

CUSHION, NO.2

16628-27A00

$2.92

9

HOSE, OIL COOLER,RH | MODEL K/L/M/N/P This part replaces 16460-20C02.

16460-20C03

Unavailable

9

HOSE, OIL COOLER,RH | MODEL R/S/T

16460-20C03

Unavailable

10

HOSE, OIL COOLER,LH | MODEL K This part replaces 16470-20C00.

16470-20C03

Unavailable

10

HOSE, OIL COOLER,LH | MODEL L/M/N/P This part replaces 16470-20C02.

16470-20C03

Unavailable

10

HOSE, OIL COOLER,LH | MODEL R/S/T

16470-20C03

Unavailable

11

BOLT, UNION

09360-16002

$14.34

12

GASKET

09168-16002

$1.91

13

O RING

09280-12008

$2.76

14

BOLT | MODEL K/L/M/N/P This part replaces 07110-06165.

07130-0616B

$2.39

14

BOLT | MODEL R/S/T This part replaces 07130-06163.

07130-0616B

$2.39

15

CLAMP(L:250) | MODEL K/L/M/N/P This part replaces 09407-25301.

09407-25302

Unavailable

15

CLAMP, OIL HOSE | MODEL R/S/T

09407-25401

$4.66

16

PLATE, AIR GUIDE This part replaces 94451-20C00.

94451-20C01

Unavailable

16

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 94451-20C10.

94451-20C11

Unavailable

17

CLAMP (L:165)

09407-18402

$2.19

18

CLAMP (L:235)

09407-25401

$4.66
