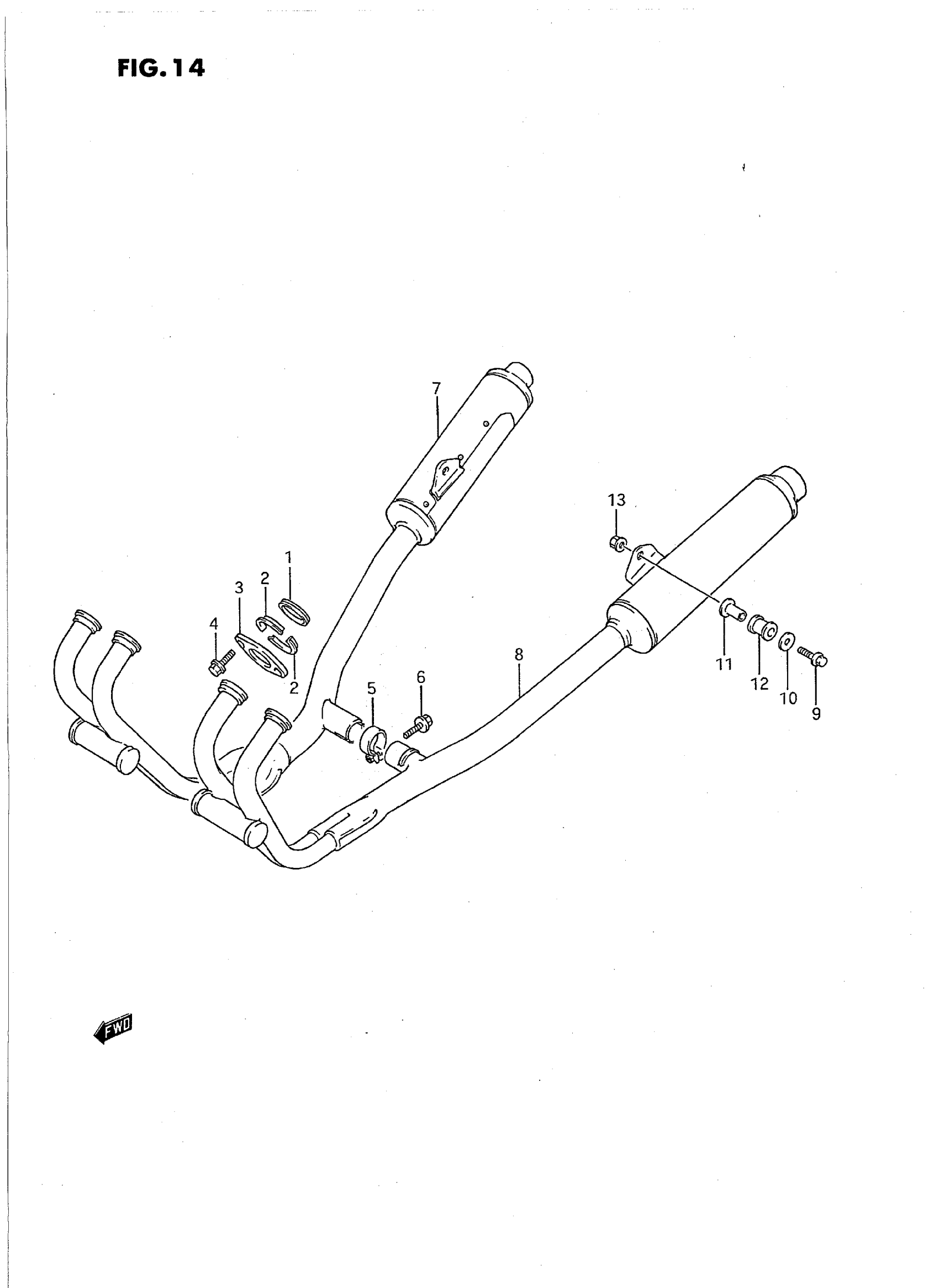

Suzuki GSX750FT (1996) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST | MODEL K This part replaces 14181-17C00.

14181-18C00

$7.22

1

.GASKET,EXHAUST | MODEL L/M/N/P/R/S/T

14181-18C00

$7.22

2

PLATE, EXHAUST PIPE

14155-27A00

$3.56

3

CLAMP, EXHAUST PIPE | MODEL K/L/M/N/P/R/S

14182-27A00

Unavailable

3

CLAMP, EXHAUST PIPE | MODEL T

14182-26D00

$37.53

4

BOLT | MODEL K/L/M/N/P This part replaces 07120-08255.

07120-0825B

$3.49

4

BOLT | MODEL R/S/T This part replaces 07120-08253.

07120-0825B

$3.49

5

CLAMP

14772-19C00

Unavailable

6

BOLT | MODEL K/L/M/N/P This part replaces 01517-06254.

01550-0625A

$1.97

6

BOLT | MODEL R/S/T This part replaces 01550-06253.

01550-0625A

$1.97

7

MUFFLER ASSY, RH | MODEL K/L/M/N This part replaces 14305-20C10-H01.

14305-20C11-H01

Unavailable

7

MUFFLER ASSY, RH | MODEL P/R/S/T

14305-20C11-H01

Unavailable

8

MUFFLER ASSY, LH | MODEL K/L/M/N This part replaces 14306-20C10-H01.

14306-20C11-H01

Unavailable

8

MUFFLER ASSY, LH | MODEL P/R/S/T

14306-20C11-H01

Unavailable

9

BOLT (8X55)

09103-08256

$5.20

10

WASHER (8.5X33X1.5) This part replaces 09160-08106.

09160-08146

$2.60

11

SPACER

09180-08156

$6.70

12

CUSHION

09320-12049

$10.68

13

NUT | MODEL K/L/M/N/P This part replaces 08316-26085.

08316-2008A

$2.70

13

NUT | MODEL R This part replaces 08316-26083.

08316-2008A

$2.70

13

NUT | MODEL S/T This part replaces 08316-20083.

08316-2008A

$2.70
