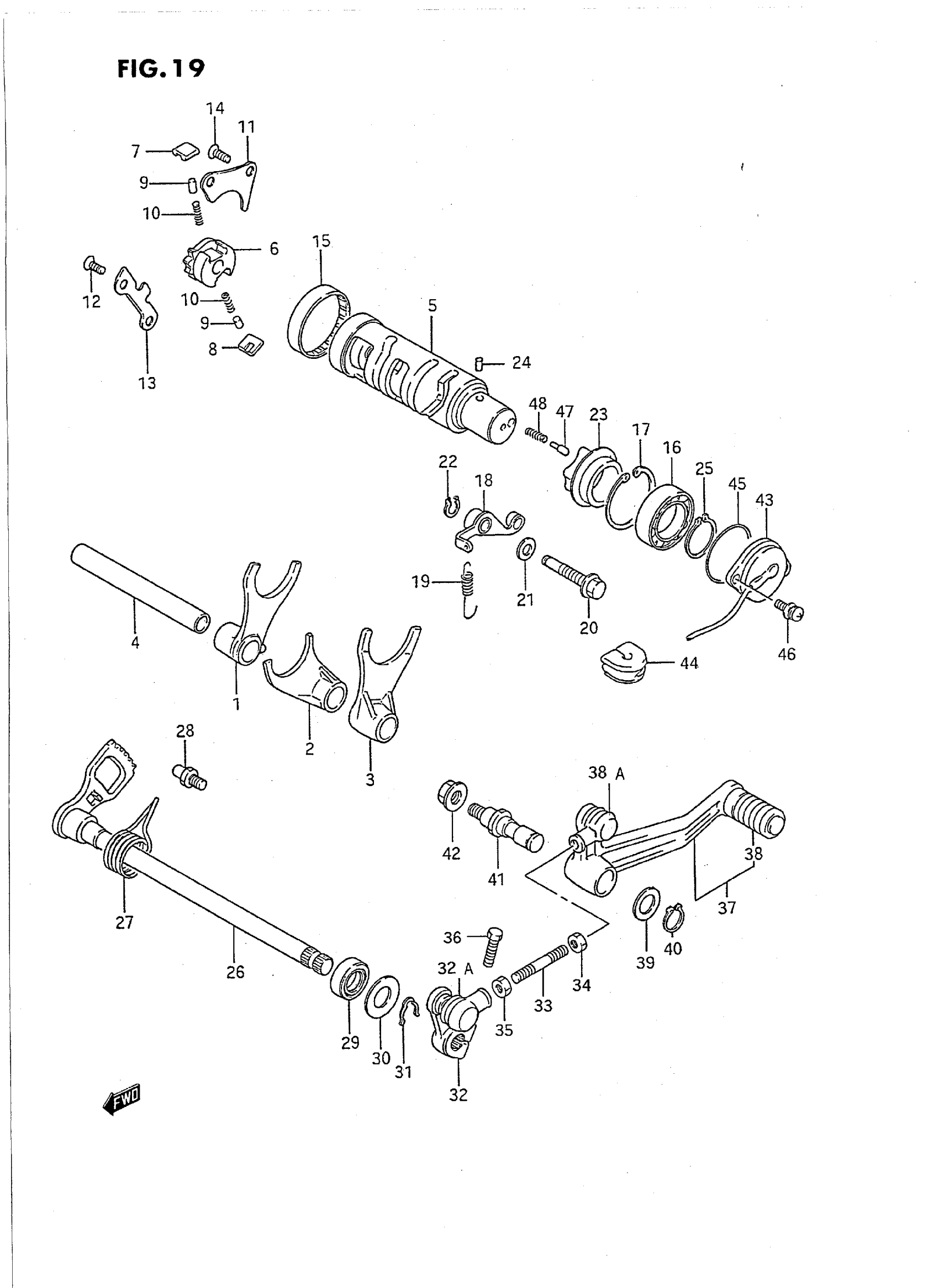

Suzuki GSX750FT (1996) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-27A00.

25211-27A12

Unavailable

2

FORK, GEAR SHIFTING NO.2

25221-27A01

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-27A00

Unavailable

4

SHAFT, GEAR SHIFTING FORK

25411-27A00

$29.25

5

CAM, GEAR SHIFT This part replaces 25310-27A02.

25310-27A03

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

9

PIN

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER,GEAR SHI This part replaces 25331-31301.

25331-31310

$8.93

12

SCREW | MODEL K/L/M/N/P/R This part replaces 02122-06128.

02122-06127

$1.84

12

SCREW | MODEL S/T This part replaces 02122-06123.

02122-0612A

$1.49

13

GUIDE, CAM

25341-27A00

Unavailable

14

SCREW | MODEL K/L/M/N/P/R This part replaces 02122-06128.

02122-06127

$1.84

14

SCREW | MODEL S/T This part replaces 02122-06123.

02122-0612A

$1.49

15

BEARING, RH

09263-43001

$33.18

16

BEARING

08113-69050

$35.66

17

CIRCLIP This part replaces 08331-41426.

08331-41429

$2.41

18

STOPPER, CAM

25350-27A00

$16.87

19

SPRING

09443-09031

$3.13

20

SHAFT, STOPPER

25353-27A00

Unavailable

21

WASHER

09168-10002

$2.13

22

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.78

23

PLATE, STOPPER

25381-38400

Unavailable

24

PIN | MODEL K/L/M/N/P/R/S This part replaces 06211-04063.

04221-04069

$2.12

24

PIN | MODEL T

04221-04069

$2.12

25

CIRCLIP

08331-31256

$1.49

26

SHAFT, GEAR SHIFT | MODEL K/L/M/N/P This part replaces 25510-19C00.

25510-19C01

Unavailable

26

SHAFT, GEAR SHIFTING | MODEL R/S/T

25510-19C01

Unavailable

27

SPRING

09444-26017

$4.60

28

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

30

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.97

31

CIRCLIP | MODEL K/L/M/N/P This part replaces 09384-12001.

08331-3112A

$1.78

31

CIRCLIP | MODEL R/S/T This part replaces 08331-31126.

08331-3112A

$1.78

32

ARM,GEAR SHIFT | Includes Item(s) 32A This part replaces 25520-19C02.

25520-19C03

$34.66

32A

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

33

ROD, GEAR SHIFT LINK | MODEL K/L/M/N This part replaces 25525-27A10.

25525-27A30

Unavailable

33

ROD, GEAR SHIFT LINK | MODEL P/R/S This part replaces 25525-27A20.

25525-27A30

Unavailable

33

ROD, GEAR SHIFT LINK | MODEL T

25525-27A30

Unavailable

34

NUT

09140-06011

$1.49

35

.NUT

08310-00067

$2.13

36

BOLT | MODEL K/K/M/N/P This part replaces 01107-06257.

01500-06257

$1.97

36

BOLT | MODEL R/S/T

01500-06257

$1.97

37

LEVER ASSY,GEAR | MODEL K/L This part replaces 25600-19C03.

25600-19C05

$126.67

37

LEVER ASSY,GEAR | MODEL M/N/P/R/S/T; Includes Item(s) 38 - 38A This part replaces 25600-19C04.

25600-19C05

$126.67

38

RUBBER

25652-20C00

$5.44

38A

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

39

WASHER (12.5X20X1)

09160-12011

$1.54

40

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

41

SHAFT, GEAR SHIFT LEVER

25617-20A00

$26.15

42

NUT, WHEEL SET | MODEL K/L/M/N/P/R This part replaces 08316-16108.

08316-10107

$2.39

42

NUT | MODEL S/T This part replaces 08316-10103.

08316-1010B

$2.66

43

BODY, GEAR SHIFTING SWITCH

37720-48B00

$58.92

44

GROMMET, LEAD WIRE

33885-27A01

$4.18

45

O RING (D:2.4,ID:36.2) | MODEL K/L/M/N/P/R

09280-36001

$3.29

45

O RING (D:2.4,ID:35.5) | MODEL S/T

09280-35006

$3.04

46

SCREW | MODEL K/L/M/N/P This part replaces 09138-05003.

09138-05011

$2.23

46

SCREW | MODEL R/S/T This part replaces 02112-75163.

02112-7516A

$2.41

47

CONTACT

09209-05011

$2.20

48

SPRING

09440-04010

$1.54
