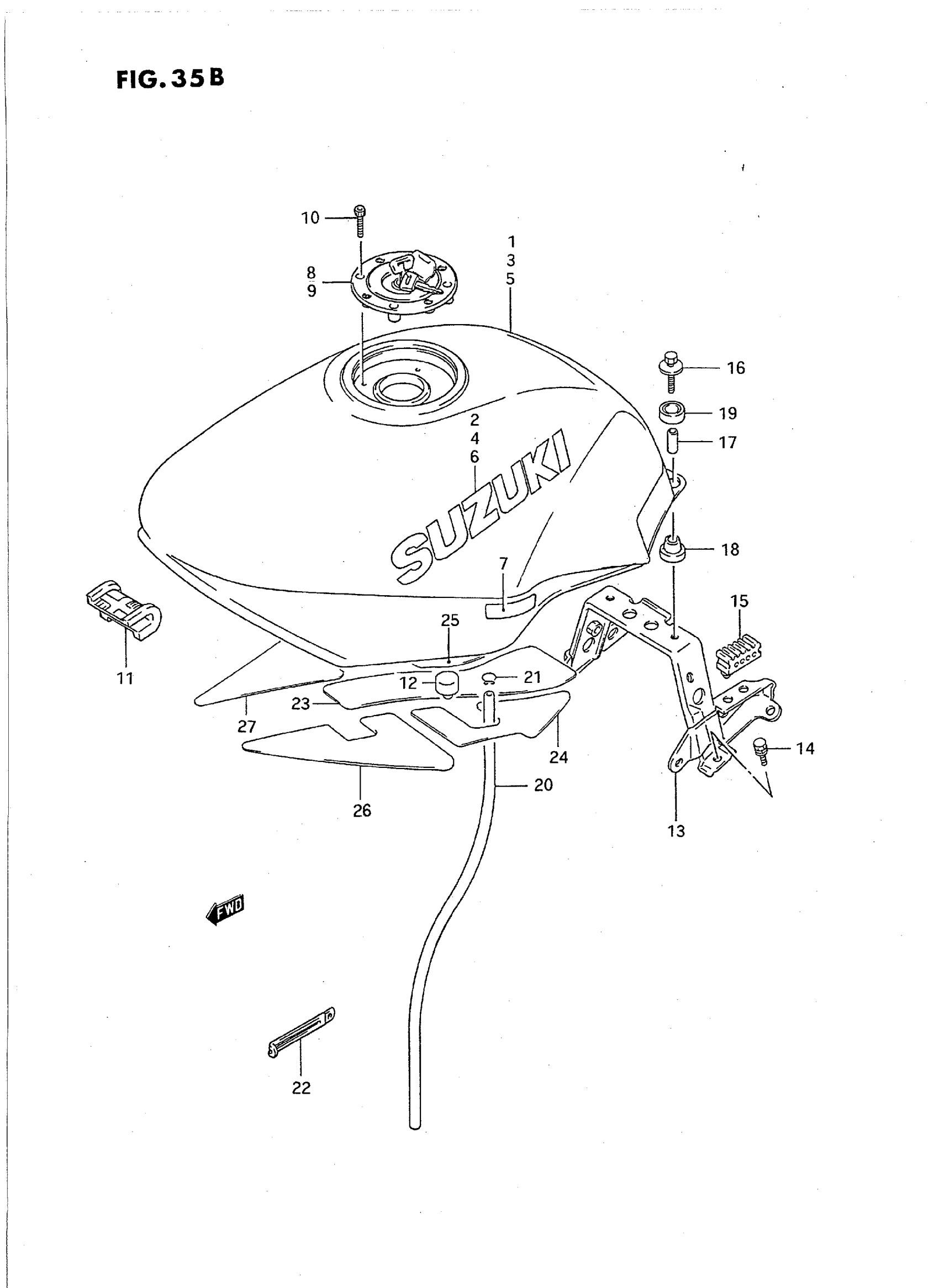

Suzuki GSX750FT (1996) FUEL TANK (MODEL P/R/S/T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 44100-43C30-1LE.

44100-43C31-1LE

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P CALIFORNIA ONLY This part replaces 44100-43C60-1LE.

44100-43C61-1LE

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 44100-43C30-36X.

44100-43C31-36X

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P CALIFORNIA ONLY; Includes Item(s) 2 - 2 This part replaces 44100-43C60-36X.

44110-19C11-YD8

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL P FOR 1LE This part replaces 68111-12C00-14B.

68111-12C30-14B

Unavailable

2

EMBLEM (PURPLE) | MODEL P FOR 36X

68111-12C00-1AP

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44100-21CE0-33J.

44100-21CF1-33J

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL R CALIFORNIA ONLY This part replaces 44100-21CG0-33J.

44100-21CG1-33J

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 44100-21CF0-1SX.

44100-21CF1-1SX

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 44100-21CF0-2JX.

44100-21CF1-2JX

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL S CALIFORNIA ONLY This part replaces 44100-21CG0-19A.

44100-21CG1-19A

Unavailable

3

TANK ASSY,FUEL | MODEL S CALIFORNIA ONLY; Includes Item(s) 4 - 4 This part replaces 44100-21CG0-2JX.

44100-21CG1-2JX

Unavailable

4

EMBLEM | MODEL R FOR 33J

68111-01D20-C2T

Unavailable

4

EMBLEM | MODEL S FOR 1SX,19A

68111-01D20-D4N

Unavailable

4

EMBLEM | MODEL S FOR 2JX

68111-01D20-D4M

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 44100-43C30-Y98.

44110-19C22-YD8

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 44100-43C30-33J.

44100-43C31-33J

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL T CALIFORNIA ONLY This part replaces 44100-43C60-Y98.

44100-43C61-Y98

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL T CALIFORNIA ONLY; Includes Item(s) 6 This part replaces 44100-43C60-33J.

44110-19C11-YD8

Unavailable

6

EMBLEM | MODEL T This part replaces 68111-12C00-17U.

68111-12C30-17U

Unavailable

7

PROTECTOR, FUEL TANK RH | MODEL P

44283-19C00

Unavailable

7

PROTECTOR, FUEL TANK LH | MODEL P

44293-19C00

Unavailable

7

PROTECTOR, FUEL TANK | MODEL R/S/T

32851-10D00

$5.05

8

CAP SET,FUEL TA | MODEL P/R This part replaces 44201-01831.

44201-01833

Unavailable

8

CAP SET,FUEL TA | MODEL S/T This part replaces 44201-01832.

44201-01833

Unavailable

9

CAP SET, FUEL | MODEL P/R CALIFORNIA ONLY This part replaces 44201-01841.

44201-01842

Unavailable

9

CAP SET, FUEL TANK | MODEL S/T CALIFORNIA ONLY

44201-01842

Unavailable

10

BOLT

09106-05017

$2.83

11

CUSHION, FUEL TANK FRONT

44511-19C00

Unavailable

12

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

13

BRACKET, REAR

44550-19C00

Unavailable

14

BOLT This part replaces 09137-06017.

01570-0620A

$2.19

15

CUSHION, FUEL TANK SIDE REAR

45149-31300

$3.56

16

BOLT (6X30) | MODEL P/R This part replaces 09116-06078.

09116-06172

$2.50

16

BOLT, REAR | MODEL S/T

09116-06172

$2.50

17

SPACER This part replaces 09180-06072.

09180-06271

$2.35

18

CUSHION, REAR LOWER

09320-10038

$2.61

19

CUSHION, REAR UPPER

09320-14017

$2.35

20

HOSE, WATER DRAIN

44423-19C00

Unavailable

21

CLIP

09401-08401

$1.54

22

CLAMP

09404-08420

$3.16

23

HEAT SHIELD, CENTER | CALIFORNIA ONLY

49131-20C00

Unavailable

24

HEAT SHIELD, REAR LH | CALIFORNIA ONLY

49132-20C00

Unavailable

25

HEAT SHIELD, REAR RH | CALIFORNIA ONLY

49133-20C00

Unavailable

26

HEAT SHIELD, FRONT LH | CALIFORNIA ONLY

49134-20C00

Unavailable

27

HEAT SHIELD, FRONT RH | CALIFORNIA ONLY

49135-20C00

Unavailable
