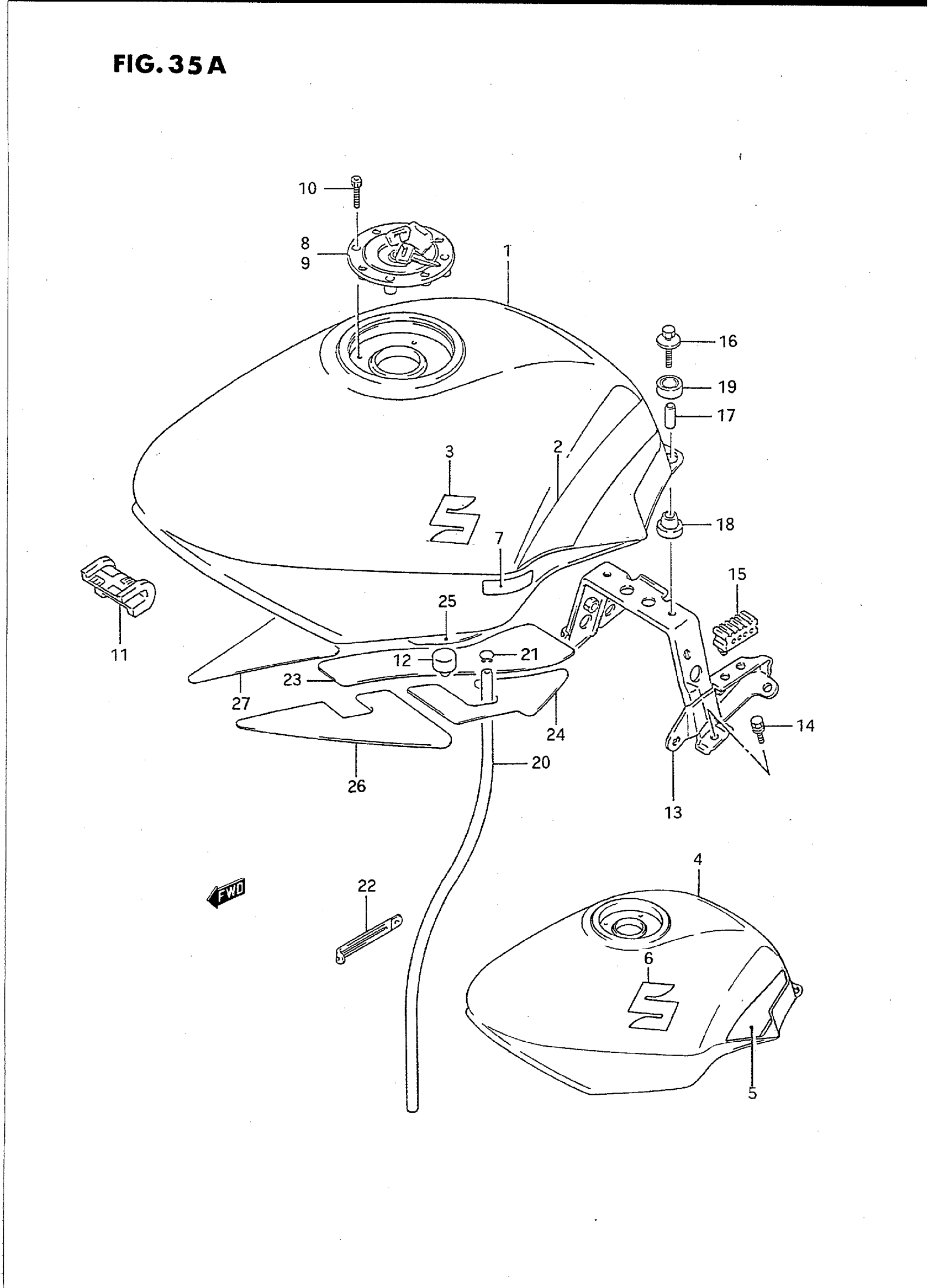

Suzuki GSX750FT (1996) FUEL TANK (MODEL M/N) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-21C30-28V.

44110-19C22-YD8

Unavailable

1

TANK ASSY, FUEL (RED) | CALIFORNIA ONLY,MODEL M

44100-21C20-28V

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-21C30-33J.

44110-19C22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL M; Includes Item(s) 2 - 3 This part replaces 44100-21C20-33J.

44110-19C11-YD8

Unavailable

2

TAPE SET, FUEL TANK | MODEL M FOR 28V

68115-20C10-0ZA

Unavailable

2

TAPE SET, FUEL TANK | MODEL M FOR 33J

68115-20C10-0YZ

Unavailable

3

EMBLEM | MODEL M FOR 28V

68111-20C00-0ZA

Unavailable

3

EMBLEM | MODEL M FOR 33J

68111-20C00-0YZ

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-21C70-12F.

44100-21C71-12F

Unavailable

4

TANK ASSY, FUEL (BLUE) | CALIFORNIA ONLY,MODEL N

44100-21C80-12F

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-21C70-1MW.

44110-19C22-YD8

Unavailable

4

TANK ASSY, FUEL (RED) | CALIFORNIA ONLY,MODEL N; Includes Item(s) 5 - 6

44100-21C80-1MW

Unavailable

5

TAPE SET, FUEL TANK | MODEL N FOR 12F

68110-20C21-K51

Unavailable

5

TAPE SET, FUEL TANK | MODEL N FOR 1MW

68110-20C21-K49

Unavailable

6

EMBLEM (SILVER) | MODEL N This part replaces 68111-19C10-0FP.

68111-19C10-13L

Unavailable

7

PROTECTOR, FUEL TANK RH

44283-19C00

Unavailable

7

PROTECTOR, FUEL TANK LH

44293-19C00

Unavailable

8

CAP SET,FUEL TA This part replaces 44201-01831.

44201-01833

Unavailable

9

CAP SET, FUEL | CALIFORNIA ONLY This part replaces 44201-01841.

44201-01842

Unavailable

10

BOLT

09106-05017

$2.83

11

CUSHION, FUEL TANK FRONT

44511-19C00

Unavailable

12

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

13

BRACKET, REAR

44550-19C00

Unavailable

14

BOLT This part replaces 09137-06017.

01570-0620A

$2.19

15

CUSHION, FUEL TANK SIDE REAR

45149-31300

$3.56

16

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

17

SPACER This part replaces 09180-06072.

09180-06271

$2.35

18

CUSHION, REAR LOWER

09320-10038

$2.61

19

CUSHION, REAR UPPER

09320-14017

$2.35

20

HOSE, WATER DRAIN

44423-19C00

Unavailable

21

CLIP

09401-08402

$1.49

22

CLAMP

09404-08420

$3.16

23

HEAT SHIELD, CENTER | CALIFORNIA ONLY

49131-20C00

Unavailable

24

HEAT SHIELD, REAR LH | CALIFORNIA ONLY

49132-20C00

Unavailable

25

HEAT SHIELD, REAR RH | CALIFORNIA ONLY

49133-20C00

Unavailable

26

HEAT SHIELD, FRONT LH | CALIFORNIA ONLY

49134-20C00

Unavailable

27

HEAT SHIELD, FRONT RH | CALIFORNIA ONLY

49135-20C00

Unavailable

28

REFER TO FIG.35B (F-10) FOR

SPECIAL NOTE

Unavailable
