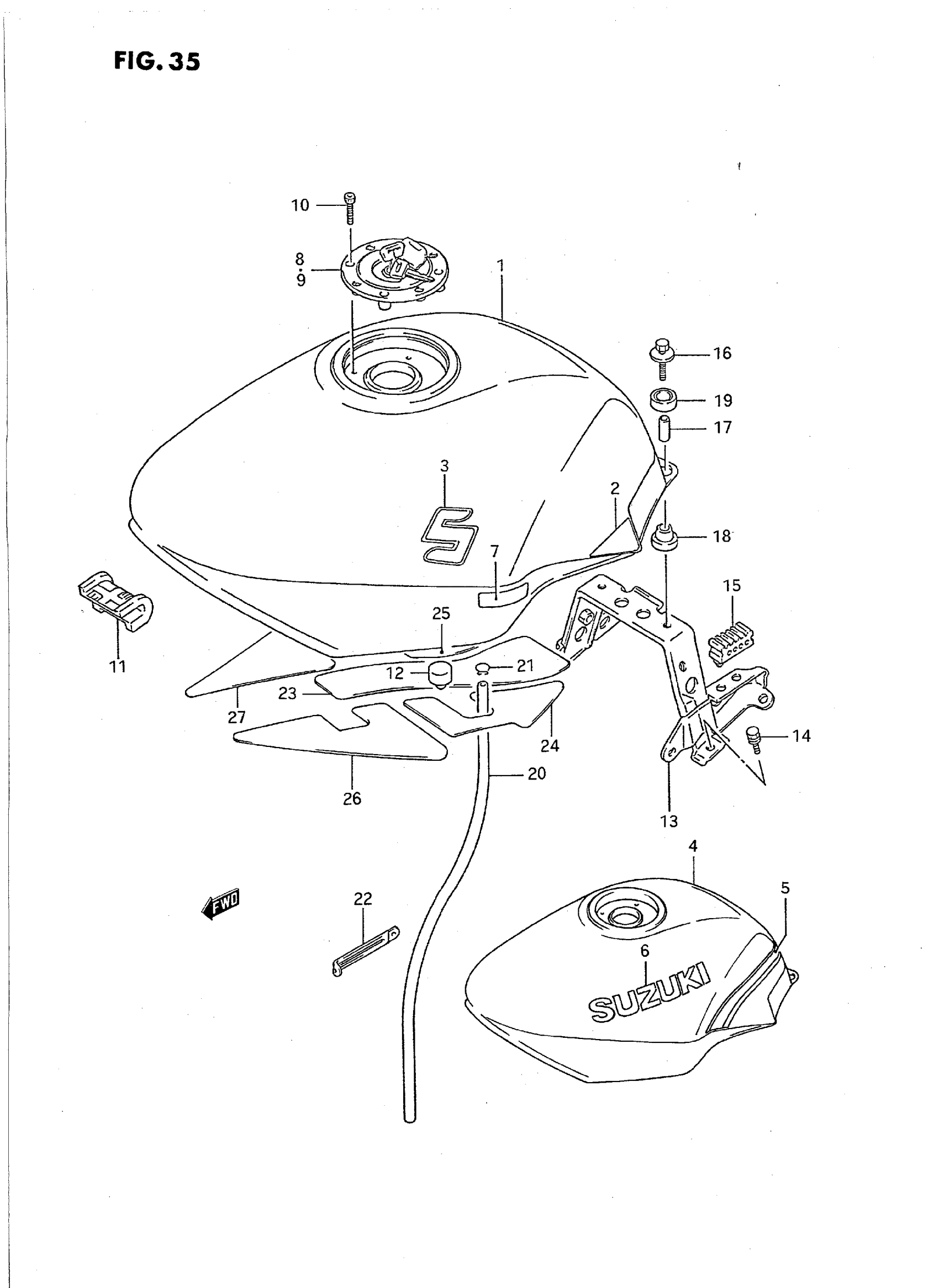

Suzuki GSX750FT (1996) FUEL TANK (MODEL K/L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 44100-20C10-24V.

44110-19C22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL K This part replaces 44100-20C30-24V.

44110-19C11-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 44100-20C10-0FP.

44110-19C22-YD8

Unavailable

1

TANK ASSY, FUEL (SILVER) | CALIFORNIA ONLY, MODEL K; Includes Item(s) 2 - 3

44100-20C30-0FP

Unavailable

2

TAPE SET, FUEL (SILVER) | MODEL K,FOR 24V

68110-20C00-13L

Unavailable

2

TAPE SET, FUEL (BLACK) | MODEL K,FOR 0FP

68110-20C00-019

Unavailable

3

EMBLEM (SILVER) | MODEL K,FOR 24V

68111-19C00-742

Unavailable

3

EMBLEM (BLACK) | MODEL K,FOR 0FP

68111-19C00-019

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 44100-20C40-3CH.

44110-19C22-YD8

Unavailable

4

TANK ASSY, FUEL | CALIFORNIA ONLY, MODEL L

44100-20C70-3CH

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 44100-20C40-3WC.

44110-19C22-YD8

Unavailable

4

TANK ASSY, FUEL | CALIFORNIA ONLY, MODEL L; Includes Item(s) 5 - 6

44100-20C70-3WC

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL L,FOR 3CH This part replaces 68115-20C00-3CG.

68115-20C01-3CG

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL L,FOR 3WC This part replaces 68115-20C00-3VV.

68115-20C01-3VV

Unavailable

6

EMBLEM | MODEL L,FOR 3CH This part replaces 68111-43400-742.

68111-43400-13L

Unavailable

6

EMBLEM (GRAY) | MODEL L,FOR 3WC

68111-43400-17U

Unavailable

7

PROTECTOR, FUEL TANK RH

44283-19C00

Unavailable

7

PROTECTOR, FUEL TANK LH

44293-19C00

Unavailable

8

CAP SET,FUEL TA | MODEL K This part replaces 44200-19C00-KEY.

44201-01833

Unavailable

8

CAP SET,FUEL TA | MODEL L This part replaces 44201-01830.

44201-01833

Unavailable

9

CAP SET, FUEL | CALIFORNIA ONLY, MODEL K This part replaces 44200-19C10-KEY.

44201-01842

Unavailable

9

CAP SET, FUEL | CALIFORNIA ONLY, MODEL L This part replaces 44201-01840.

44201-01842

Unavailable

10

BOLT

09106-05017

$2.83

11

CUSHION, FUEL TANK FRONT

44511-19C00

Unavailable

12

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

13

BRACKET, REAR

44550-19C00

Unavailable

14

BOLT This part replaces 09137-06017.

01570-0620A

$2.19

15

CUSHION, FUEL TANK SIDE REAR

45149-31300

$3.56

16

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

17

SPACER This part replaces 09180-06072.

09180-06271

$2.35

18

CUSHION, REAR LOWER

09320-10038

$2.61

19

CUSHION, REAR UPPER

09320-14017

$2.35

20

HOSE, WATER DRAIN

44423-19C00

Unavailable

21

CLIP

09401-08402

$1.49

22

CLAMP

09404-08420

$3.16

23

HEAT SHIELD, CENTER | CALIFORNIA ONLY

49131-20C00

Unavailable

24

HEAT SHIELD, REAR LH | CALIFORNIA ONLY

49132-20C00

Unavailable

25

HEAT SHIELD, REAR RH | CALIFORNIA ONLY

49133-20C00

Unavailable

26

HEAT SHIELD, FRONT LH | CALIFORNIA ONLY

49134-20C00

Unavailable

27

HEAT SHIELD, FRONT RH | CALIFORNIA ONLY

49135-20C00

Unavailable

28

COLOR : 3CH = 33J(BRACK),

SPECIAL NOTE

Unavailable
